Using ProSoft Configuration Builder PLX3x Series ♦ Multi-Protocol Gateways
User Manual
Page 24 of 215 ProSoft Technology, Inc.
January 25, 2018
2 Click any parameter in the Edit - WATTCP dialog box to change the value. If
your gateway has two Ethernet ports (PLX32) there are separate
configuration options for each port.
Unique IP address assigned to the module
Note: Each Ethernet port must be on a different Ethernet subnet.

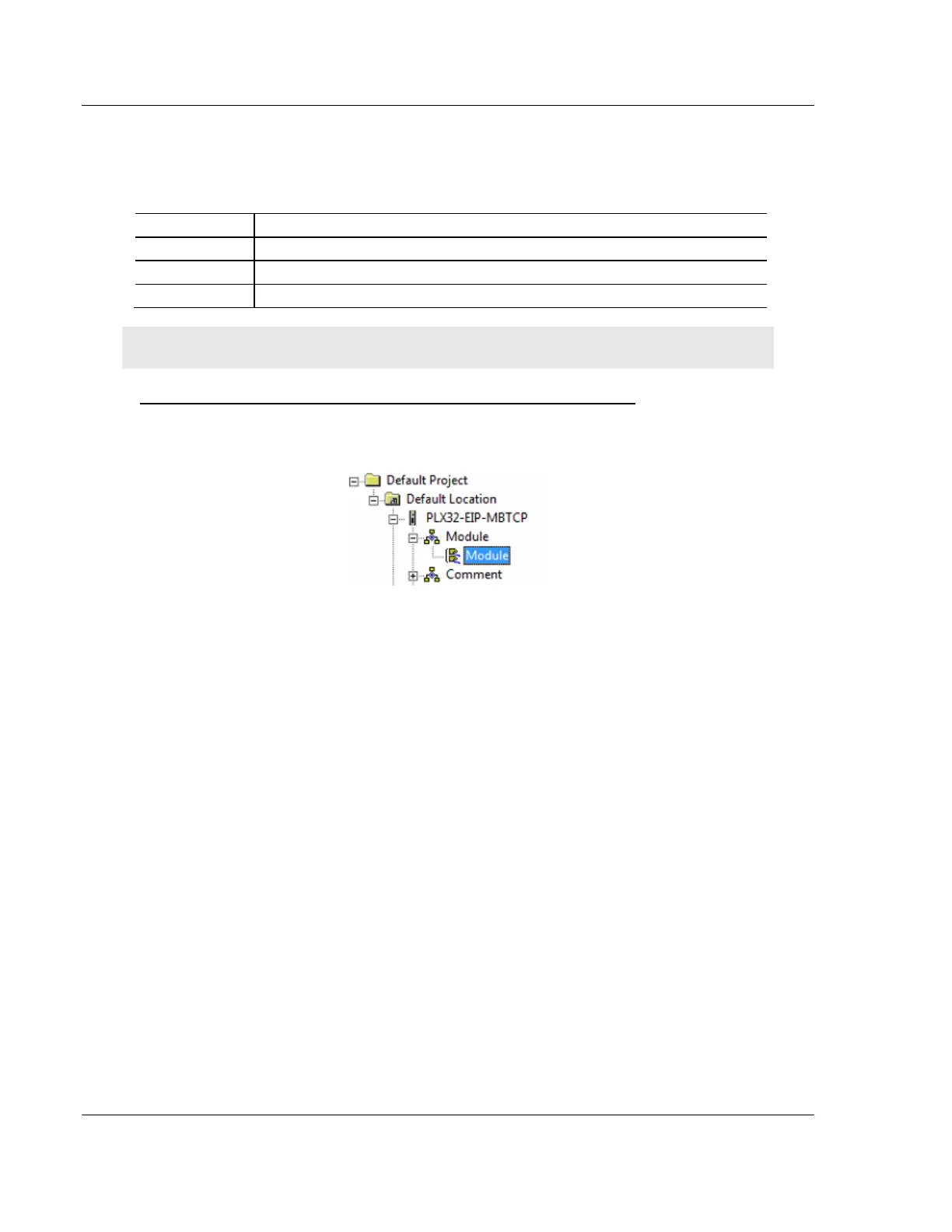

To determine the protocol for an Ethernet port in PCB (PLX32 only)
1 In ProSoft Configuration Builder, click the [+] next to the gateway, then click
the [+] next to Module.
2 Double-click the second Module icon.
3 In the Edit - Module dialog box, click the port to see the protocol for that port.
You cannot change the protocol assigned to a port.
2.7 Mapping Data in Module Memory
Use the DATA MAP section in the ProSoft Configuration Builder to copy data
between areas in the gateway's internal database. This allows you to copy data
to different addresses within the gateway database in order to create simpler
data requests and control. You can use this feature for the following tasks.
Copy a maximum of 100 registers per Data Map command, and you can
configure a maximum of 200 separate copy commands.
Copy data from the error or status tables in upper memory to internal
database registers in the user data area.
Rearrange the byte and/or word order during the copy process. For example,
by rearranging byte or word order, you can convert floating-point values to
the correct format for a different protocol.
Use the Data Map to condense widely dispersed data into one contiguous
data block, making it easier to access.
