PLX3x Series ♦ Multi-Protocol Gateways Using ProSoft Configuration Builder
User Manual
ProSoft Technology, Inc. Page 25 of 215
January 25, 2018

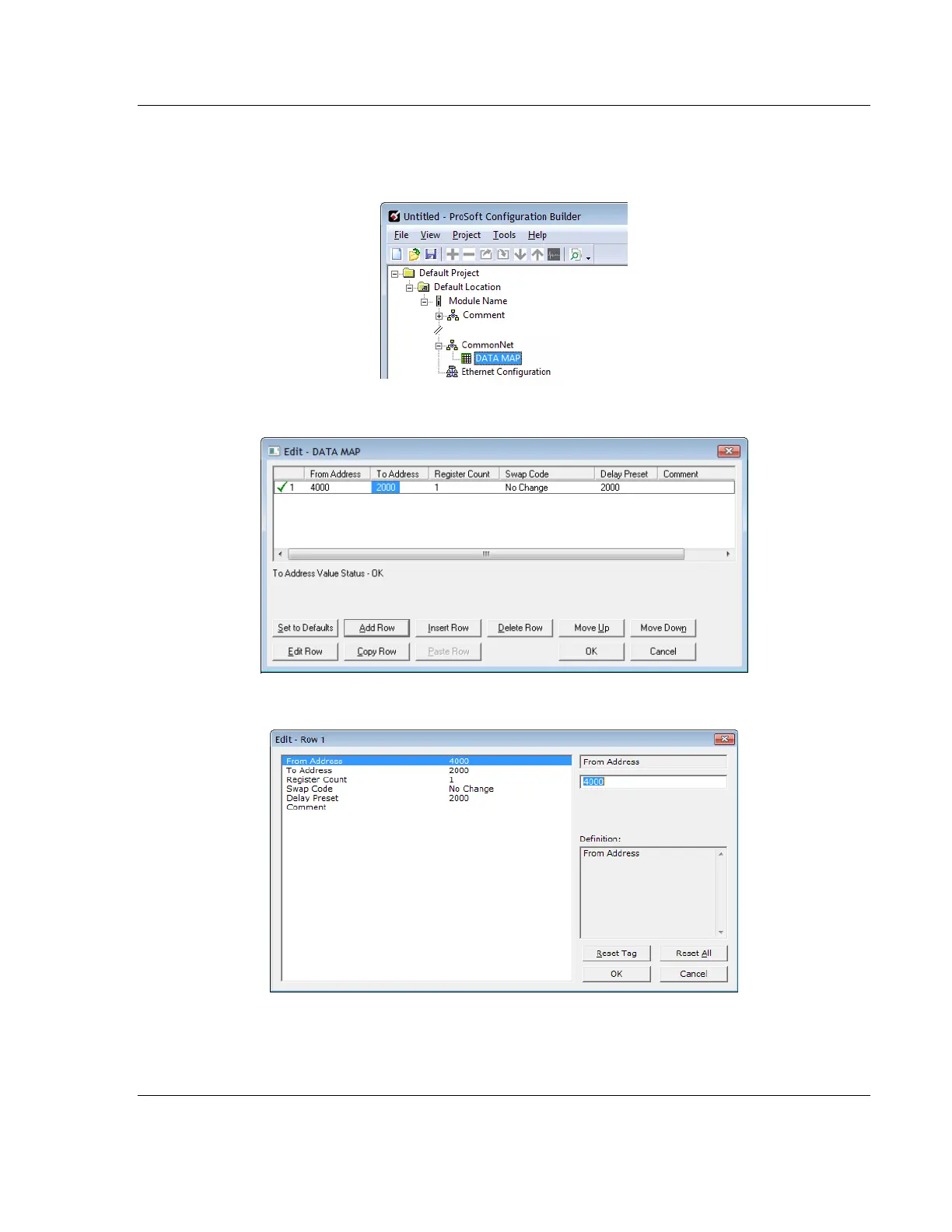

1 In the ProSoft Configuration Builder, expand the module tree by clicking the
[+] next to the module name.
2 Click the [+] next to COMMONNET, and then double-click DATA MAP.
3 In the Edit - Data Map dialog box, click ADD ROW.
4 Click EDIT ROW to edit the parameters for the mapping.
5 To change the value of a parameter, click the parameter and enter a new
value. Click OK when finished.
6 Repeat the steps above to add more memory mappings.
