PLX3x Series ♦ Multi-Protocol Gateways PND Protocol
User Manual
ProSoft Technology, Inc. Page 185 of 215
January 25, 2018

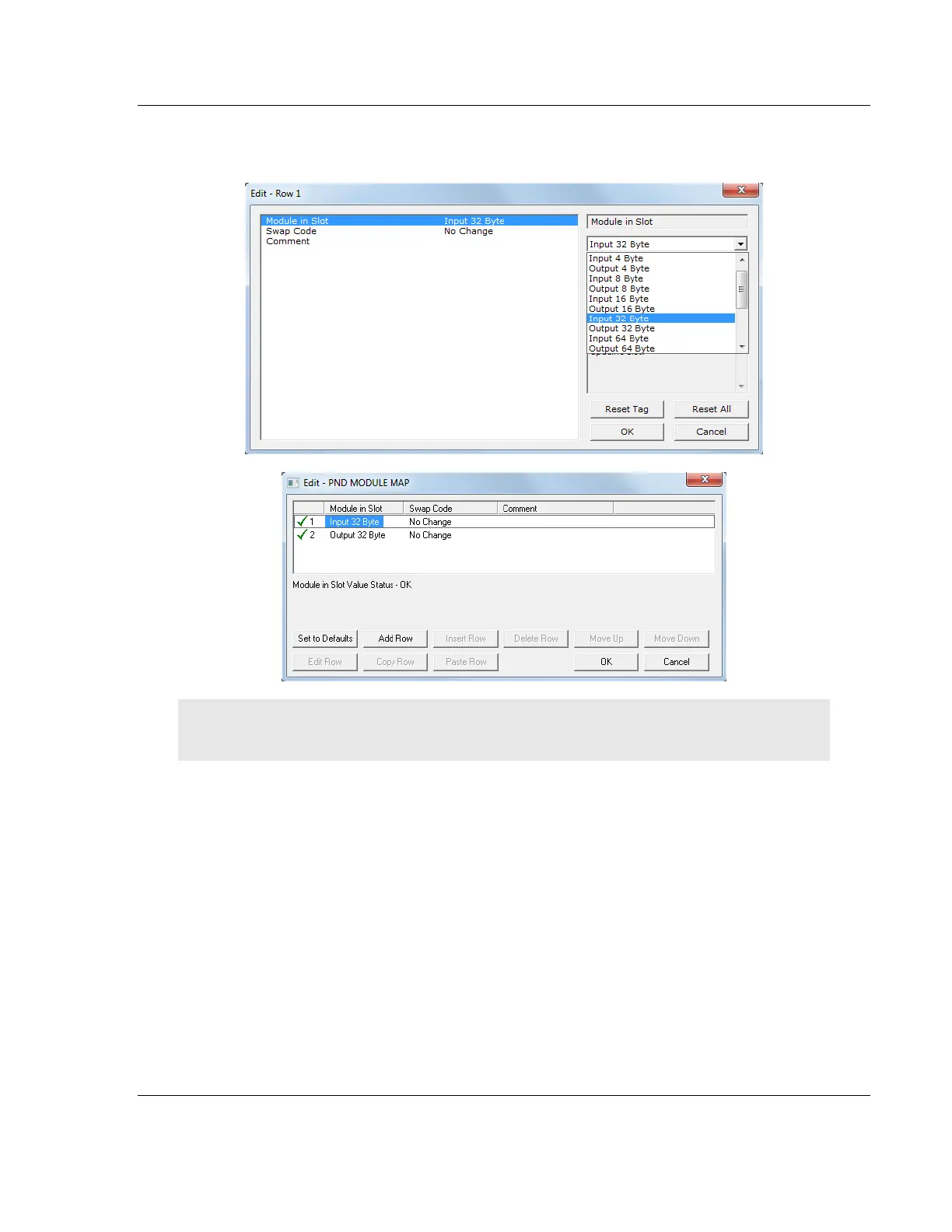

6 In the Module in Slot field, select the number of input or output bytes to be
used for each slot. This example uses 32-bytes input and 32-bytes output.
Note: The PND module map is very important because the values enter here must match the
values that are entered in the Siemens processor in order for them to communicate correctly.
7 Click OK. You can now download the configuration to the module.
