MVI69E-MBS ♦ CompactLogix Platform Start Here
Modbus Serial Enhanced Communication Module User Manual
ProSoft Technology, Inc. Page 15 of 154
June 28, 2017

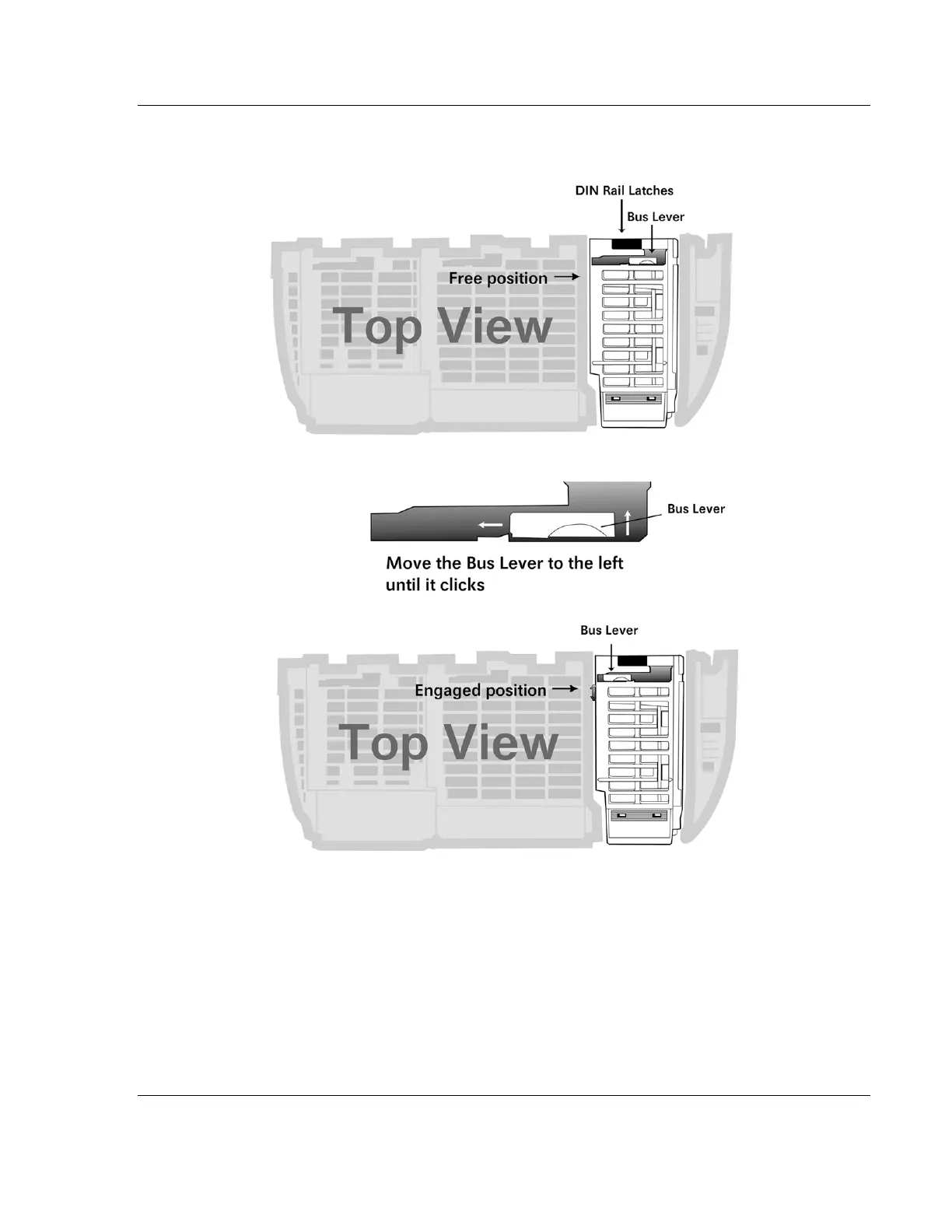

3 Push the module’s bus lever back slightly to clear the positioning tab and
move it firmly to the left until it clicks. Ensure that it is locked firmly in place.
4 Close all DIN-rail latches.
