Configuring the MVI69E-MBS Using PCB MVI69E-MBS ♦ CompactLogix Platform
User Manual Modbus Serial Enhanced Communication Module
Page 46 of 154 ProSoft Technology, Inc.
June 28, 2017

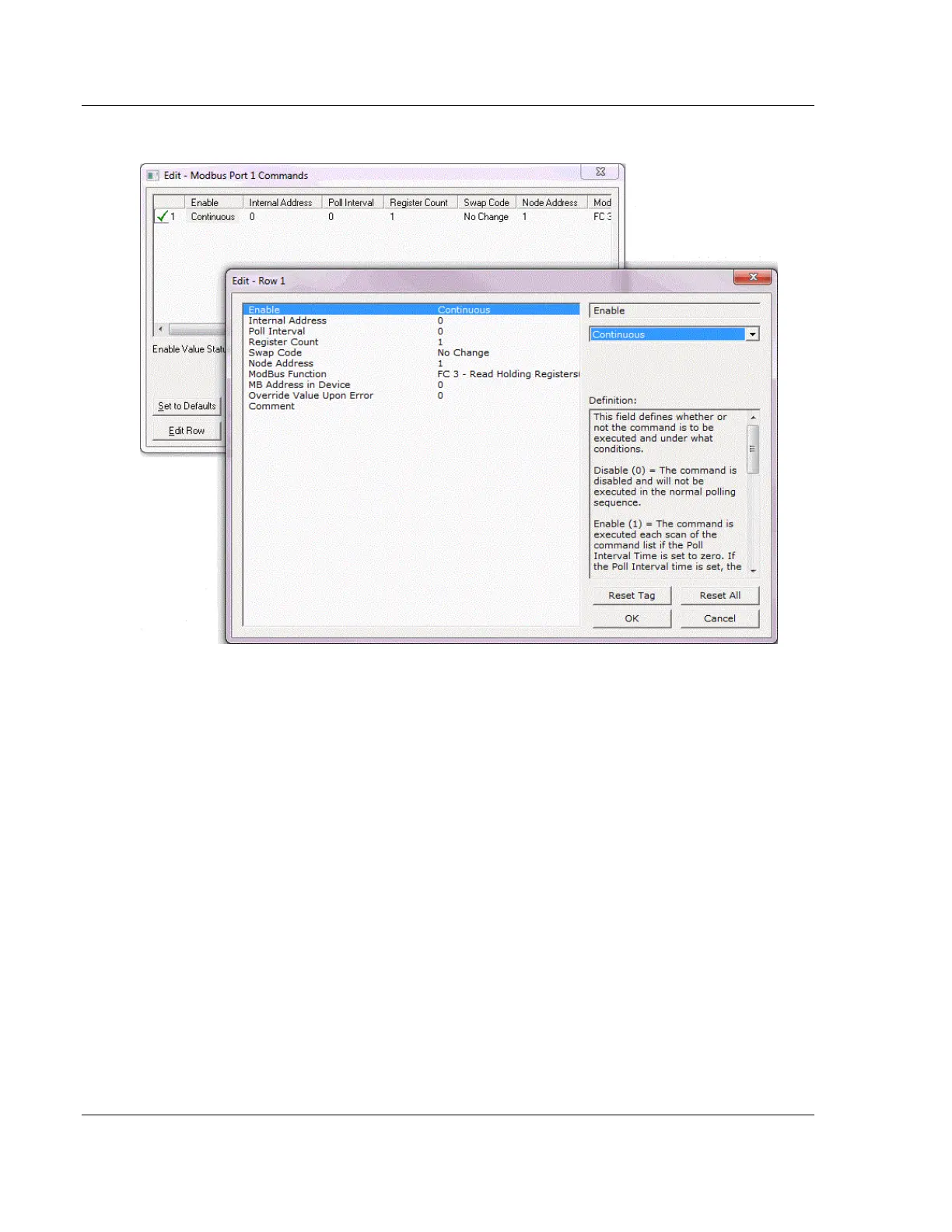

7 To edit the row, click EDIT ROW. This opens an Edit dialog box.
3.1.4 Printing a Configuration File
1 In the main PCB window, right-click the MVI69E-MBS icon and then choose
VIEW CONFIGURATION.
2 In the View Configuration dialog box, click the FILE menu and then click
PRINT.
3 In the Print dialog box, choose the printer to use from the drop-down list,
select the printing options, and then click OK.
