MVI69E-MBS ♦ CompactLogix Platform Diagnostics and Troubleshooting
Modbus Serial Enhanced Communication Module User Manual
ProSoft Technology, Inc. Page 95 of 154
June 28, 2017
6.4.1 Diagnostics Menu

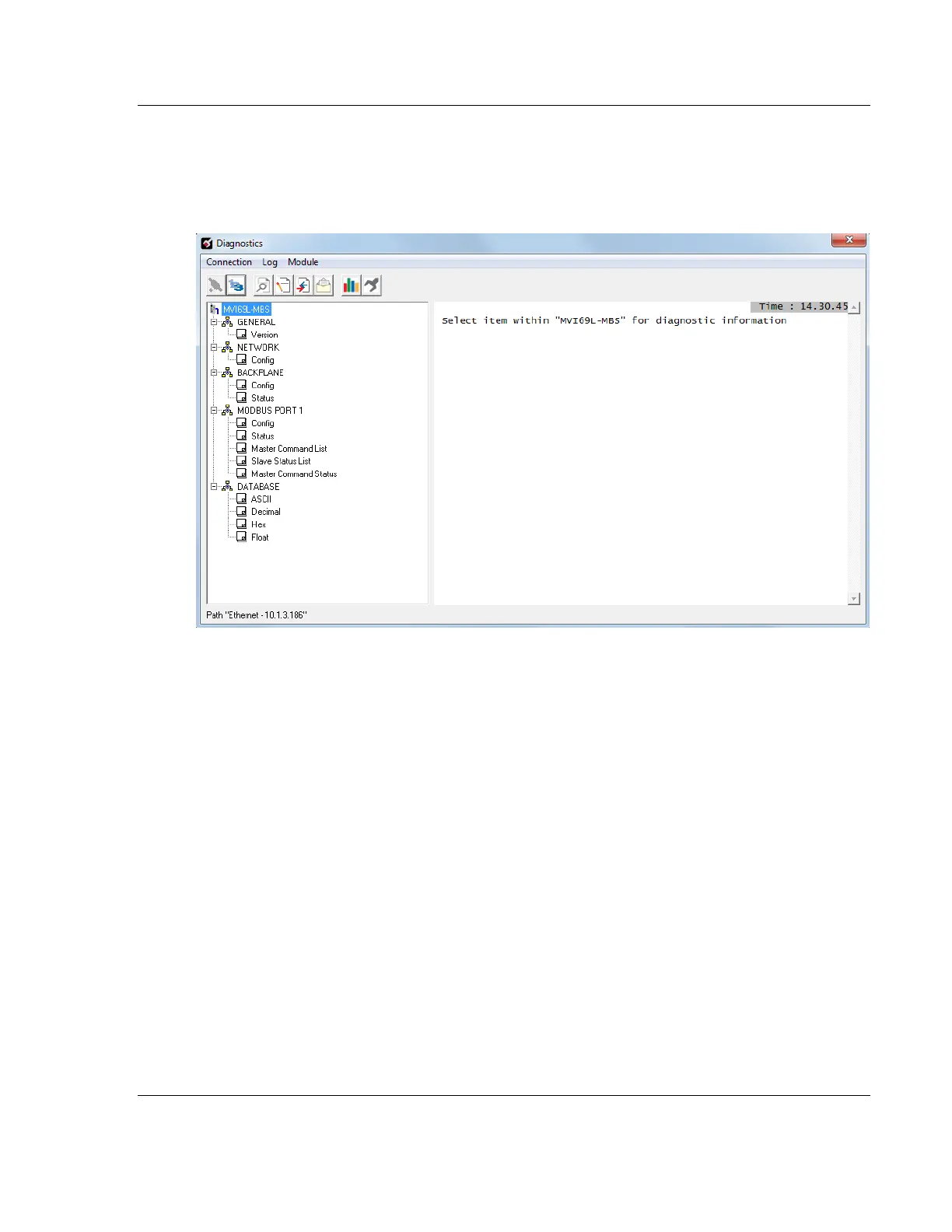

In the Diagnostics window in ProSoft Configuration Builder, the Diagnostics
menu is available through the Ethernet configuration port. The menu is arranged
as a tree structure.
