Diagnostics and Troubleshooting MVI69E-MBS ♦ CompactLogix Platform
User Manual Modbus Serial Enhanced Communication Module
Page 94 of 154 ProSoft Technology, Inc.
June 28, 2017

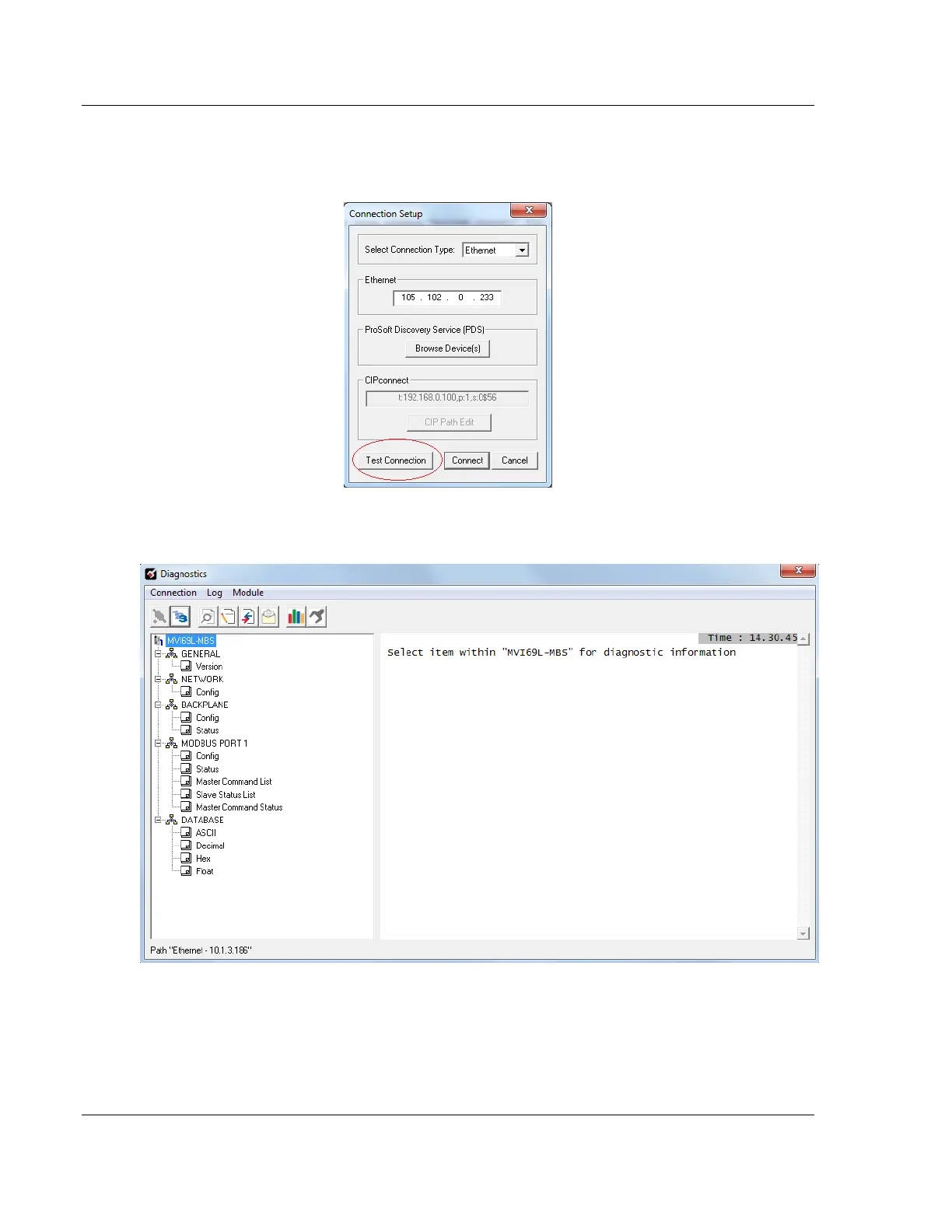

3 In the Ethernet field of the Connection Setup dialog box, enter the current IP
address, whether it is temporary or permanent. Click TEST CONNECTION to
verify that the module is accessible with the current settings.
4 If the TEST CONNECTION is successful, click CONNECT. The Diagnostics
window is now visible.
