MVI69E-MBS ♦ CompactLogix Platform Adding the Module to RSLogix
Modbus Serial Enhanced Communication Module User Manual
ProSoft Technology, Inc. Page 31 of 154
June 28, 2017
2.5 Importing the Add-On Instruction
1 Open the application in RSLogix 5000.
2 Expand the TASKS folder, and expand the MAINTASK folder.
3 Expand the MAINPROGRAM folder. The MAINROUTINE contains rungs of logic.
The very last rung in this routine is blank. This is where you can import the
Add-On Instruction.
Note: You can place the Add-On Instruction in a different routine than the MainRoutine. Make sure
to add a rung with a jump instruction (JSR) in the MainRoutine to jump to the routine containing the
Add-On Instruction.

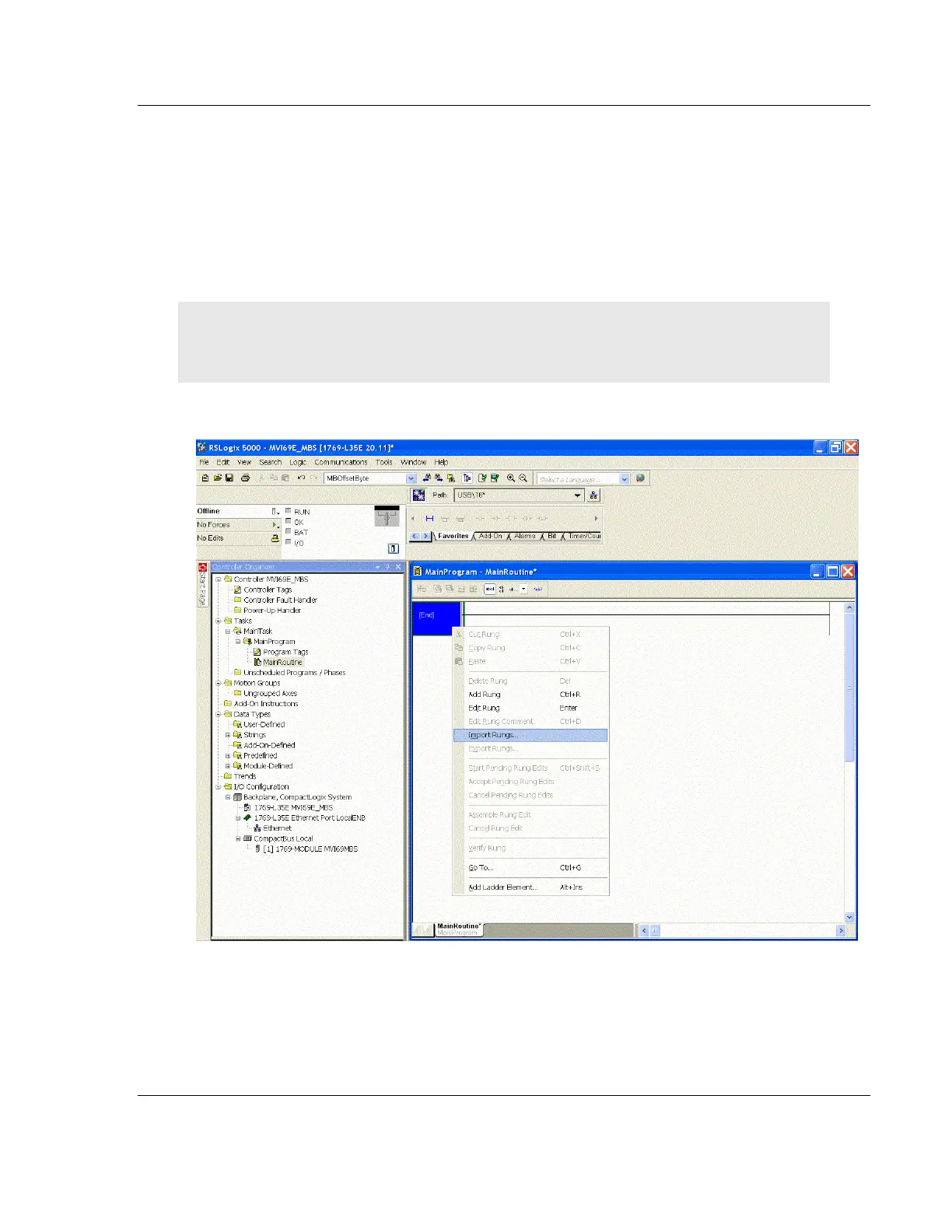

4 Right-click an empty rung in the routine and choose IMPORT RUNGS.
