Adding the Module to RSLogix MVI69E-MBS ♦ CompactLogix Platform
User Manual Modbus Serial Enhanced Communication Module
Page 32 of 154 ProSoft Technology, Inc.
June 28, 2017

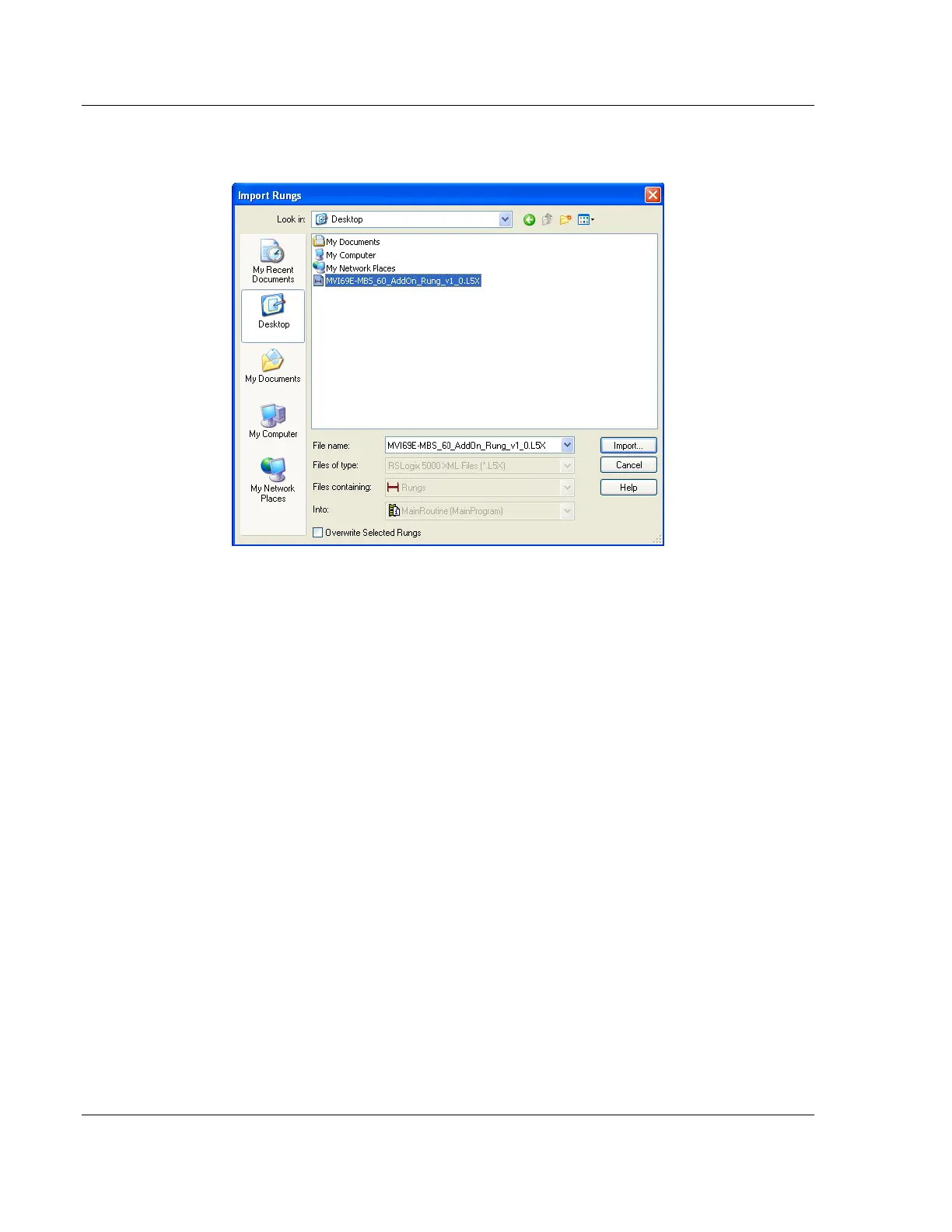

5 Select the .L5X file that you exported from PCB (Creating and Exporting the
.L5X File (page 28)).
This opens the Import Configuration dialog box. Click TAGS under
MAINROUTINE to display the controller tags in the Add-On Instruction.
