MVI69E-MBS ♦ CompactLogix Platform Adding the Module to RSLogix
Modbus Serial Enhanced Communication Module User Manual
ProSoft Technology, Inc. Page 21 of 154
June 28, 2017

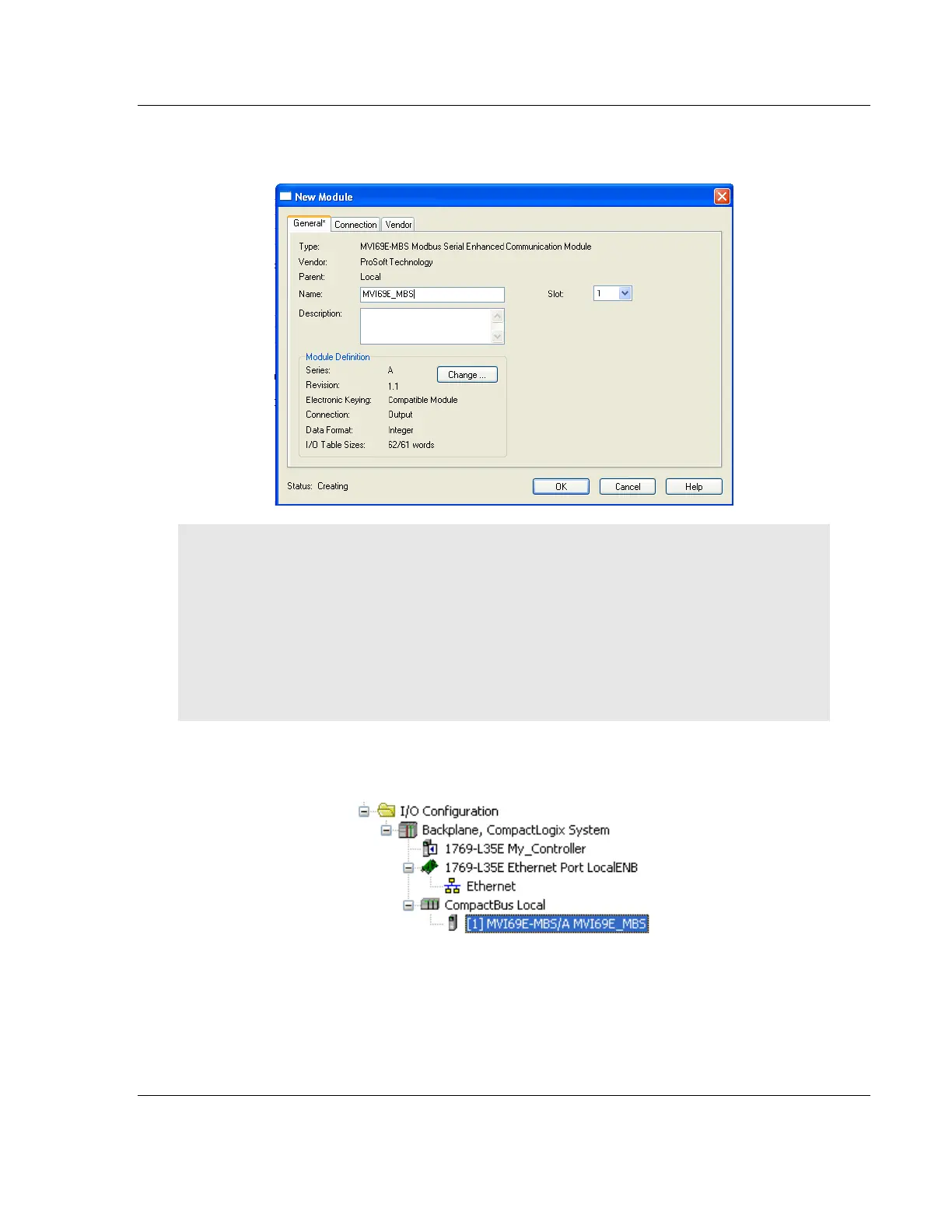

3 A New Module dialog box opens. Edit the NAME and SLOT for the module and
click OK.
Note : The I/O TABLE SIZES above should reflect the Block Transfer Size parameter set in PCB
(Section Module Configuration Parameters (page 47)).
A Block Transfer Size of 60 uses an I/O TABLE SIZE of 62/61 words.
A Block Transfer Size of 120 uses an I/O TABLE SIZE of 122/121 words.
A Block Transfer Size of 240 uses an I/O TABLE SIZE of 242/241 words.
Applications that require smaller amounts of data or faster update times, such as ControlNet
networks, will benefit from smaller block transfer sizes.
The MVI69E-MBS module is now visible in the I/O Configuration tree.
