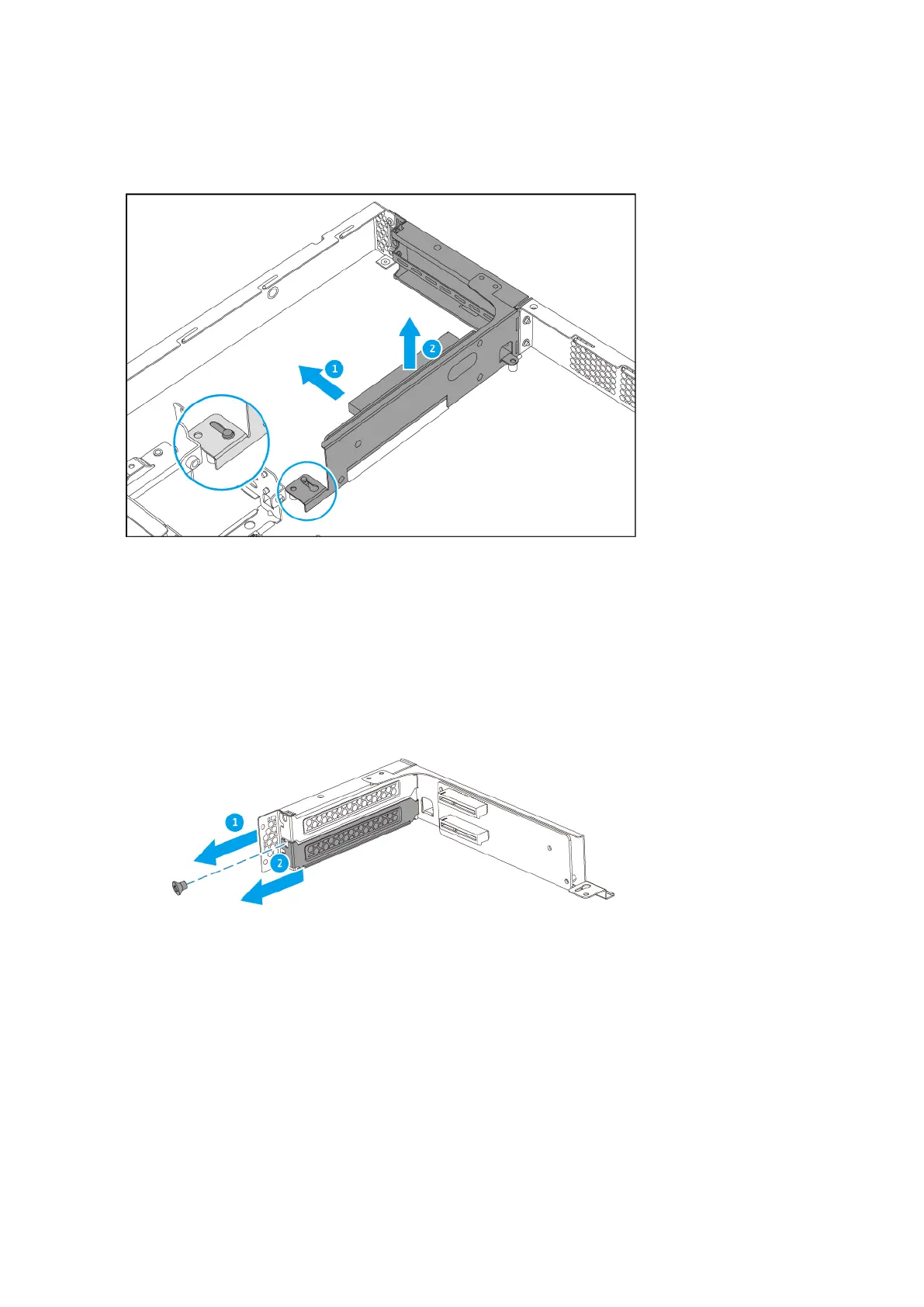

c. Slide the module to the right until it is completely detached from the system board.
d. Remove the module.
6. Remove the PCIe cover.
a. Remove the screw that secures the cover to the module.
b. Pull the cover away from the slot.
7. Install the expansion card.
a. Hold the card by the edges.
b. Insert the card into the slot.
c. Attach the screw.
QGD Rackmount Switch User Guide
Installation and Conguration 31
