4. Li

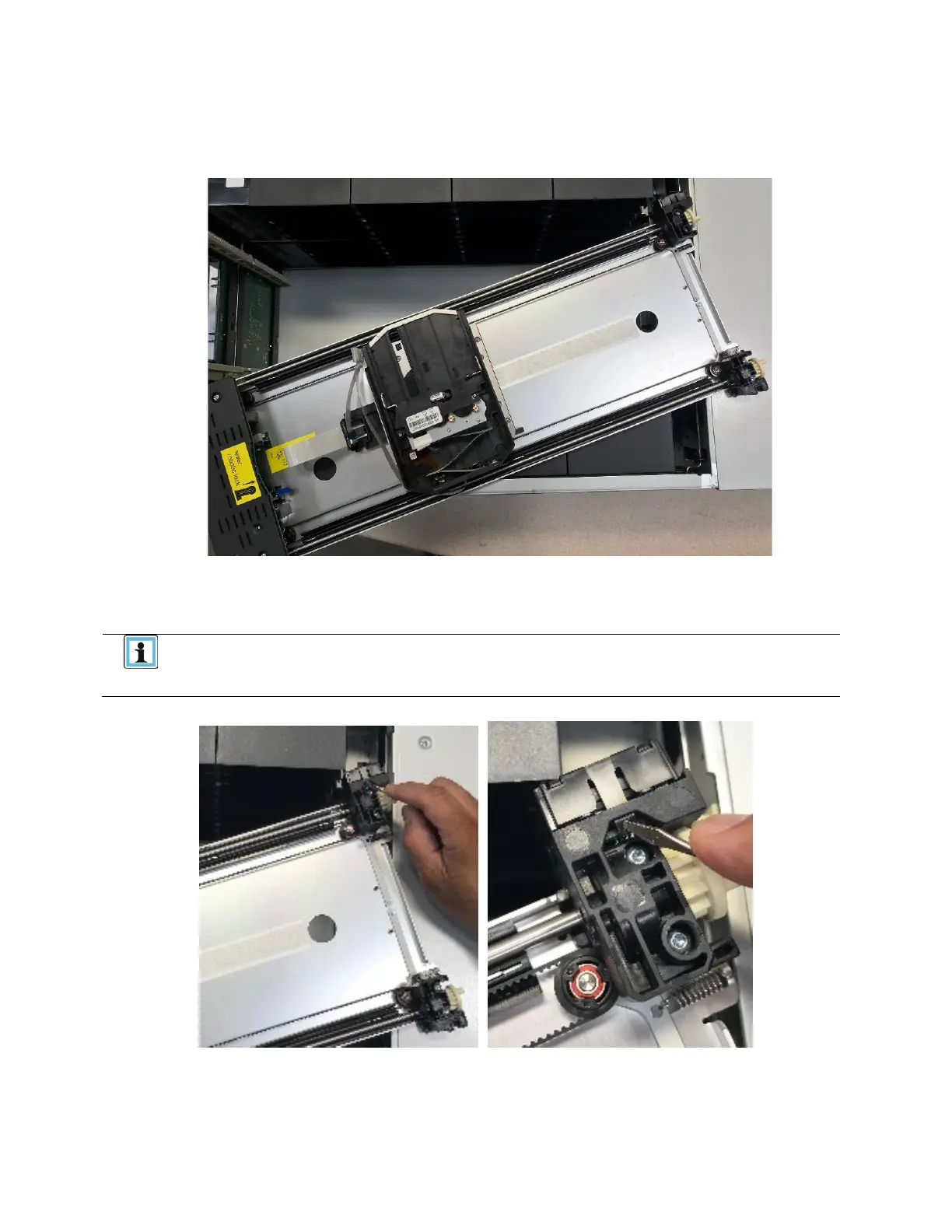

ft the robotic assembly gently from the module and place it on top of the module on the right si
de
(
opposite the spooling mechanism) and slightly to the front. Take care not to damage the spoolin
g
c
able.
5. O
n the top of the robotic assembly where the spooling cable is attached, use a small flat head or Torx
screwdriver driver to press and push the small latch that unlocks the spooling cable.
Note where the end of the spooling cable pivots in the robotic assembly. This is
important to know when you attach the new spooling cable to the robotic
assembly.
