45
18. COUNTING PIECES
To perform counting of the same details:
1. set appropriate options concerning counting pieces menu “Settings of
operating”
2. choose assortment from assortments base (after edition of data base)
18.1. Description of graphic display for Counting pieces mode

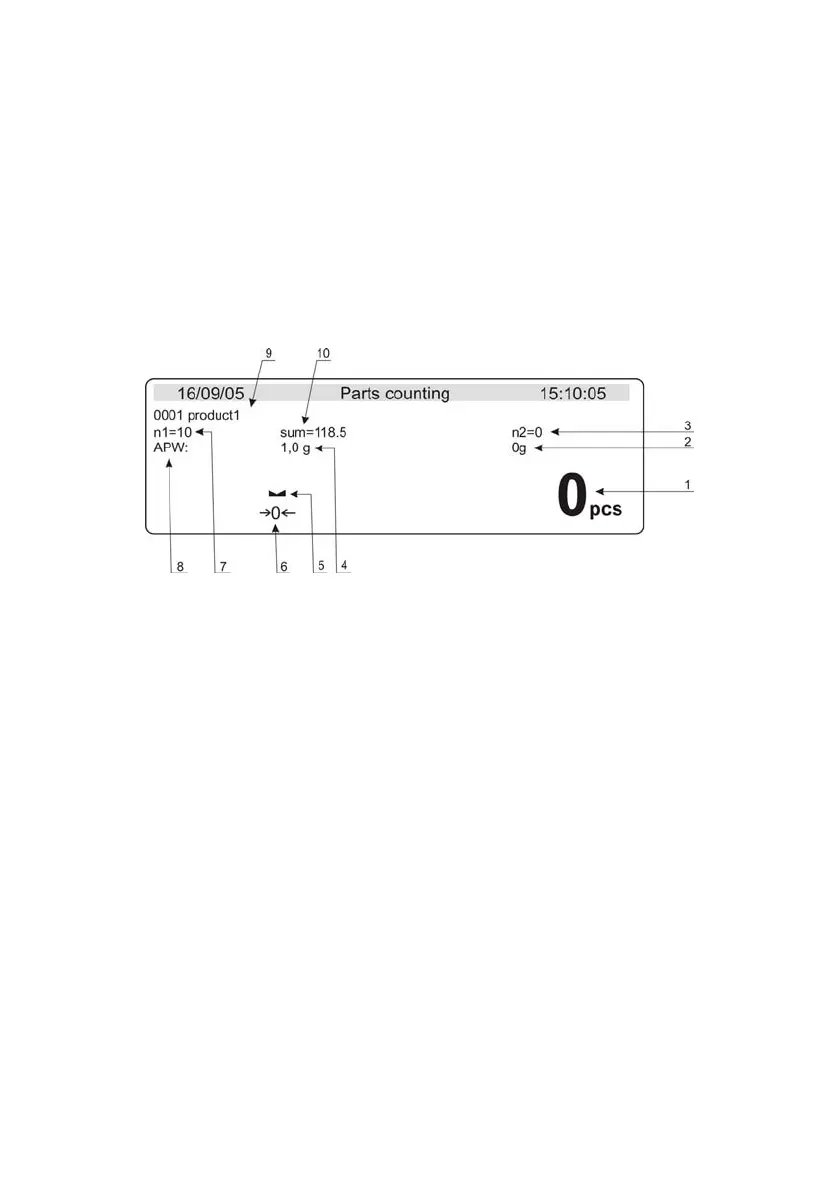

Fig. 28. Counting pieces – display view
1. displayed quantity of pieces on the pan
2. total mass of counted detail
3. cumulative labels counter (II line of display)
4. mass of single detail
5. symbol of stable result
6. symbol of stable zero
7. regular labels counter(II line of display)
8. marker of single detail mass
9. name of assortment chosen from assortments base
10 sum of counted pieces (II line of display)
To move from counting pieces mode to weighing press key on balance
keyboard Psc or on PC keyboard press key F3 and next choose Weighing
mode and press ENTER.
