9
5. BALANCE DESCRIPTION
5.1. Graphic display

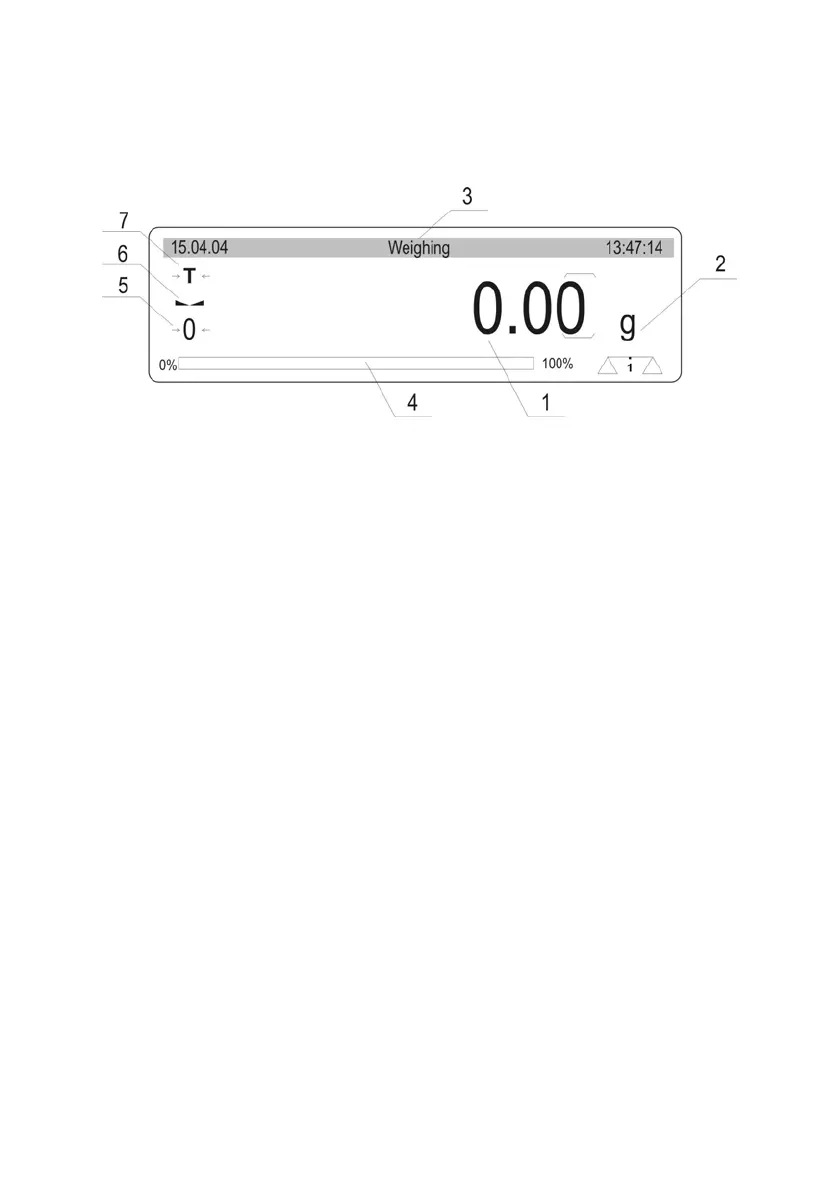

Fig. 3. Graphic display
1. displayed mass of currently weighed load
2. unit of mass
3. upper „bargraph” in which description of operating mode, date and time of
internal balance clock are displayed
4. lower „bargraph” in which part of mass from range of max capacity used
currently is displayed
5. symbol of precise zero
6. symbol indicating stable weighing result
7. symbol indicating weighing with tare
