R&S EB200 - 1 Data Sheet; 2 Preparation for Use; Installation; Fig. 2-1: Rear View

EB200 Manual Preparation for Use
4052.2000.02 2.1 E-7.1
2 Preparation for Use
2.1 Installation
OPTION
X 6
DC
OPTIONS
IFWB
AUX
X 8
REF
EXT / INT
AUDIO
X 7
ANT
10 ... 30
X 1
X 2
X 5
X 4
X 13
+
LINE
X 12
X10 BATTERY PACK
+
RS 232
X 9
RS 232
X 9
27 28 29 30 31
32
3334353637
OPTION
X 6
DC
OPTIONS
IFWB
AUX
X 8
REF
EXT / INT
AUDIO
X 7
ANT
10 ... 30
X 1
X 2
X 5
X 4
X 13
+
LINE
X 12
X10 BATTERY PACK
+
RS 232
X 9
RS 232
X 9
38
LAN INTERFACE EB200R4
LINK OK
X91
RECEIVE
ETHERNET
10BASE-T
40
39

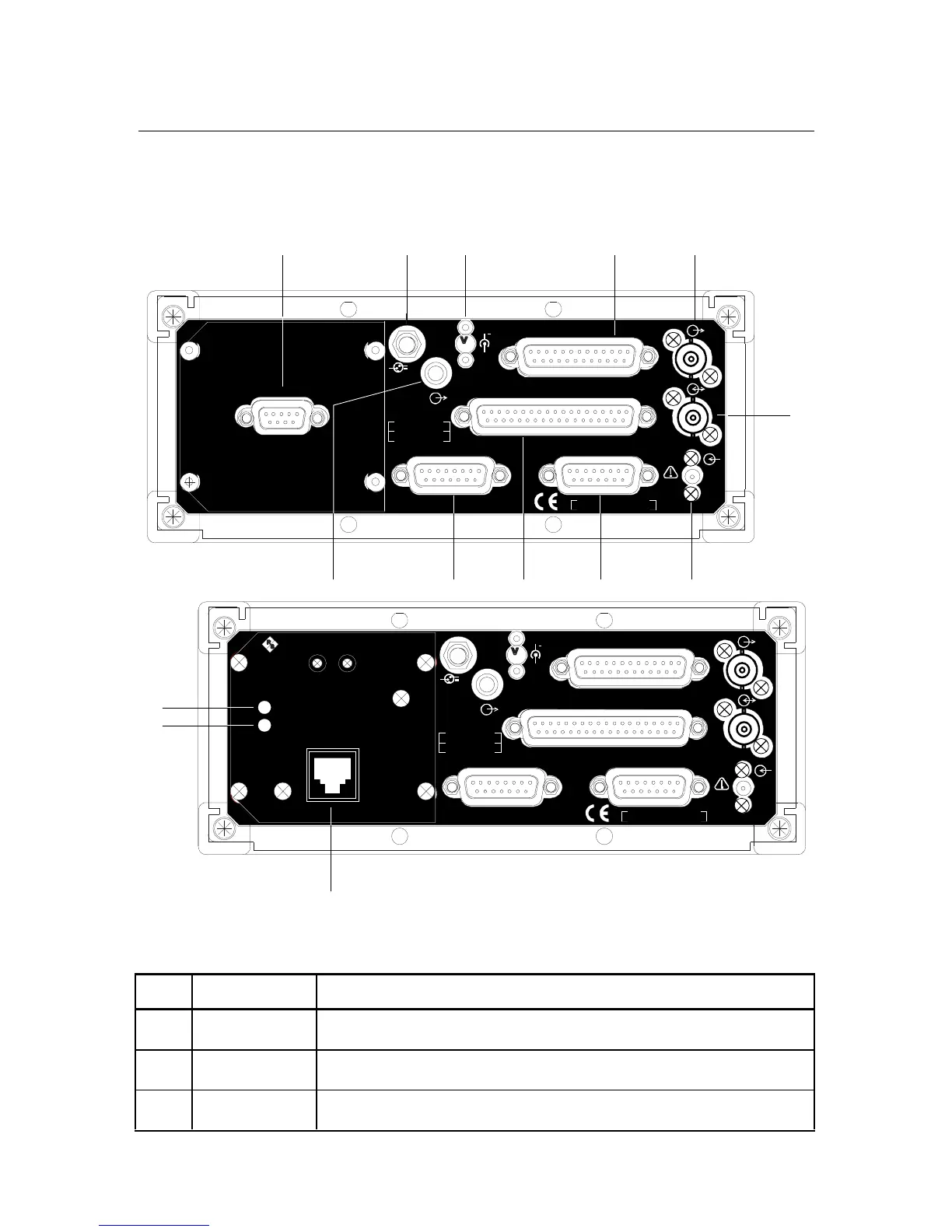

Fig. 2-1: Rear view
Item Designation Function
27 X9
RS 232
Connection for serial remote control RS-232
Sub-D connector, 9 pole
28 X2
DC 9 ... 30 V
Connection for battery belt
(plugged-on battery pack will not be charged)
29 X1
DC 9 ... 30 V
Connection for external DC power supply
(plugged-on battery pack will be charged)
