EB200 Manual Operation
4052.2000.02 3.49 E-7

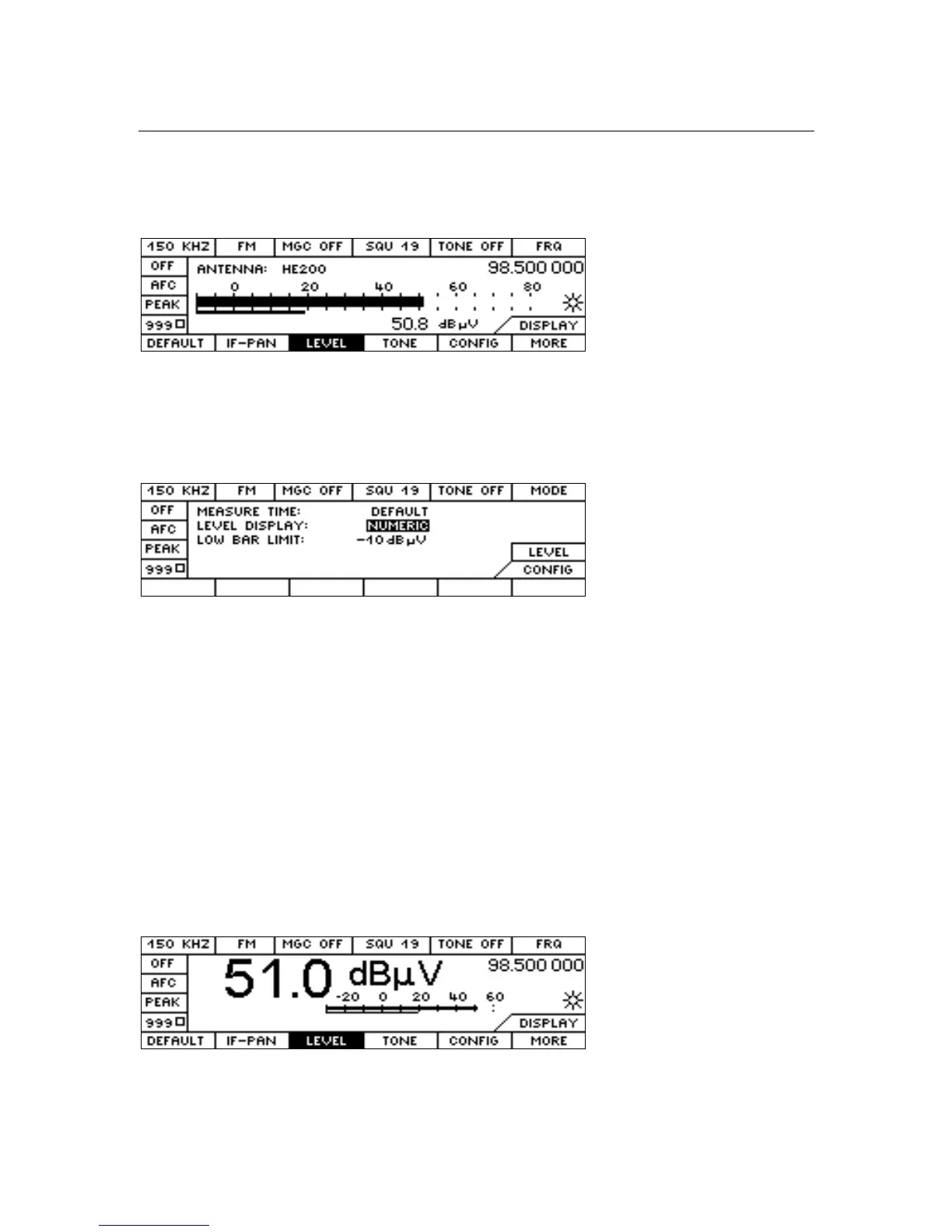

3.18.5.2 LEVEL BAR (level measurement)
This menu is obtained by pressing the LEVEL softkey in the DISPLAY menu.
Just as the large level bar display, this window also shows the antenna which is currently activated, and
the numerical level indication.
LEVEL (level measurement) - CONFIG
This menu is obtained by pressing the CONFIG softkey in the LEVEL menu.
Configuration parameters
MEASURE TIME: Measuring time: DEFAULT / 0.5 msec to 900 sec
LEVEL DISPLAY: Level indication: BAR / NUMERIC
LOW BAR LIMIT: Setting of lower end of scale
of level bargraph indication at ATT OFF: -30 dBµV, -10 dBµV, 10 dBµV
Note:
A measuring time other than the DEFAULT can only be adjusted with IF sections that are fitted with the
DDC2 (see also "SYSTEM menu" on page 40).
LEVEL NUMERIC
This menu is obtained by pressing the LEVEL softkey in the DISPLAY menu if in the LEVEL-CONFIG
menu the parameter LEVEL DISPLAY has been set to NUMERIC.
