EB200 Manual Operation
4052.2000.02 3.9 E-7

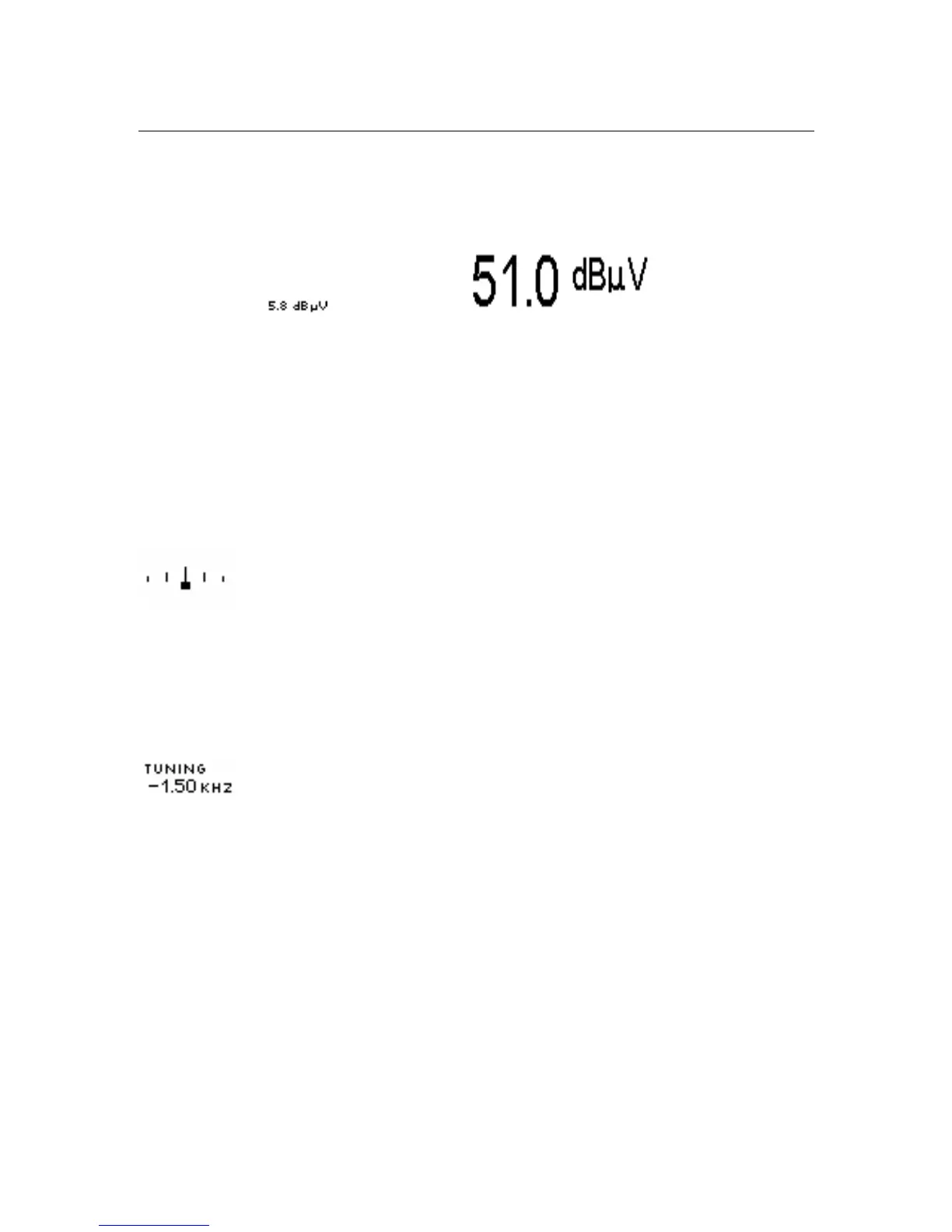

Numeric level display
The numeric level value is also displayed in different sizes. The value is displayed in dBµV with a
decimal point (resolution 0.1 dB).
At bandwidths
≤ 0.6 kHz, also level values ≤ -20 dBµV are displayed.
3.3.3 Offset display, TUNING
The offset display is configurable and can be presented as a numerical display or in the form of a tuning
meter (TUNING).
Symbolic offset display
The bar, which is 5 pixels wide and 4 pixels high, moves to the right or the left from its central position
depending on whether there is a positive or negative frequency offset (
± 0.5 bandwidth).
The display is for the selected bandwidth and can only be used for qualitative assessments.
Numerical offset display
The display is in kHz with two digits after the decimal point.
