7.13 Installing the LF loop antenna
The LF loop antenna R&S TS-F24HLF1 can be used inside the RF shielded box for a
range of test scenarios. The following section describes how it is mounted.
To remove the LF loop antenna from the chamber, follow the procedure in Chap-
ter 7.13.2, "Taking the LF loop antenna out of the chamber", on page 151.
7.13.1 Mounting the LF loop antenna into the chamber
The LF loop antenna R&S TS-F24HLF1 can be mounted into the RF shielded box.

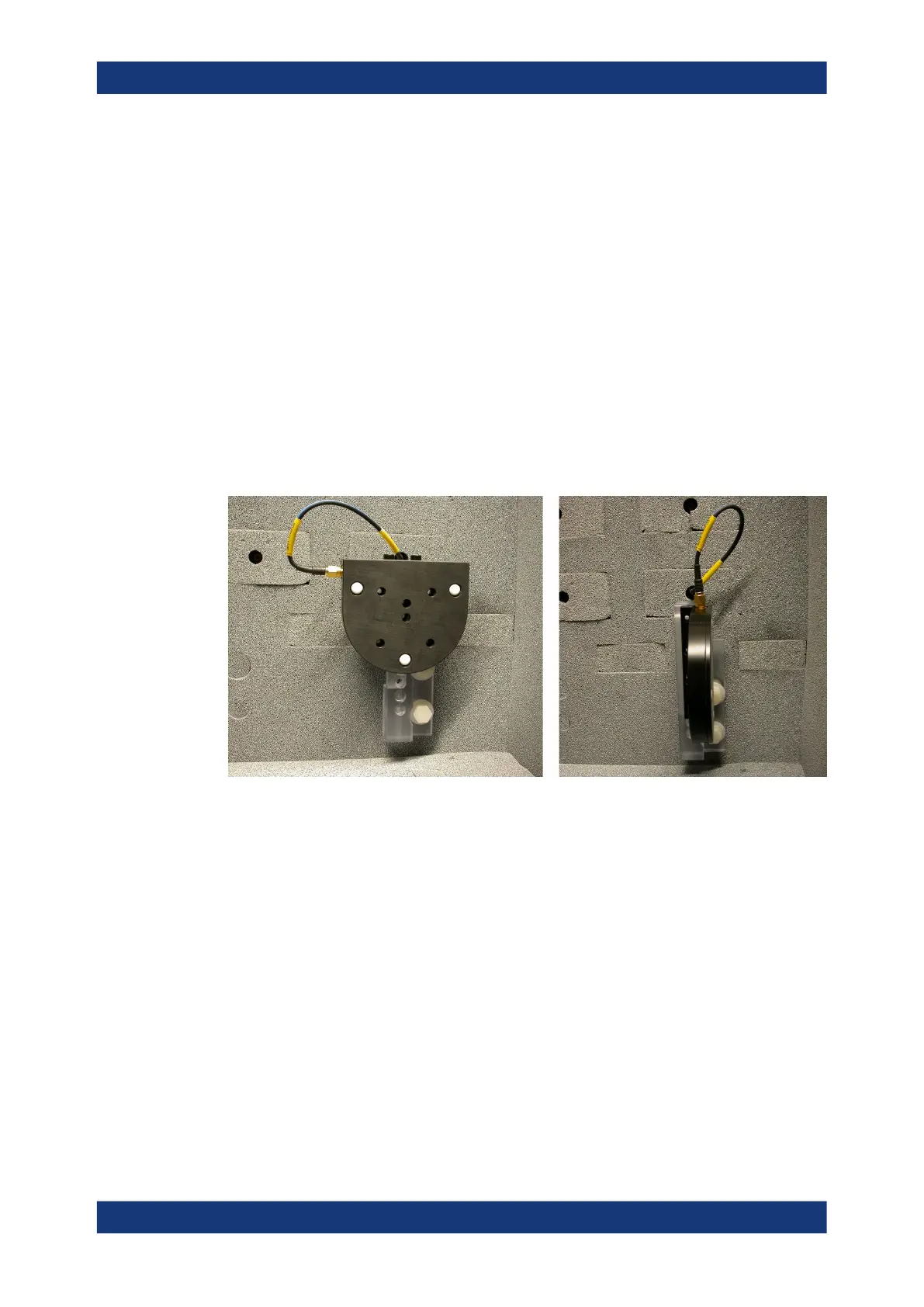

Figure 7-86: LF loop antenna mounted in RF shielded box (two of various possible positions)
Left = Front-facing orientation
Right = Side-facing orientation
Start with the following:
●
The pre-assembled LF loop antenna with included RF cable
●
The empty chamber (empty except for the absorber material covering the walls).
The following rules apply for other items in the chamber:
– If the full antenna ring is present in the chamber, remove it as described in
Chapter 7.6.3, "Taking the full antenna ring out of the chamber", on page 97.
– If the half antenna ring is present in the chamber, remove it as described in
Chapter 7.6.3, "Taking the full antenna ring out of the chamber", on page 97, to
be able to mount the LF loop antenna. After mounting the LF loop antenna, you
can mount the half antenna ring again as described in Chapter 7.6.4, "Mount-
ing the full antenna ring into the chamber", on page 101, if necessary.
