Accessories
R&S
®
TS7124M
39User Manual 1525.5394.02 ─ 05
6.2.6 Antenna holder R&S TS-F24-AH2
The R&S TS-F24-AH2, order no. 1525.8893.x2, is an optional antenna mounting struc-
ture for one, two or three Vivaldi antennas.
The antenna holder is compatible with the following antennas on their antenna fixtures:
●
Vivaldi antenna R&S TS-F24-V1
●
Vivaldi antenna R&S TS-F24-V2
●
Cross-polarized Vivaldi antenna R&S TS-F24-V3
●
Also, you can mount each Vivaldi antenna on the 45° adapter for lateral antenna tilt
R&S TS-F2X-VH4, which is also compatible with the antenna holder.
Alternatively, you can use the antenna holder to mount an LF loop antenna R&S TS-
F24HLF1, as described in Chapter 7.13, "Installing the LF loop antenna", on page 147.

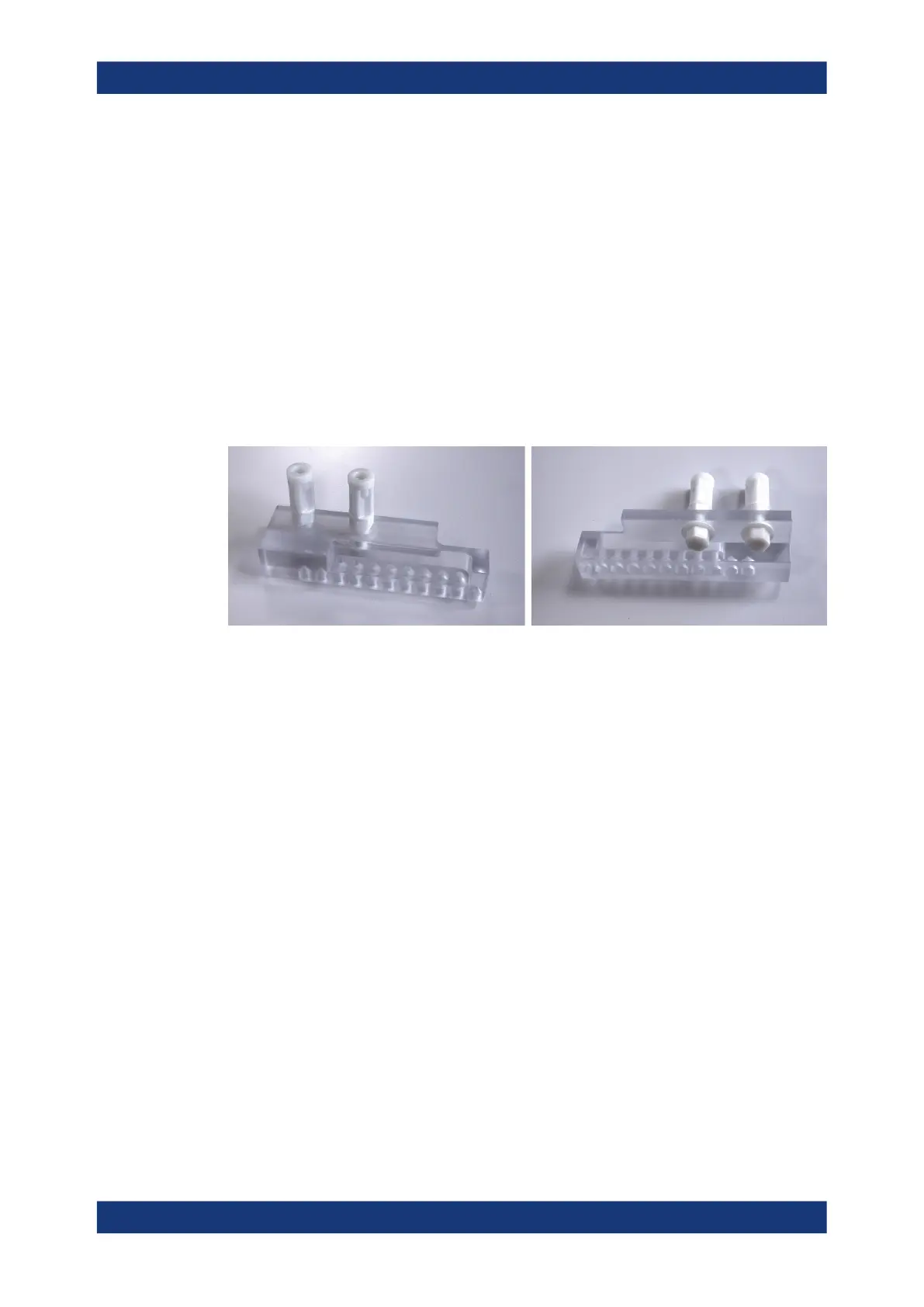

Figure 6-11: Two views of the antenna holder without antenna
The antenna holder is available in three versions:
●
Basic holder without antenna, order no. 1525.8893.02, see Figure 6-11, consisting
of
– Antenna holder rail
– Two polymer bolts
– Two polymer spacers
– One antenna cable with SMA and SMP connectors, length 20 cm, order no.
1530.6066.00
●
The basic holder with an additional Chapter 6.3.1, "Vivaldi antenna R&S TS-F24-
V1", on page 40, order no. 1525.8893.12, see Figure 6-12 (left-hand side)
●
The basic holder with an additional Vivaldi antenna R&S TS-F24-V2, order no.
1525.8893.22, see Figure 6-12 (right-hand side)
Note: An expanding rivet for the connection between antenna fixture and antenna
holder is delivered with the antenna (part of the antenna fixture kit).
Antenna holders
