Expanding rivets that keep most of the antenna ring components together are shown in
Figure 7-55. Mounting and orientation of the antenna fixtures and antennas is shown in
"To mount an antenna on the ring" on page 119 and Figure 7-60.
You can mount the full antenna ring into the chamber. The mounting procedure is
described in Chapter 7.6, "Installing an antenna ring or holder", on page 87.
The full antenna ring is not a serviceable part. If it is defective or not working correctly,
replace it.
6.2.4 Full antenna ring with three Vivaldi antennas R&S TS-F24-AR3
The R&S TS-F24-AR3 is a Full antenna ring R&S TS-F24-AR, equipped with three
Vivaldi antennas.
Two versions are available:
●
The antenna ring with order no. 1530.6008.02 is pre-installed with three Vivaldi
antenna R&S TS-F24-V1
●
The antenna ring with order no. 1530.6008.04 is pre-installed with three Vivaldi
antenna R&S TS-F24-V2

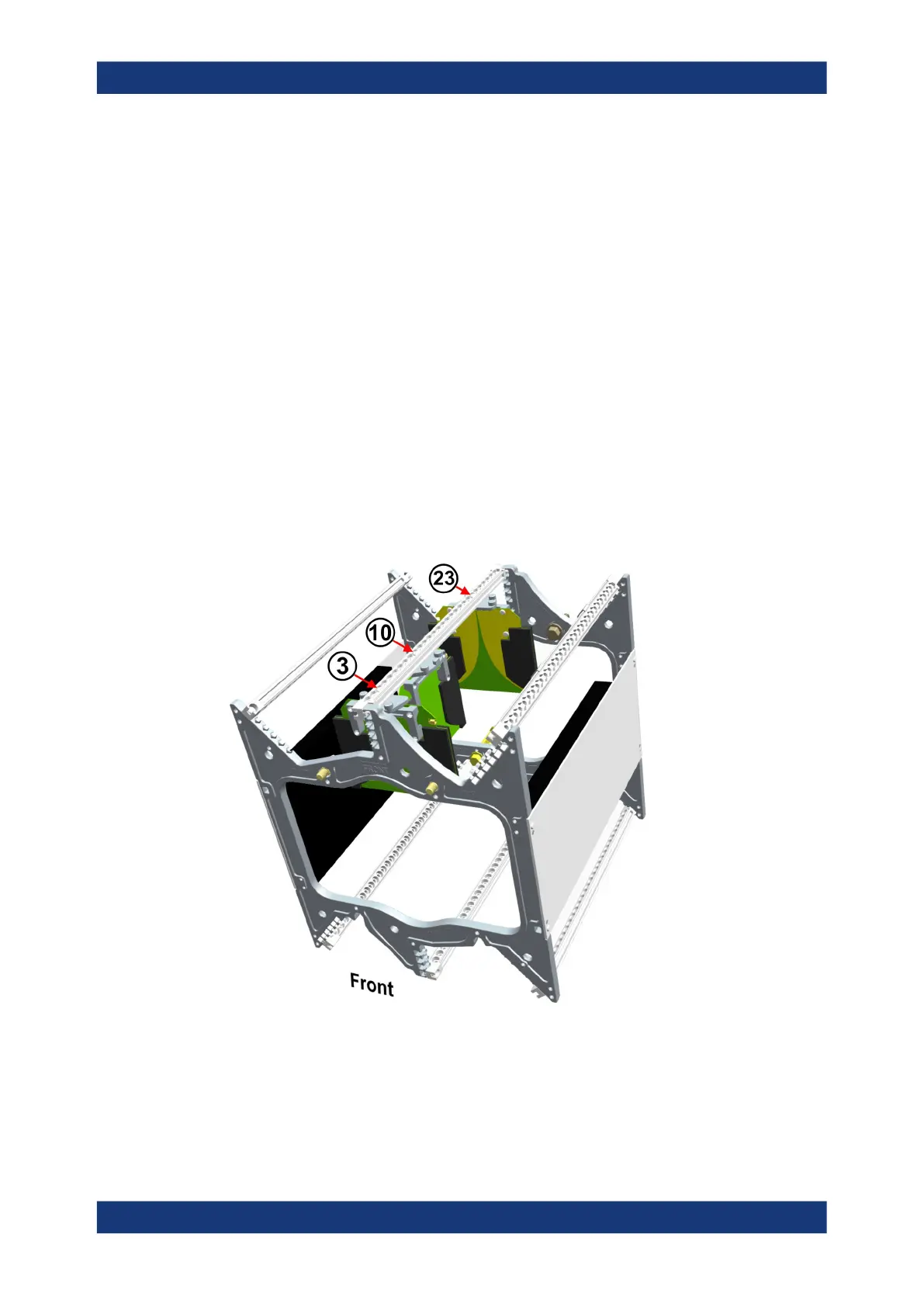

Figure 6-9: Full antenna ring with three Vivaldi antennas (V1 or V2)
3 =
Vivaldi antenna on rail 1, top, position 3 (3
rd
hole), rotation 90°
10 =
Vivaldi antenna on rail 1, top, position 10 (10
th
hole), rotation 0°
23 =
Vivaldi antenna on rail 1, top, position 23 (23
rd
hole), rotation 90°
Antenna holders
