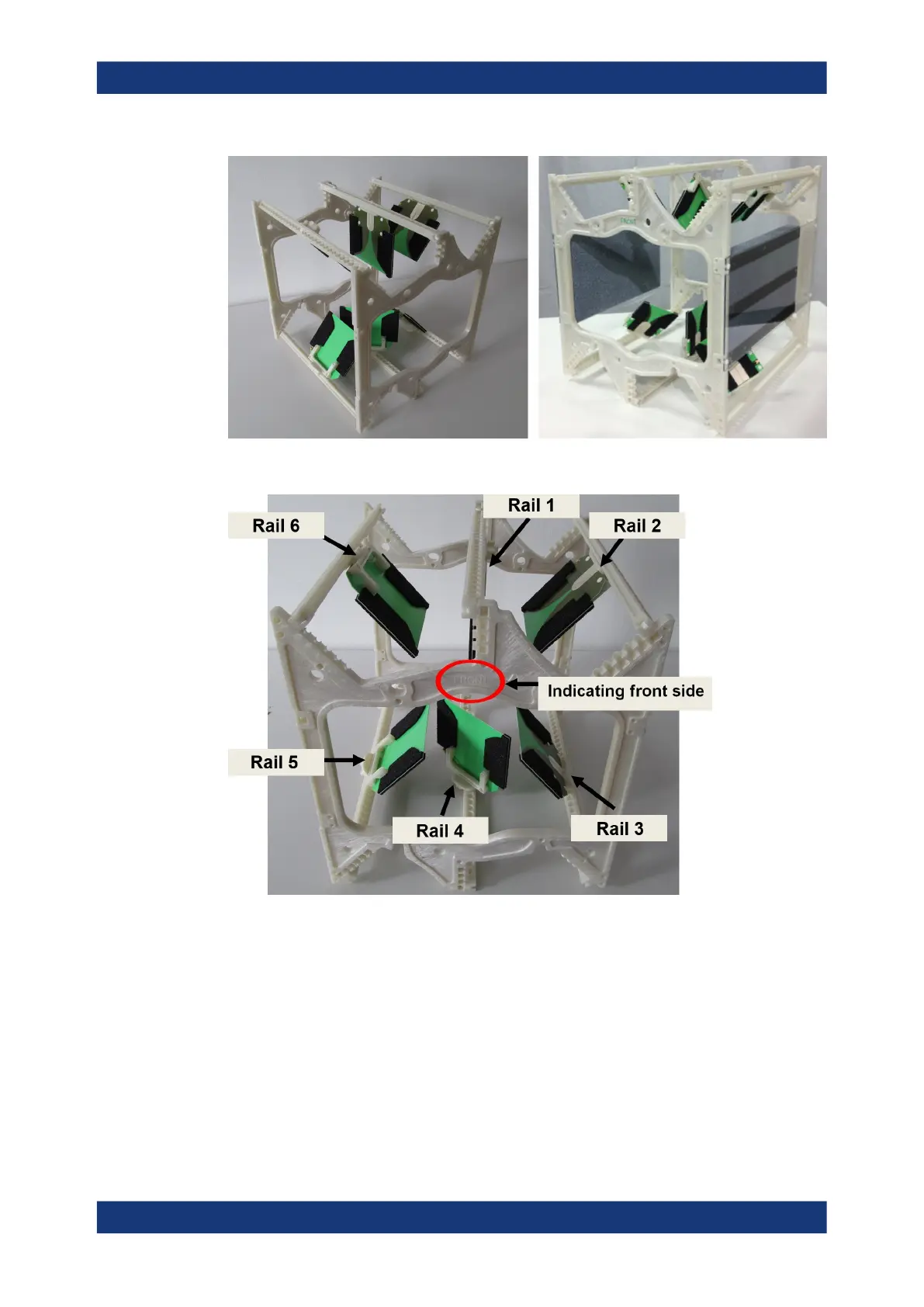

Figure 6-7: Antenna ring with six Vivaldi antennas, right: with two absorber brackets and absorbers
Figure 6-8: Convention of numbering antenna ring bars (rails) in the full antenna ring
Rail 1 = Antenna ring bar in 0° position
Rail 2 = Antenna ring bar in 45° position
Rail 3 = Antenna ring bar in 135° position
Rail 4 = Antenna ring bar in 180° position
Rail 5 = Antenna ring bar in 225° position
Rail 6 = Antenna ring bar in 315° position
The full antenna ring in Figure 6-8 shows numbered rails. The view of the figure is from
the front of the chamber. Looking inside the chamber through the opened drawer, the
antenna ring bars are numbered clockwise, starting with "Rail 1" in the 0° (or 12
o’clock) position.
Antenna holders
