Accessories
R&S
®
TS7124M
35User Manual 1525.5394.02 ─ 05
differentiate it from the Half antenna ring R&S TS-F24-AH1 that fills the upper half of
the chamber.
The full antenna ring is compatible with the following antennas on their antenna fix-
tures:
●
Vivaldi antenna R&S TS-F24-V1
●
Vivaldi antenna R&S TS-F24-V2
●
Cross-polarized Vivaldi antenna R&S TS-F24-V3
●
Also, you can mount each Vivaldi antenna on the 45° adapter for lateral antenna tilt
R&S TS-F2X-VH4, which is also compatible with the full antenna ring.

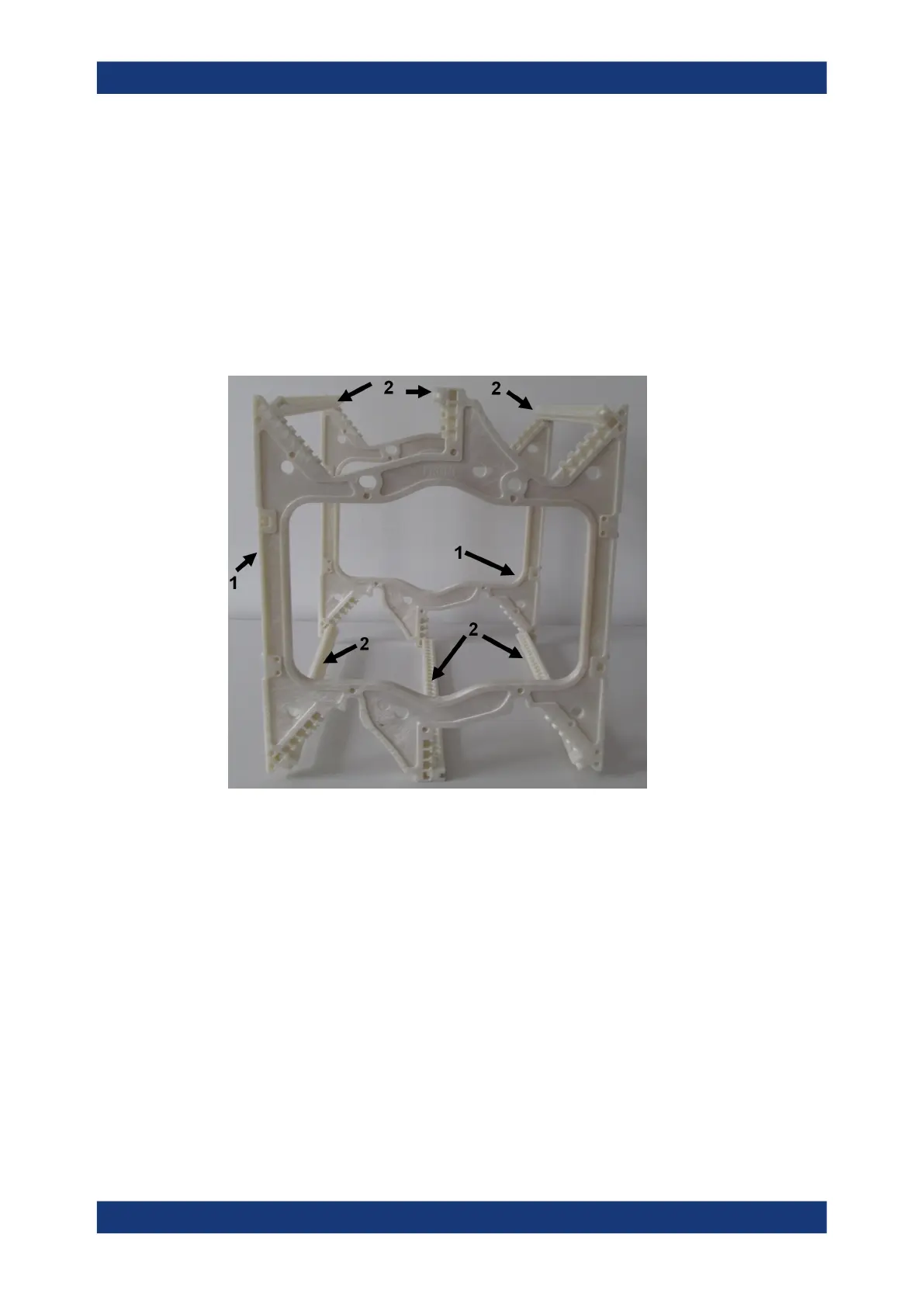

Figure 6-6: Full antenna ring
1 = Antenna ring plate (one in the front, one rear)
2 = Antenna ring bar (or rail, or cross strut)
Antenna holders
