7.13.2 Taking the LF loop antenna out of the chamber
To remove the LF loop antenna out of the chamber
1. Remove the top cover as described in Chapter 7.4.1, "Opening the top cover",
on page 78.
For the remainder of this procedure, remember to avoid touching the gasket that
seals the top cover.
2. Unscrew the two polymer bolts that fix the antenna holder.

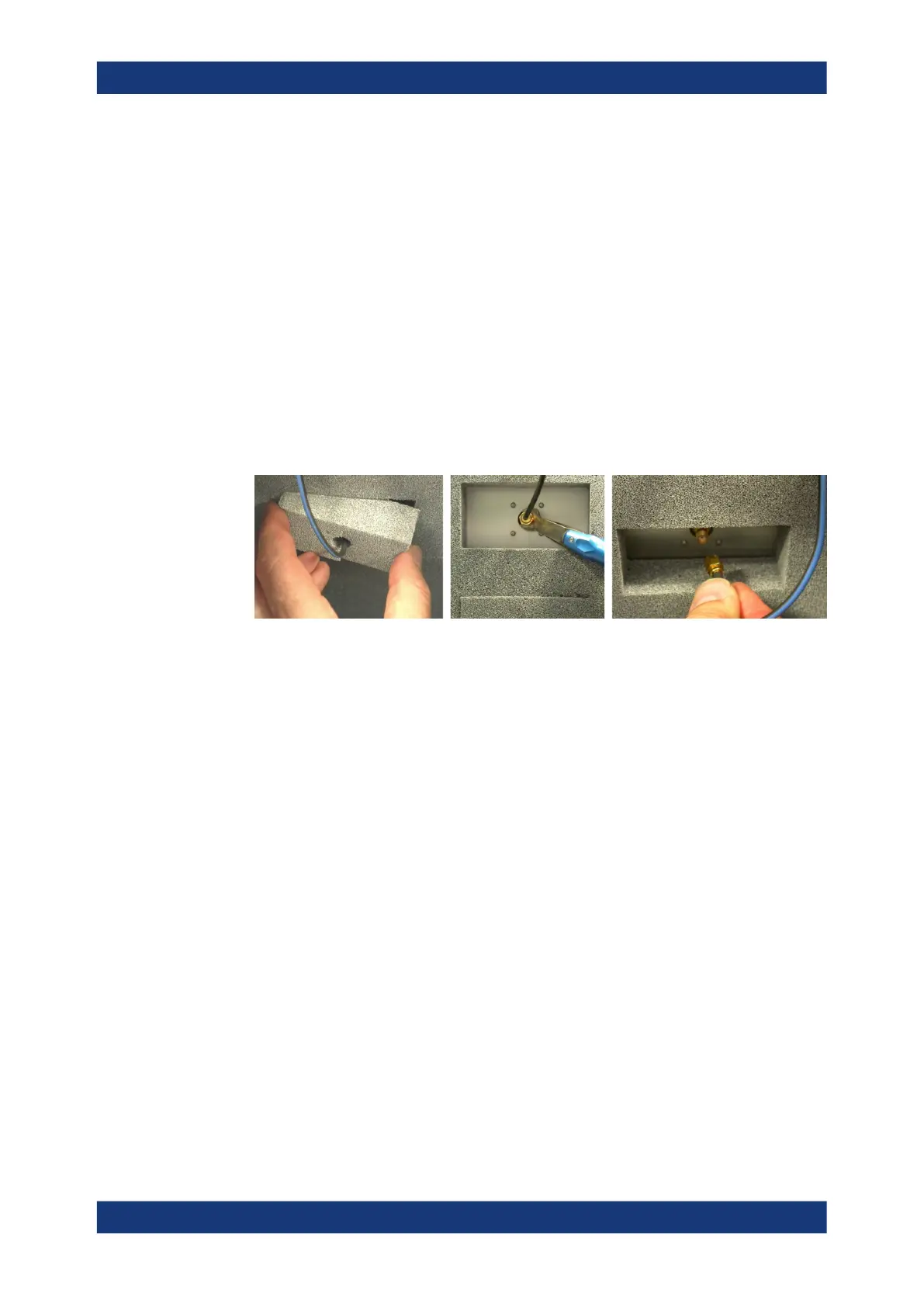

3. At the chamber's rear wall, remove the pad of detachable absorber material at the
SMA connector to which the RF cable leads.
4. Disconnect the cable from the SMA feedthrough connector at the rear wall, using a
torque wrench.
5. Insert the previously removed pad of absorber material back in place at that SMA
connector.
6. Take the antenna out of the chamber.
7. Remove the two spacers on the right side at the lower end of the rear chamber
wall.
8. Insert two detachable round absorber pads into the spacers' holes in the absorber
material.(Use the pads that you removed from there when you mounted the LF
loop antenna.)
9. Optionally disconnect the cable from the LF loop antenna's SMA connector, using a
torque wrench.
10. Optionally detatch the antenna from the antenna holder by removing the one or two
expanding rivets.
11. Close the top cover as described in Chapter 7.4.2, "Closing the top cover",
on page 80.
