R&S TS7124M - Half Antenna Ring with Three Vivaldi Antennas R&S TS-F24-AH3

Accessories
R&S
®
TS7124M
33User Manual 1525.5394.02 ─ 05

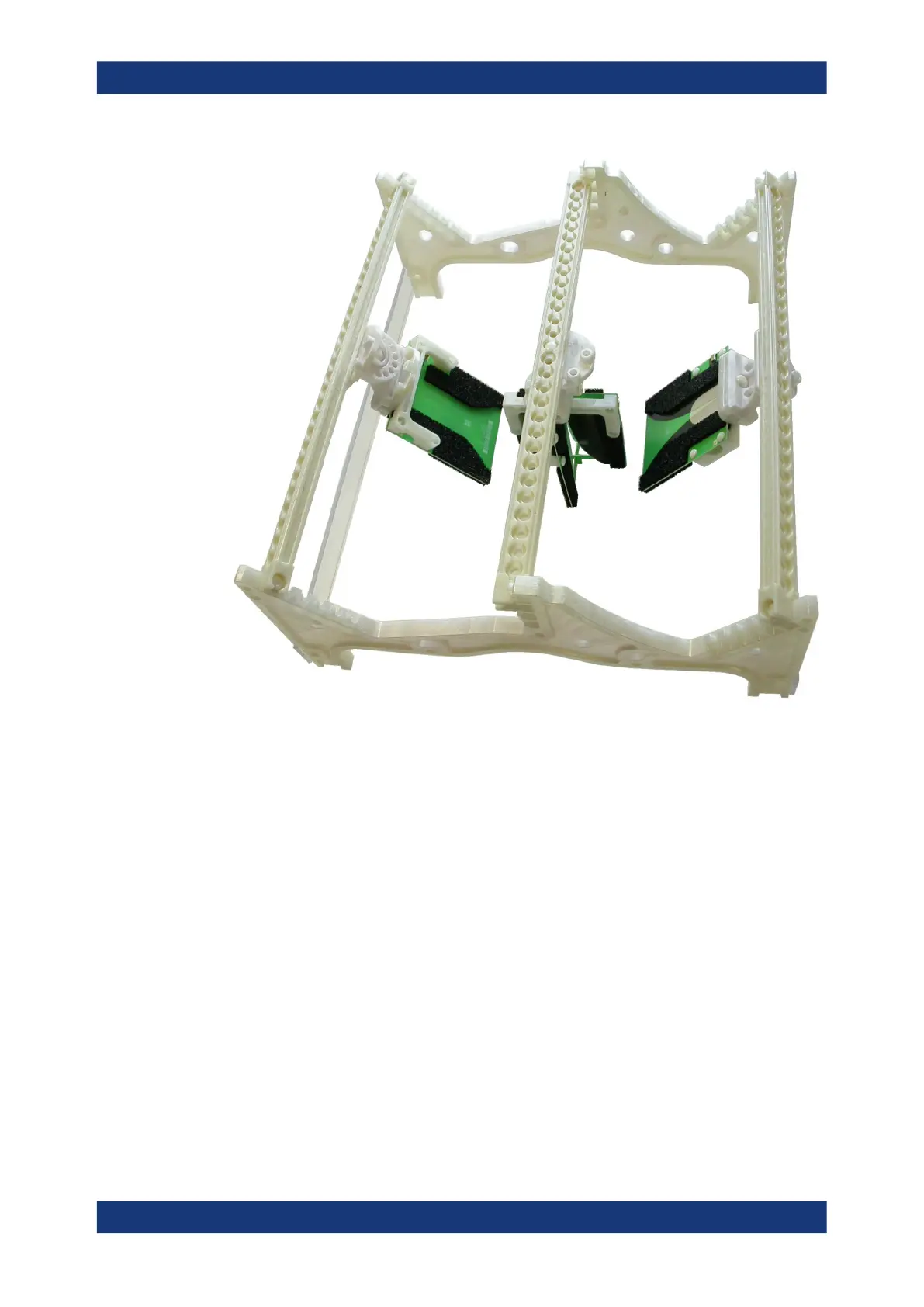

Figure 6-4: Half antenna ring with three Vivaldi antennas mounted on 45° adapters (here: not tilted)
The procedure for mounting the half antenna ring into the chamber is described in
Chapter 7.6, "Installing an antenna ring or holder", on page 87.
The half antenna ring is not a serviceable part. If it is defective or not working correctly,
replace it.
6.2.2 Half antenna ring with three Vivaldi antennas R&S TS-F24-AH3
The R&S TS-F24-AH3 is a Half antenna ring R&S TS-F24-AH1, already equipped with
three Vivaldi antennas.
Two versions are available:
●
The half antenna ring with order no. 1530.5999.02 is pre-installed with three Vivaldi
antenna R&S TS-F24-V1.
●
The half antenna ring with order no. 1530.5999.04 is pre-installed with three Vivaldi
antenna R&S TS-F24-V2.
Antenna holders
