6.6.8 Ethernet (LAN) feedthrough R&S TS-F1ETRR1
The R&S TS-F1ETRR1, order no. 1525.8729.02, is an optional filtered feedthrough for
Gigabit Ethernet (LAN) interfaces with 8-pin 8P8C (RJ-45) connectors.

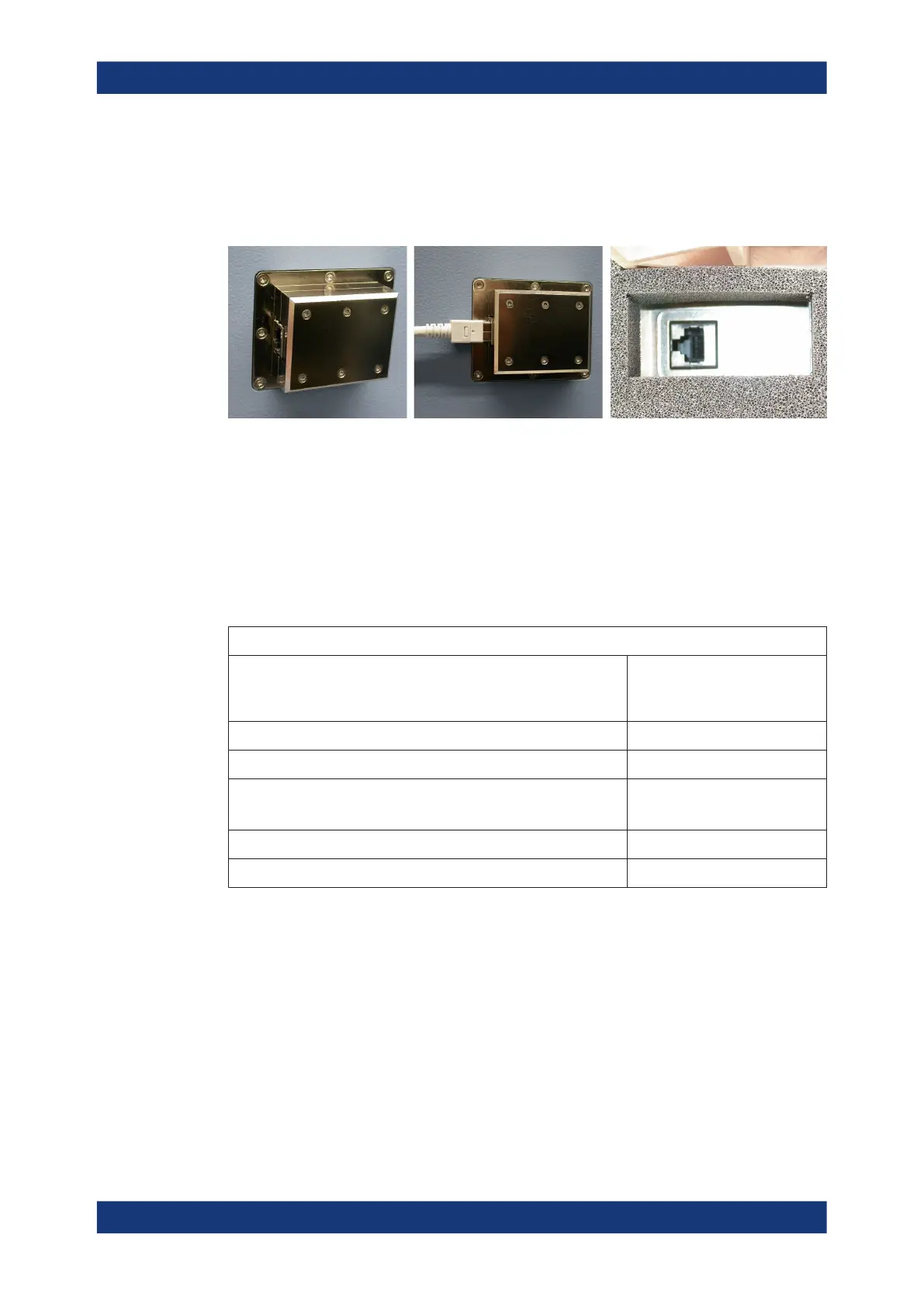

Figure 6-35: Gigabit Ethernet feedthrough for a LAN connection
Left = View from the outside of the chamber, LAN not connected
Center = Outside view, LAN cable connected
Right = Inside view, mounted in the front door (seen below a DUT holder tray), LAN not connected
The feedthrough allows for directly connecting the Gigabit Ethernet interfaces of a DUT
inside the chamber to any compatible device outside the chamber, typically a computer
in the test system. This setup enables communicating with the DUT while it is tested
inside the closed chamber.
Ethernet feedthrough properties
Shielding effectiveness
(with 30 cm LAN cable connected inside the chamber and 100 cm
LAN cable connected outside the chamber, open ended)
≥ 70 dB from 400 MHz to 6 GHz
Filter circuits Pi type
Transfer rate 1 Gbit/s
Power over Ethernet (PoE) no
See Chapter 6.6.9
Operating temperature range +5°C to +40°C
Storage temperature range -40°C to +70°C
The filtered Ethernet feedthrough is not a serviceable part. If it is defective or not work-
ing correctly, replace it.
6.6.9 Power-over-Ethernet feedthrough R&S TS-F2ETRR1
The R&S TS-F2ETRR1, order no. 1536.4094.02, is an optional filtered feedthrough for
power-over-Ethernet (PoE) interfaces with 8-pin 8P8C (RJ-45) connectors, like Fig-
ure 6-35. Integrated lowpass filter elements on all eight lines provide shielding effec-
tiveness of ≥60 dB from 400 MHz to 6 GHz.
