The filtered D-Sub feedthrough is not a serviceable part. If it is defective or not working
correctly, replace it.
6.6.5 USB 2.0 type AB feedthrough R&S TS-F1U2BA1
The R&S TS-F1U2BA1, order no. 1525.8735.02, is an optional filtered USB 2.0 feed-
through with type A and B connectors. It allows for directly connecting the DUT inside
the chamber to a USB-compatible device, typically a computer that is part of the test
system. This setup enables controlling and monitoring the DUT while it is tested inside
the closed chamber.

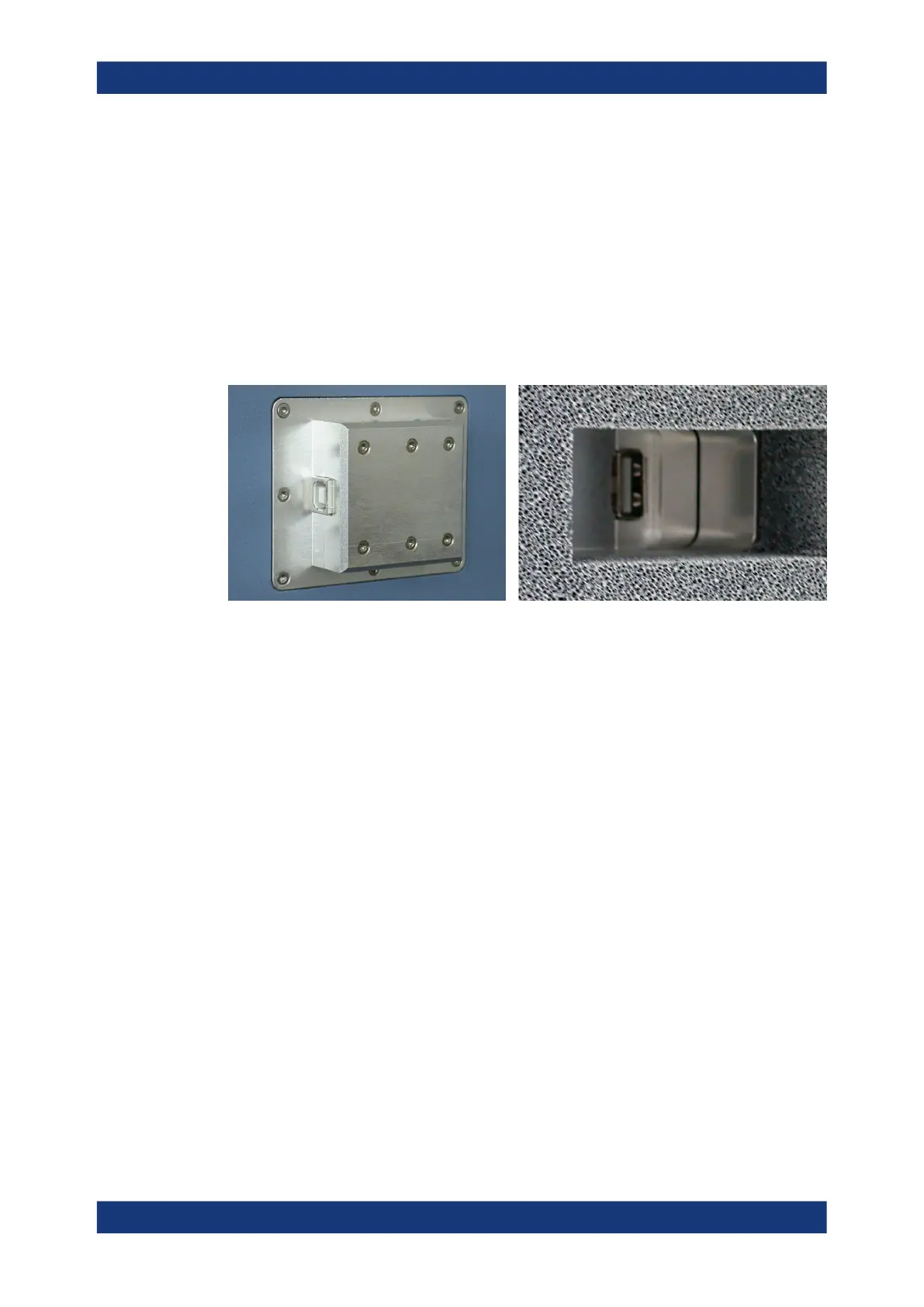

Figure 6-32: Filtered USB 2.0 feedthrough
Left = Outside view with USB 2.0 type B female connector
Right = Inside view with USB 2.0 type A female connector
The filtered USB 2.0 feedthrough is not a serviceable part. If it is defective or not work-
ing correctly, replace it.
6.6.6 USB 3.2 type AB feedthrough R&S TS-F1U3BA1
The R&S TS-F1U3BA1, order no. 1537.6632.02, is an optional filtered USB 3.2 feed-
through with type A and B connectors. It allows for directly connecting the DUT inside
the chamber to a USB-compatible device, typically a computer that is part of the test
system. This setup enables controlling and monitoring the DUT while it is tested inside
the closed chamber.
Feedthroughs
