Accessories
R&S
®
TS7124M
64User Manual 1525.5394.02 ─ 05

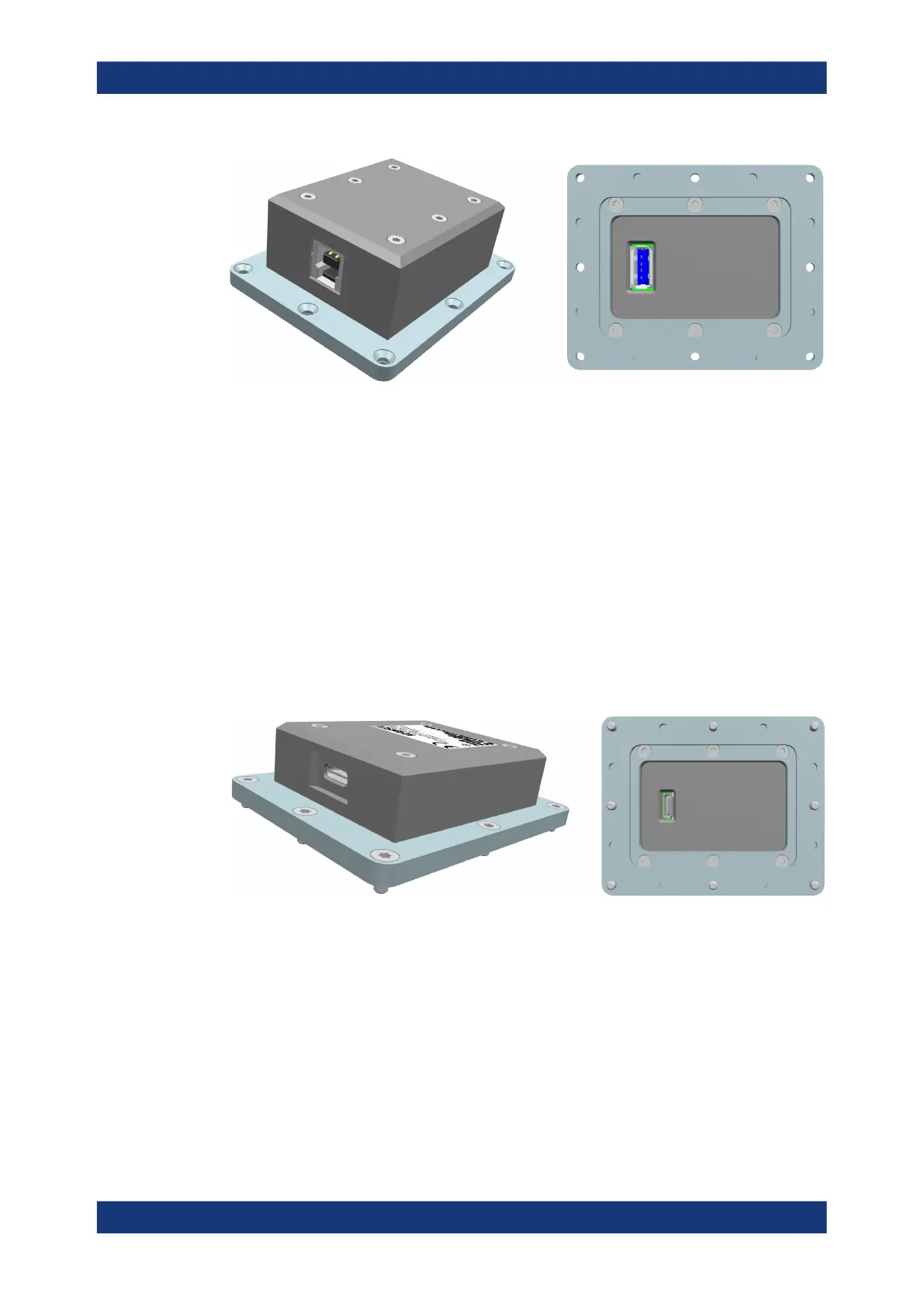

Figure 6-33: Filtered USB 3.2 feedthrough
Left = Outside view with USB 3.2 type B female connector
Right = Inside view with USB 3.2 type A female connector
The filtered USB 3.2 feedthrough is not a serviceable part. If it is defective or not work-
ing correctly, replace it.
6.6.7 USB 3.2 type C feedthrough R&S TS-F1U3CC1
The R&S TS-F1U3CC1, order no. 1537.6649.02, is an optional filtered USB 3.2 feed-
through with type C connectors. It allows for directly connecting the DUT inside the
chamber to a USB-compatible device, typically a computer that is part of the test sys-
tem. This setup enables controlling, powering and monitoring the DUT while it is tested
inside the closed chamber.
Figure 6-34: Filtered USB 3.2 feedthrough
Left = Outside view with USB 3.2 type C female connector
Right = Inside view with USB 3.2 type C female connector
The filtered USB 3.2 feedthrough is not a serviceable part. If it is defective or not work-
ing correctly, replace it.
Feedthroughs
