6 Accessories
The following accessories are available for the R&S TS7124M:
● Basic absorber R&S TS-F24ABS............................................................................30
● Antenna holders......................................................................................................31
● Antennas.................................................................................................................40
● Magnetic coil R&S TS-F24HML1............................................................................ 51
● DUT holder tray R&S TS-F24P1.............................................................................57
● Feedthroughs..........................................................................................................59
● Energy chain R&S TS-F24EC.................................................................................71
6.1 Basic absorber R&S TS-F24ABS
The R&S TS-F24ABS, order no. 1525.8593.02, is the basic absorber material placed
inside all walls of the chamber, including the door, the top cover and the ground.
Optionally, you can order the chamber without these absorbers, but for most applica-
tions (and for this user manual) it is assumed that it would typically be installed in the
chamber.

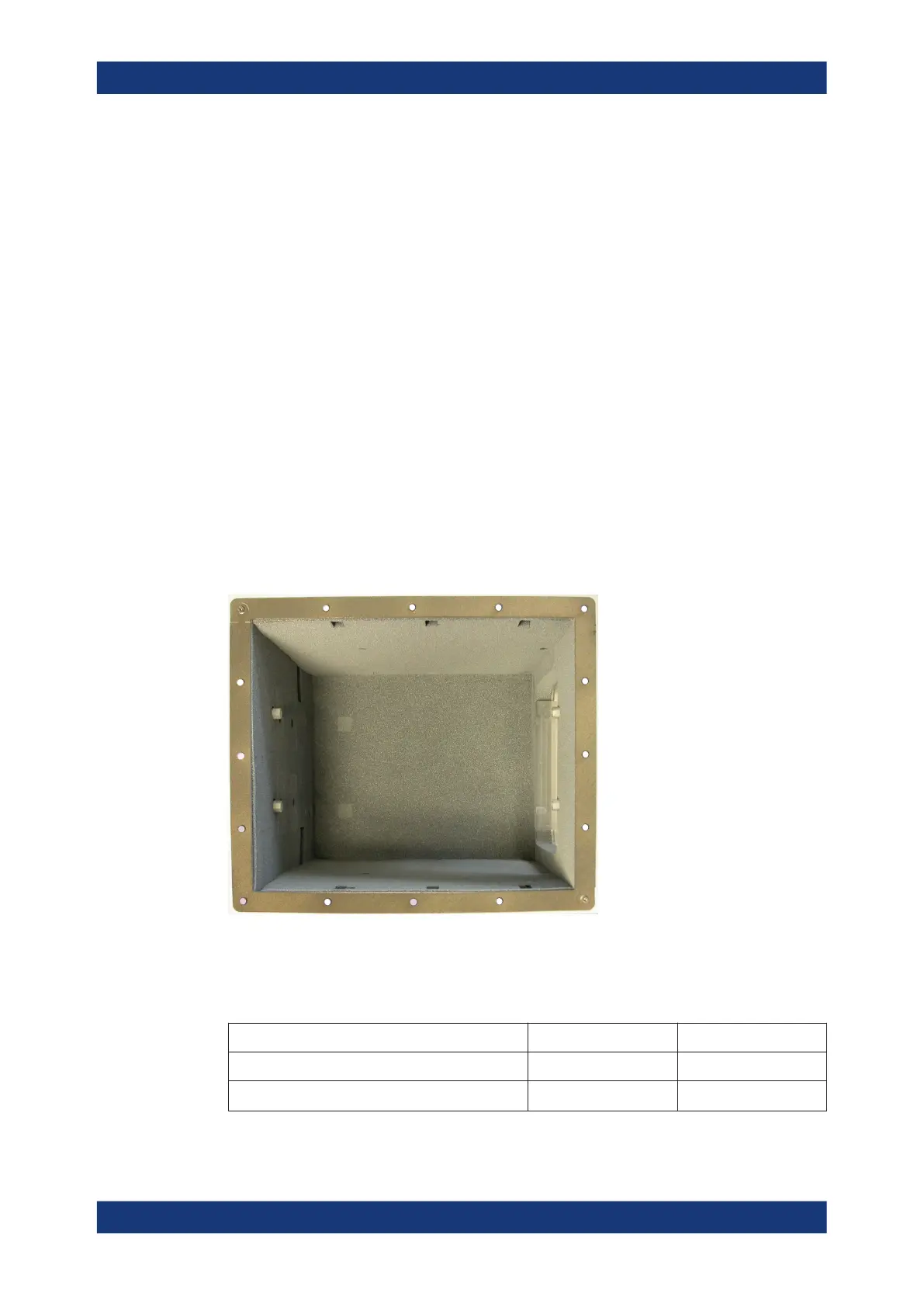

Figure 6-1: Empty chamber with basic absorber material (seen from top, cover removed)
The absorber type Eccosorb LS22 from Emerson and Cuming is used, featuring the
following properties:
Absorber material properties at 3 GHz at 10 GHz
Attenuation (dB/cm) 7.4 14.9
Relative Impedance (|Z|/Z
0
) 0.55 0.74
