Attach the DUT holder tray to the other position.
5. Use the two hexagon socket screws to pull the tray all the way into the notch.
6. To securely fix the tray to the front door, tighten the two screws with a torque of
8 Nm.
7. When finished, close the front door.
7.6 Installing an antenna ring or holder
Before configuring the half or full antenna ring or the antenna holder with Vivaldi anten-
nas, the entire antenna ring or the antenna holder must be taken out of the RF shiel-
ded box. After configuration, it can be installed back into the chamber. These activities
are described in the following sections:
7.6.1 Taking the half antenna ring out of the chamber........................................................... 87
7.6.2 Mounting the half antenna ring into the chamber..........................................................91
7.6.3 Taking the full antenna ring out of the chamber............................................................ 97
7.6.4 Mounting the full antenna ring into the chamber......................................................... 101
7.6.5 Taking the antenna holder out of the chamber............................................................109
7.6.6 Mounting the antenna holder into the chamber........................................................... 111
7.6.1 Taking the half antenna ring out of the chamber
To take the half antenna ring out of the chamber
1. Remove the top cover (see Chapter 7.4.1, "Opening the top cover", on page 78).
For the remainder of this procedure, remember to avoid touching the gasket that
seals the top cover.

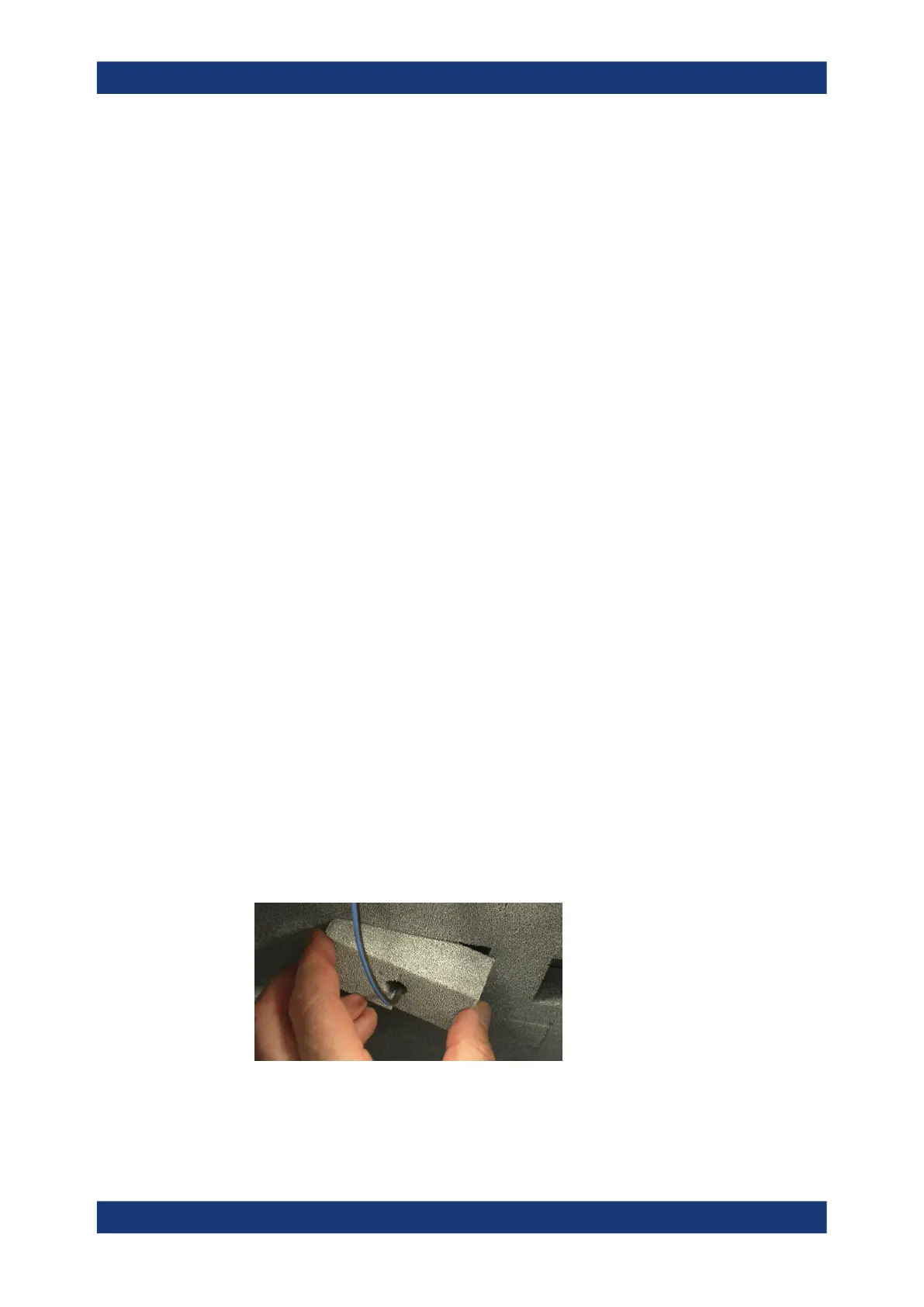

2. Remove the detachable absorber pads from the rear chamber wall, wherever an
antenna cable is attached to an SMA connector.
3. Use an SMA wrench to disconnect the antenna cables from the SMA connectors at
the chamber's rear wall.
