Accessories
R&S
®
TS7124M
67User Manual 1525.5394.02 ─ 05

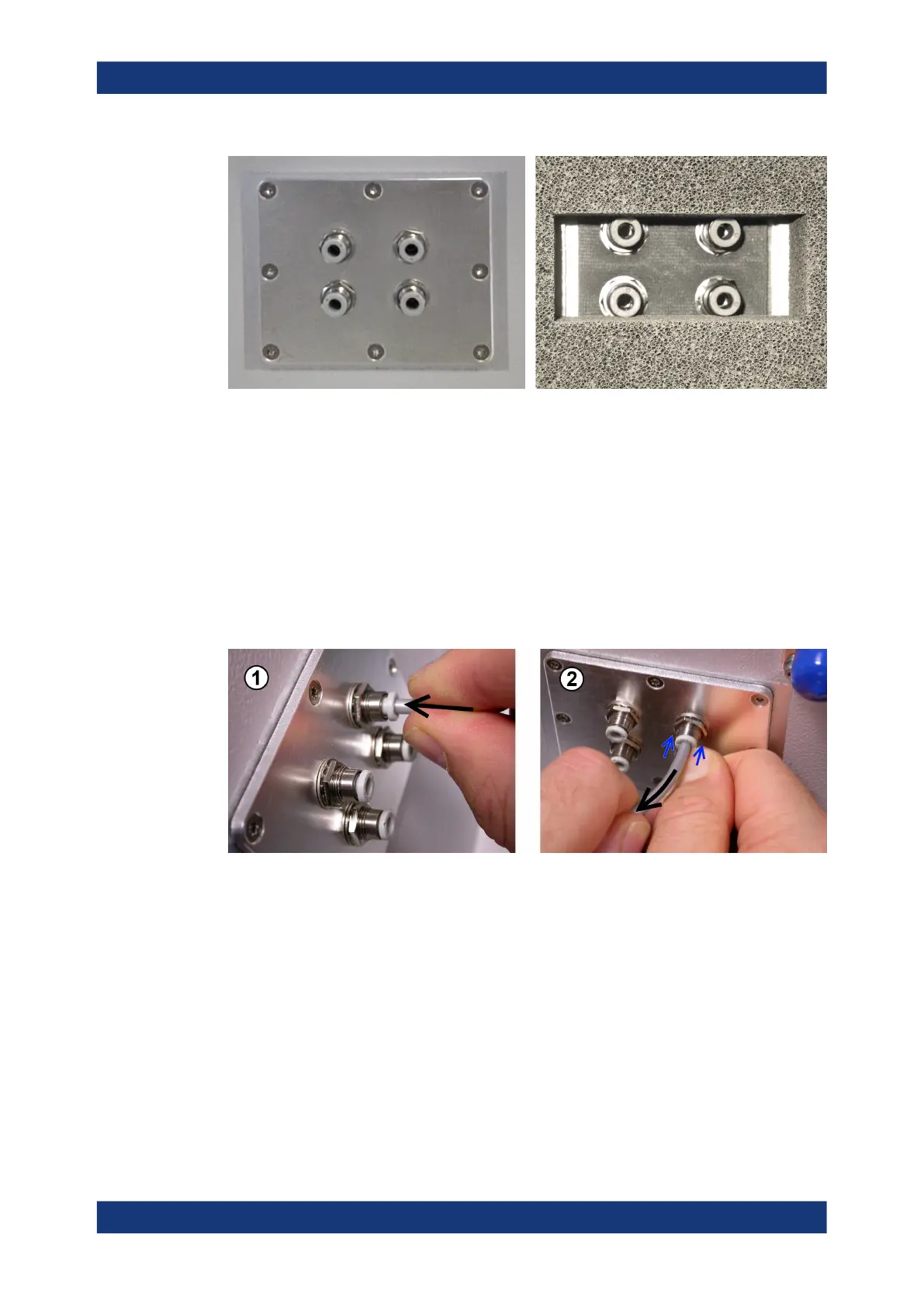

Figure 6-37: Pneumatic feedthrough with four push-pull valve connectors
Left = Outside view with four female push-pull valves (4 mm inner diameter)
Right = Inside view with four female push-pull valves (4 mm inner diameter)
To connect 4 mm pneumatic tubing to this feedthrough, push the tube all the way into
the connector, as shown left (1) in Figure 6-38. For best results, use a tube that has a
straight cut end (not an angled end).
To disconnect 4 mm pneumatic tubing from this feedthrough, first switch off the pres-
surized air supply. Then gently pull the tube out of the connector while firmly pushing in
the gray ring in the opposite direction, as indicated by the blue arrows (2) in Fig-
ure 6-38.
Figure 6-38: Handling pneumatic tubing with the push-pull connector
1 = To connect a 4 mm tube, push it all the way into the connector
2 = To disconnect the tube, switch off the pressurized air supply. Then gently pull the tube out of the push-
pull connector while firmly pushing in the gray ring in the opposite direction, as indicated by the blue
arrows
The 4x pneumatic feedthrough is not a serviceable part. If it is defective or not working
correctly, replace it.
6.6.12 DC power feedthrough R&S TS-F1PODC1
The R&S TS-F1PODC1, order no. 1537.6684.02, is an optional filtered power feed-
through to provide a DC power supply interface to the chamber interior. It allows con-
