Installation and commissioning
R&S
®
TS7124M
26User Manual 1525.5394.02 ─ 05

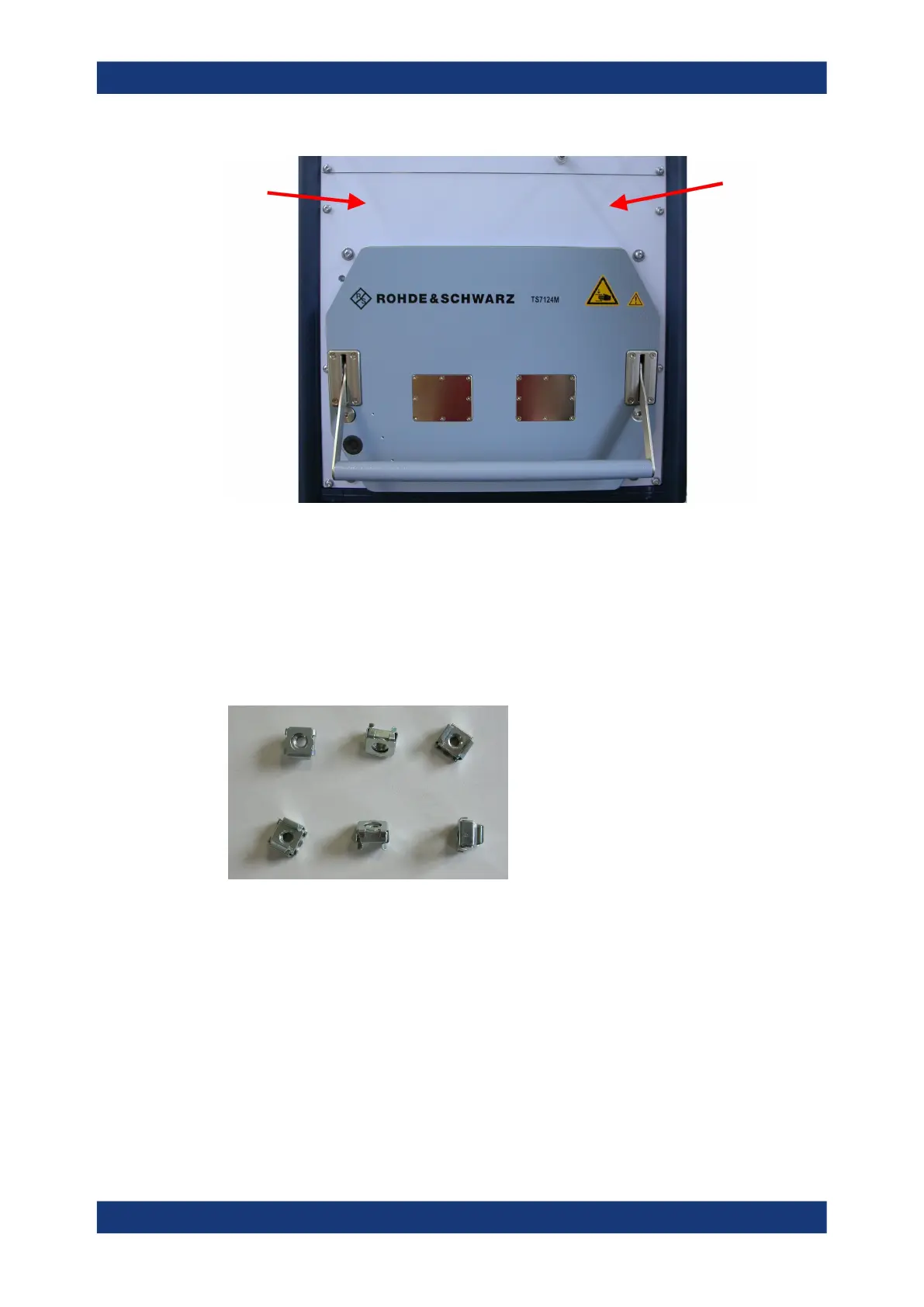

Figure 5-3: Chamber fixed in a 19'' rack by the rack mounting kit
Red arrows = Metal sheet of the rack mounting kit
Inside the rack, the chamber must rest on stable rails that jointly can carry a load of at
least 40 kg. Fix the chamber to these rails (or to the rack) with screws and brackets
(see Figure 5-2).
As a prerequisite for installation, the 19'' rack with universal square holes must be
equipped with M5 cage nuts:
Figure 5-4: Cage nuts for metric M5 screws (not included in the delivery)
Start with the chamber unpacked and transported to the operating site, but not yet
positioned and mounted on a support.
To mount the chamber in a rack
For mounting the chamber into a rack, proceed as follows:
1. Prepare the rack with stable rails that jointly can carry a load of at least 45.
2. Mount the rails at the desired altitude, as described the rack manufacturer's mount-
ing instructions.
