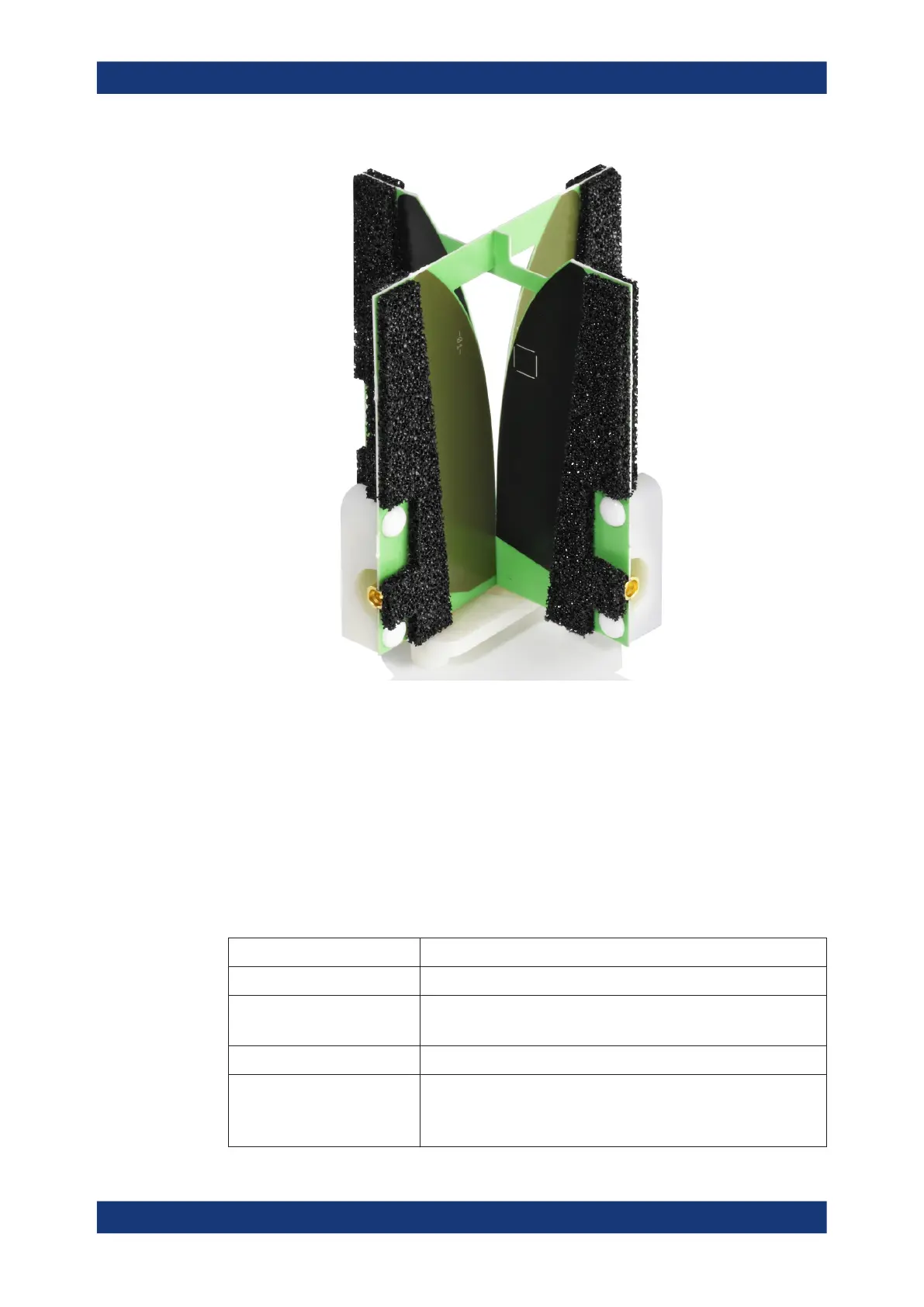

Figure 6-15: Cross-polarized Vivaldi antenna (1.7 to 20
GHz) with two SMP connectors, mounted on a
special antenna fixture
This dual Vivaldi antenna can be used as a communication antenna, allowing to trans-
mit signals towards the DUT, and to receive signals from it.
In this context, typical DUTs include mobile communication devices based on, e.g.,
GSM-1800, GSM-1900, selected UHF, UMTS and LTE bands, Bluetooth, Wi-Fi, Zigbee
and similar technology standards.
In combination with its fixture, the antenna can be flexibly mounted on the antenna
ring, as shown in Figure 7-56.
Table 6-3: Vivaldi antenna specifications
Parameter Value
Frequency 1.7 to 20 GHz
VSWR (reflection coefficients) < 2.3 (at 1.7 to 2.4 GHz)
< 2 (at 2.4 to 20 GHz)
Port isolation > 22 dB
Cross-polarization rejection >25 dB (at 1.7 to 6 GHz)
>15 dB (at 6 to 18 GHz)
>10 dB (at 18 to 20 GHz)
Antennas
