Operating Instructions D50+ | P50+ | SHERAprint 50
19
│
96
Rapid Shape GmbH
│
DOCR000438
2
Overview
2.1
Machine Assembly
&
Operating Elements

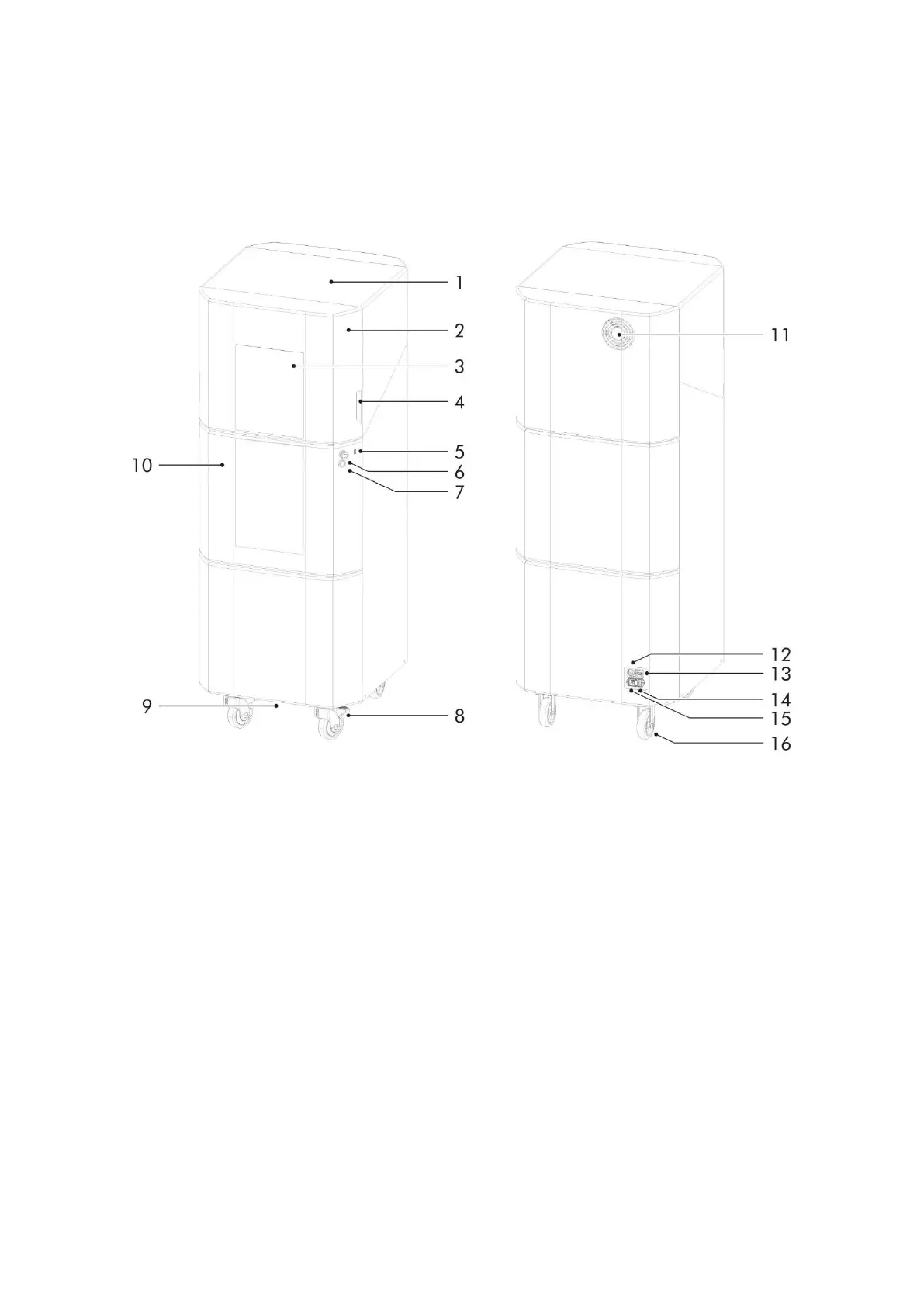

Figure 1
:
Machine o
verview
,
fro
nt & back
1
Frame
10
Middle hood
2
Upper hood
,
protectiv
e hood
11
Air outlet
3
Touch display
12
Ethernet connectio
n
4
Hood handle
13
USB port
5
USB port
14
Main switch (Toggl
e switch)
6
Emergency stop button
15
Power connection
7
Power on button
16
Castor without arrester
8
Castor with arrester
9
Foot sensor
18
20
Table of Contents
Table of Contents
3
Safety
7
Symbols in this Manual
7
Intended Use
9
Digital Workflow
9
Safety Devices
10
Protective Hoods
10
Hood Switch
10
Knife Protection Device
11
Attached Safety Markings
12
Residual Risks
13
Electrical Current
13
Mechanical Dangers
14
UV Radiation
14
Chemical Dangers
15
Danger Due to Hot Surfaces
15
Danger of Material Damage
15
Personnel Requirements
17
Personal Protective Equipment
18
Environmental Protection
18
Overview
19
Machine Assembly & Operating Elements
19
Serial Plate
22
Transport & Storage
23
Transporting the Machine
23
Unpacking the Machine
24
Scope of Delivery
25
Storing the Machine
25
Installation
26
Setting up
26
Requirements for the Installation Location
26
Setting up the Machine
26
Aligning the Machine
27
Connecting the Machine
29
Setting up the Wi-Fi Connection
30
Connecting the Machine to Other Devices (Intelligent Connectivity)
30
Emergency Shutdown
31
Preparations
32
Required Accessories
32
Print Accessories
32
IT Requirements
32
Netfabb
33
Operation
34
Switching on the Machine
34
Switching on the Machine for the First Time
34
Switching on the Machine in Daytime Mode
35
Menu Overview
36
Verifying the Machine Status
36
Opening & Closing the Machine
37
Opening & Closing the Machine with the Foot Sensor
37
Opening & Closing the Machine Manually
37
Automatic Hood Closing
38
Making General Settings in the Customer Menu
39
Hide Warnings (Reservoir Inserted)
39
Disable Automatic Updates
39
Enable Automatic Part Separation
40
Show Detailed Printing Screen
40
Intelligent Connectivity
40
Disable Mixing
41
Disable Automatic Hood
41
Disable Hood Assistant
41
Enable Automatic Refill
41
Move Jobs in Queue on Complete
42
Maximum Jobs in Basket
42
Offset Part Detection
42
Preparing the Machine for Printing (Start of the Day)
43
Checking the Individual Components for Cleanliness
43
Inserting the Build Platform
44
Inserting the Knife Drip Guard & the Knife
45
Inserting the Material Reservoir
47
Inserting the Collection Basket
48
Connecting the Hose (Automatic Refill)
48
Setting up & Administrating the Automatic Separation Function
49
Operation with Automatic Separation Function
49
Operation Without Automatic Separation Function
50
Printing Jobs
51
Starting the Print Job
51
Switching the Print View
52
Pausing Jobs & Ending Them Prematurely
53
Side Note: Integrated Heating Function
54
Refilling Printing Material
56
Refilling Printing Material Manually
56
Automatic Refill: Refilling the Printing Material Automatically
57
Automatic Refill: Replacing the Material Bottle (Empty > Full)
59
Automatic Refill: Re-Pumping Printing Material Manually
60
Removing Jobs
61
Removing Jobs with the Automatic Separation Function
61
Removing Jobs Without Automatic Separation Function (Manually)
62
Post-Processing Jobs
63
Cleaning Jobs
63
Post-Curing Jobs
64
Checking Your Jobs
64
Changing Printing Material
65
Machine Follow-Up (End of Day)
66
Decommissioning
67
Switching off the Machine
67
Switching off the Machine in Daytime Mode
67
Switching off the Machine for a Prolonged Period of Time (> 1 Week)
67
Shutting down the Machine for a Long Period of Time (> 1 Month)
67
Troubleshooting
68
Cleaning & Maintenance
69
Overview of the Cleaning & Maintenance Work
69
Cleaning the Protective Glass
70
Cleaning the Build Platform
71
Cleaning the Knife
73
Cleaning the Knife Drip Guard
75
Cleaning the Material Reservoir
76
Cleaning the Collection Basket
78
Calibrating the Exposure Unit (One-Point Calibration)
79
Checking the Separation Unit
81
Checking the Refill Unit
82
10.1.10 Checking & Adjusting the Parallelism of the Build Platform
83
Performing Automatic Reservoir Cleaning (Clean Reservoir)
86
10.1.12 Cleaning the Hose
88
10.1.13 Changing the Knife
91
10.1.14 Changing the Hose
93
Disassembly & Disposal
94
Disassemble the Machine
94
Dispose of the Machine
95
Technical Details
96
