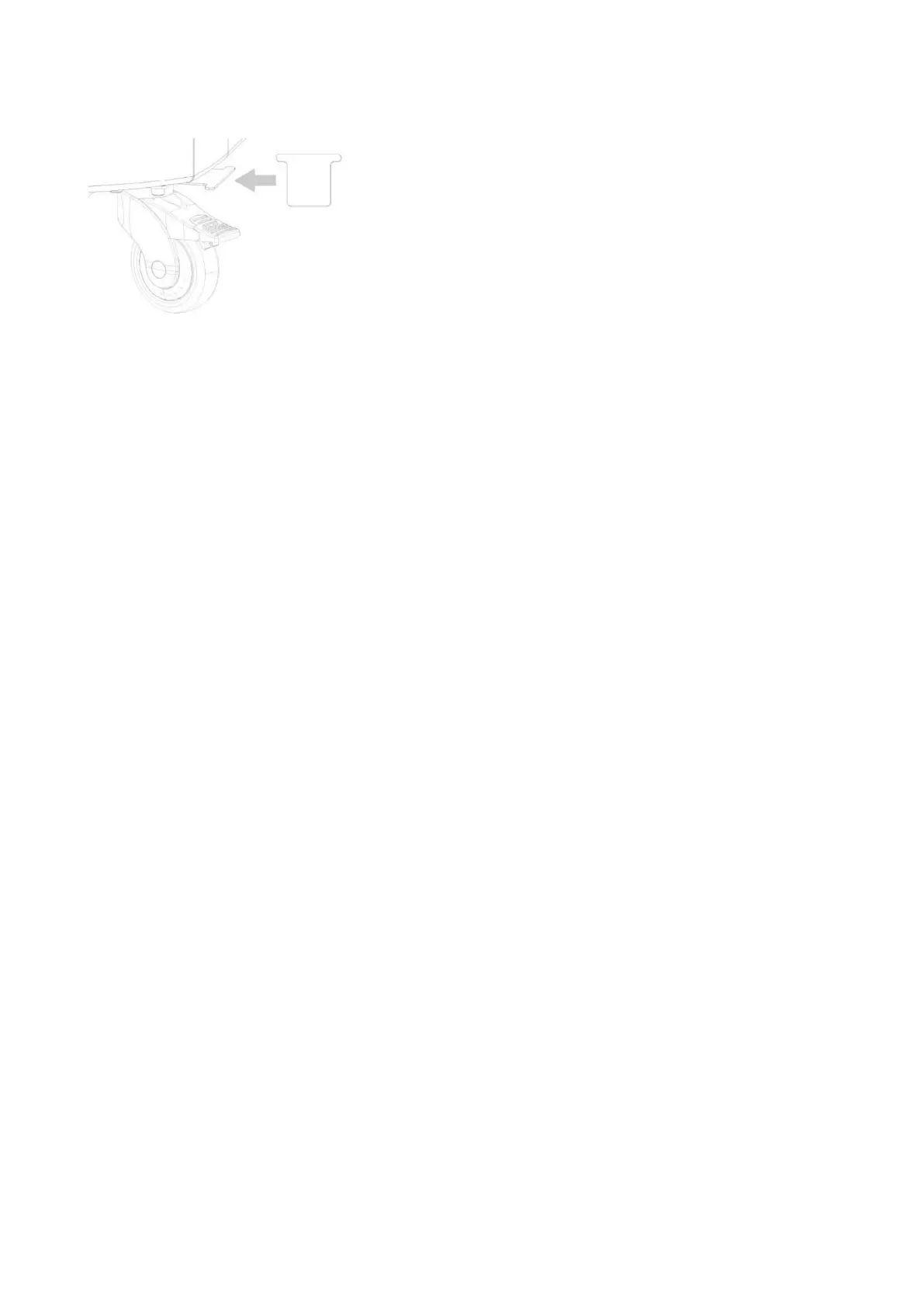

underside of the machine until they reach the stop.
(see fig. on the left)
14. Lower the machine and tight the four locking nuts again.
15. Repeat this process for the remaining castors until all the shims
required have been fitted.
16. Afterwards check that the machine is in a horizontal position.
The air bubbles on both spirit levels have to be inside the two
reading rings.
If the machine is not in a horizontal position, the
shims need to be re-positioned.
17. Afterwards, attach the bottom hood and frame elements back
on to the machine frame.
