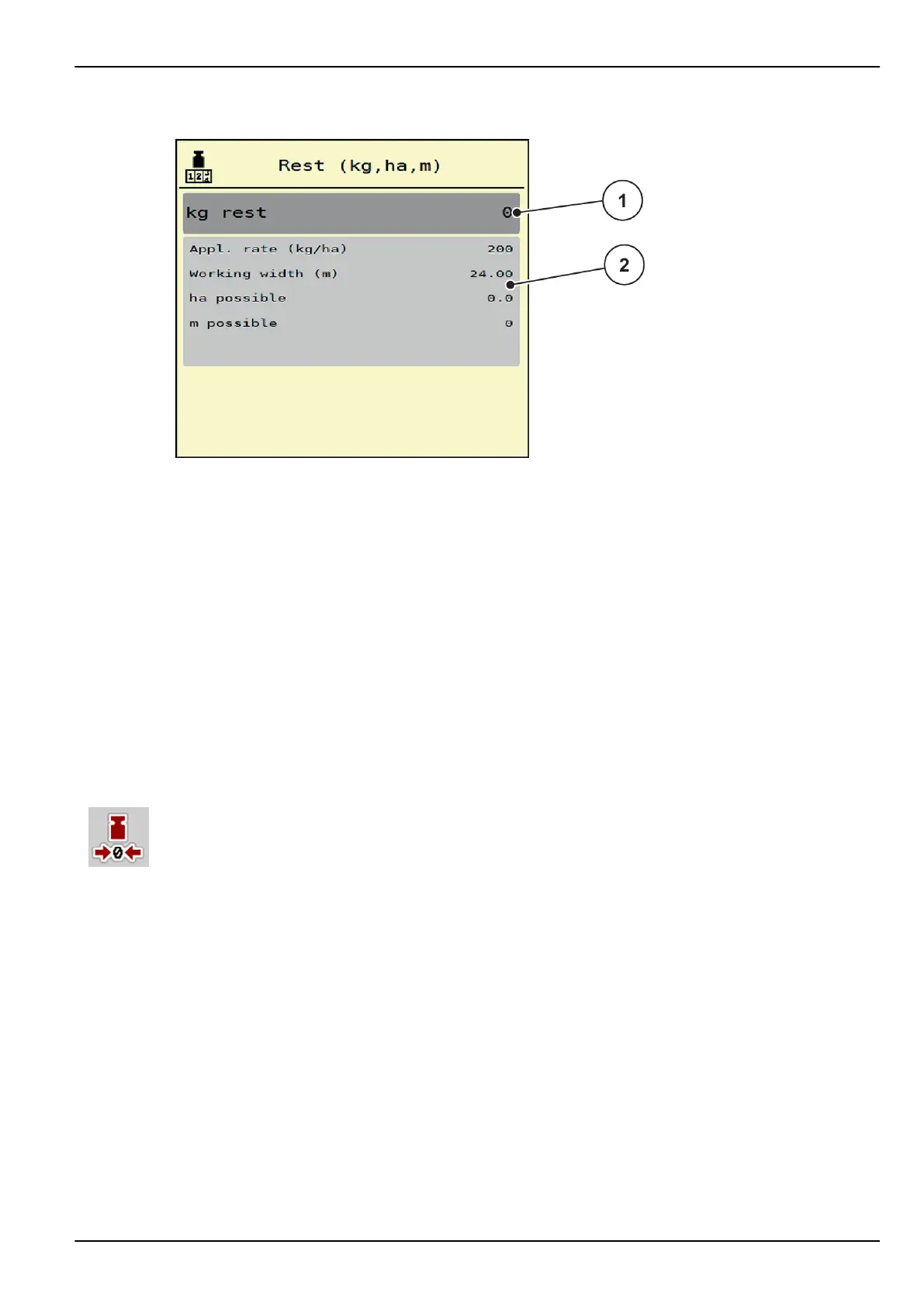

Fig. 28: Menu Rest (kg, ha, m)
[1] Input window Rest (kg) [2] Application rate, Working width, possible
spread area and distance display fields
For machines without weigh cells
u
Fill the hopper.
u
In the Rest (kg) area, enter the total weight of the fertilizer left in the hopper.
The unit calculates the values for the possible spread area and distance.
4.9.3 Zero scales
For weighing spreaders only
In this menu, set the weighing value for the empty hopper to 0 kg.
For taring the scales, the following requirements have to be fulfilled:
• the hopper is empty,
• the machine is at a standstill,
• the PTO is switched off,
• the machine is in a horizontal position and off the ground,
• the tractor is at a standstill.
Zero scales:
u
Access the menu Weighing/Trip count. > Zero scales.
u
Press the Zero scales button.
The weighing value for the empty scales is now set to 0 kg.
4. Operation
AXIS EMC ISOBUS 5902180-h-gb-
63
