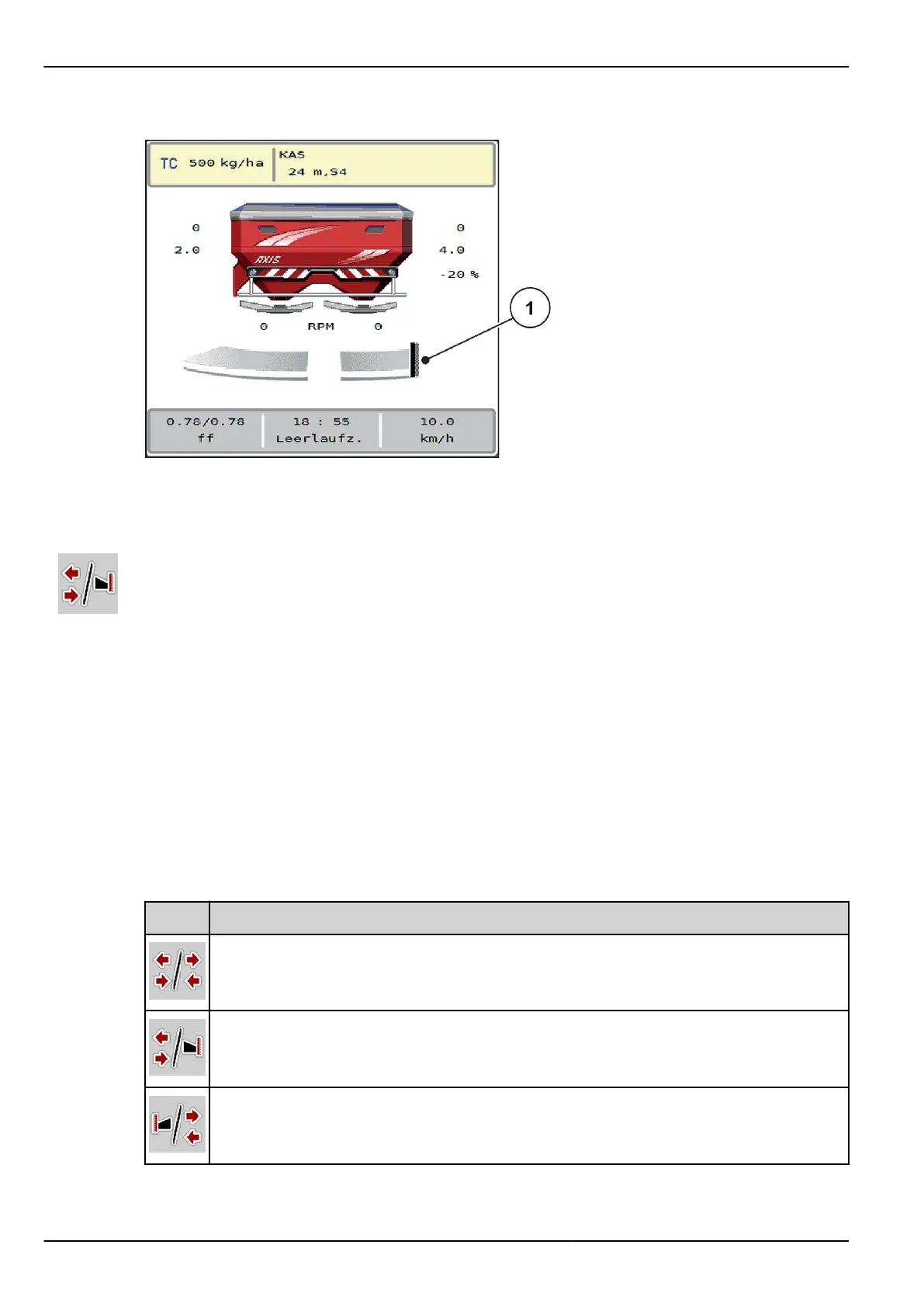

Fig. 38: Display TELIMAT
[1] Icon TELIMAT
By pressing the TELIMAT function key, the electrical TELIMAT unit moves to the limited border
spreading position. During the adjustment, a ? symbol appears on the display and then disappears
once the working position is reached. Additional sensor monitoring of the TELIMAT position is not
necessary since actuator monitoring is integrated.
In the event of blockages of the TELIMAT unit, alarm 23 appears; see Chapter 6.1 Meaning of the
alarm messages.
5.5 Working with sections
5.5.1 Displaying the spreading type in the operating screen
The machine control unit offers 4 different spreading types for the spreading operation of the AXIS
EMC machine. These settings can be configured directly in the working screen. During the spreading
operation, you can switch between the spreading types in order to optimally adapt to the field
requirements.
Button Spreading type
Activate section on both sides
Section on the left, boundary spreading function on the right possible
Section on the right, boundary spreading function on the left possible
