ISOBUS PRODUCT CONTROL NODE CALIBRATION
FEATURE SETTINGS

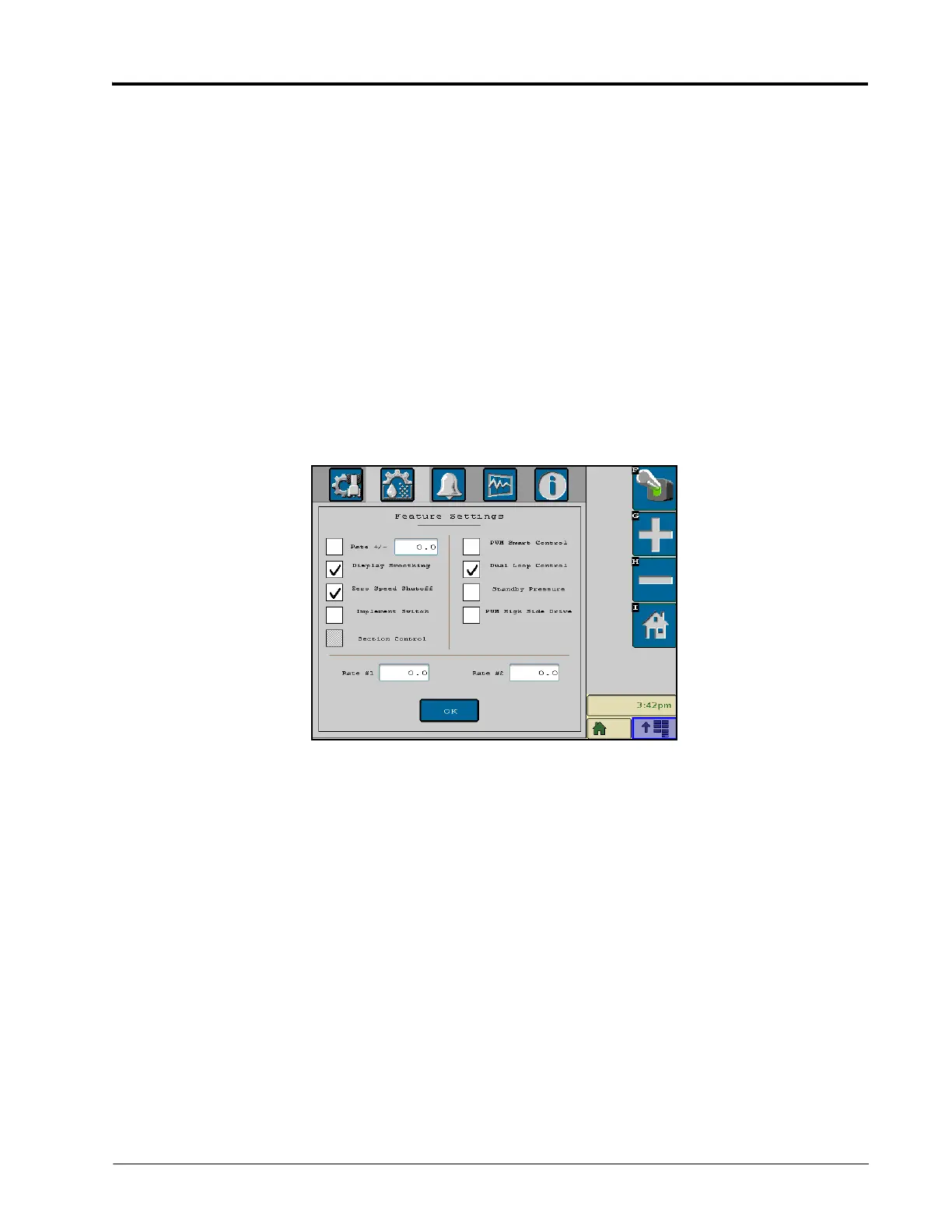

The current status of the following product control home screen settings is displayed to the right side of the
Product Control Calibration settings display:
• Rate Bump (+/-)
• Display Smoothing
• Zero Speed Shutoff
• Implement Switch (NH3 Applicators only)
• Section Control
• PWM Smart Control
• Dual Loop Control
• Standby Pressure
• High Side Drive
• Monitor Section Valve Status (NH3 Applications Only)
• Low Supply Pressure (NH3 Applications Only)
RATE BUMP (+/-)
If this feature is enabled, the rate bump value sets the increment by which the target rate will increase or decrease
when using the rate bump buttons at the right side of the display.
DISPLAY SMOOTHING
Toggle the display smoothing feature to smooth the rate displayed on the product control home screen. With the
feature enabled, as long as the actual rate is within 10% of the actual application rate, the target rate will display as
the actual rate on the display. The actual rate will be displayed if the actual rate does not reach the target rate
dead band (+/-10%) within 10 seconds.
ZERO SPEED SHUTOFF
The zero speed shutoff feature will automatically turn off product application if the vehicle speed drops below 0.7
mph [1.1 km/h] while in automatic mode. To restart the system, cycle the master switch ‘Off’ then back ‘On.’ A
Rate Bump
Rate Bump
