CHAPTER 5
46 ISOBUS Product Control Installation & Operation Manual
SECTION OVERRIDE
NOTE: The override button will only be displayed if an optional Raven ISO Switch Box is not detected on the
ISOBUS. If a switch box is detected, use the switch box to manually control implement sections or to
enable the override feature.

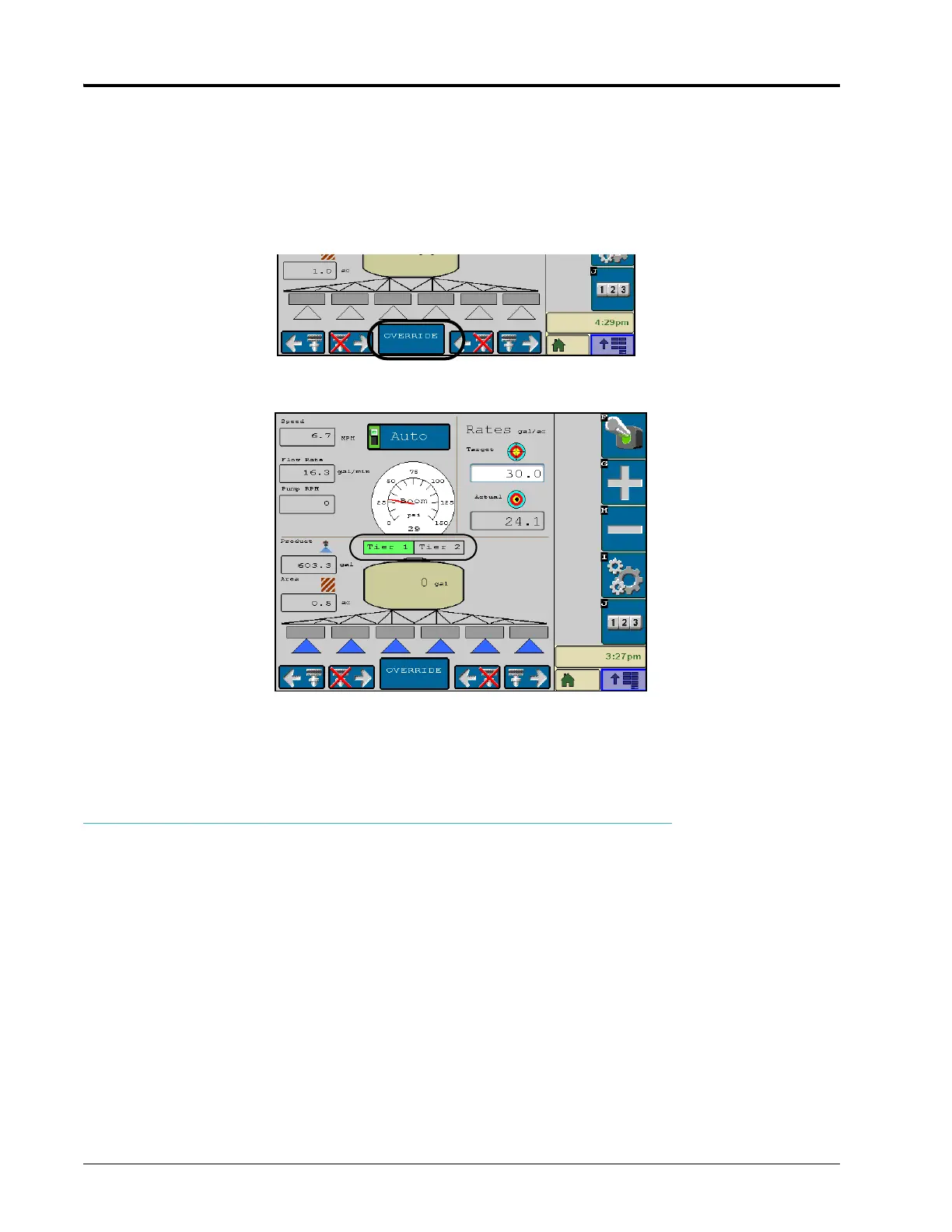

Use the override button at the bottom of the Product Control Home screen to override all sections on for 5
seconds. After five seconds, the system will resume automatic control operations base upon previous coverage.
TIERED BOOM STATUS DISPLAY
Above the tank volume display, a tiered boom status display will indicate tier 1 and tier 2 status. The tier stats will
be displayed only if the tiered boom settings were entered. Refer to the Tiered Boom Settings section on page 22
for further information on setting up tiered booms.
TALLY REGISTERS
The Raven ISOBUS system is capable of tracking two separate registers to keep records for the area covered and
volume applied to a field or over a period of time. The following tallies may be reset or recalibrated by the
operator at any time:
Field Area
Field Volume/Weight
Total Area
