CHAPTER 5

38 ISOBUS Product Control Installation & Operation Manual

QUICK ACCESS SOFTKEYS

The quick access softkeys allows the operator to quickly access frequently used functions as well as the calibration

and configuration screens.

MASTER SWITCH

The status of the master switch is displayed in the quick access bar. Select the switch status indicator to toggle the

master switch.

NOTE: Both the remote master (foot switch) and the master switch indicator must be toggled on to apply

product. See the Remote Master Status section on page 39 for more information on the remote

master switch.

RATE INCREASE/DECREASE BUTTONS

Use the rate increase and decrease buttons to adjust the target or actual application rate based on the control

mode (auto/manual) currently selected.

NOTE: When Rate 1 and Rate 2 are set as described in Rate Bump (+/-) section on page 29, the increase/

decrease (+/-) buttons are replaced with Rate 1/Rate 2 buttons.

TOOLS ICON

Select the tools icon to access the calibration screens. See Chapter 4, ISOBUS Product Control Node Calibration,

for more information.

TALL Y RE GI ST ER S

Select the tally registers icon to view the volume and area registers. See the Tally Registers section on page 46 for

more information on the tally registers.

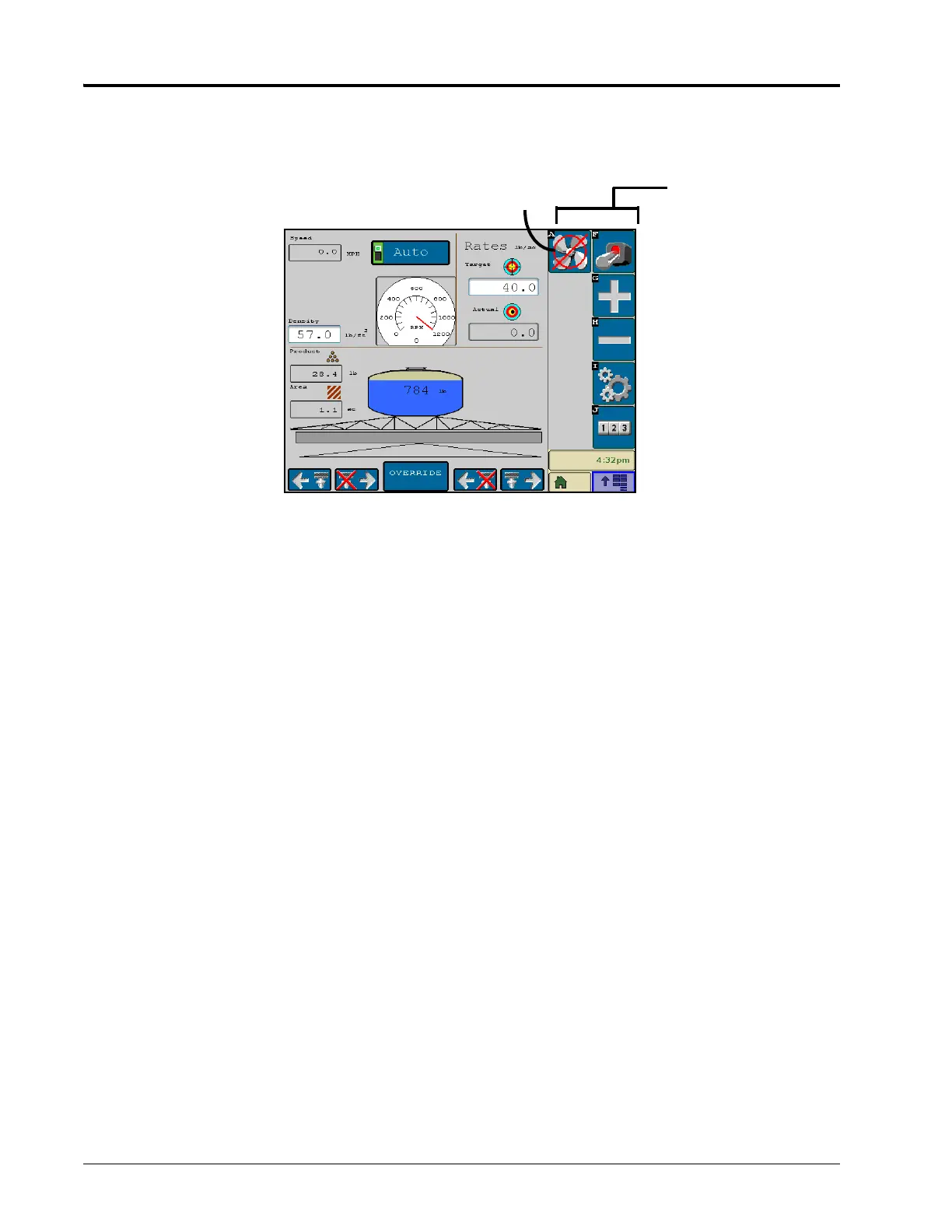

Quick Access

Softkeys

Master

Switch

Rate Increase

Button

Rate Decrease

Button

Tools

Icon

Tally

Registers

Fan Switch or

Boost Pump
