SECTION SETUP
Select the “Section Setup” button to reconfigure the number and width of programmed sections.

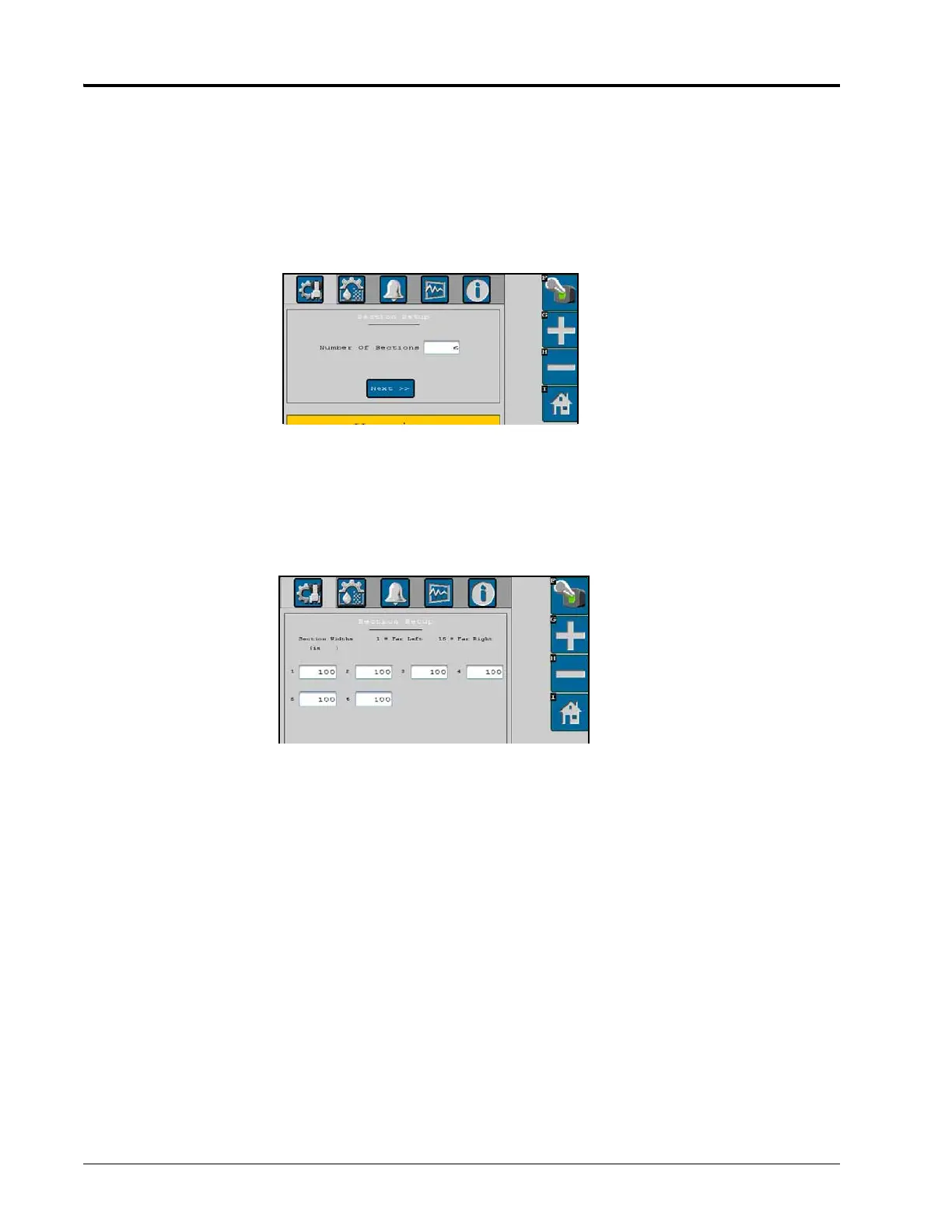

NUMBER OF SECTIONS
The first screen displayed in the section setup displays the current number of sections. Select the value displayed
in the box and enter the number of sections configured on the implement or select Next >> to proceed.
NOTE: Contact a local Raven dealer for appropriate cabling for specific applications and boom
configurations.
SECTION WIDTHS
The next screen in the section setup displays the current section widths for each section. Select the section width
value to enter the section width.
NOTE: Section measurements should be programmed into the VT display using the same units (e.g. inches,
centimeters) selected in the options or settings on the VT display. Refer to the operation manual for
the specific VT display to configure the display units.
See Section Widths section on page 59, for detailed calculation of the section width values.
When finished programming section widths, select the “OK” button to return to the Implement settings display.
NOTE: If the system contains an optional Raven ISO switch box, press Next >> to proceed.
