CHAPTER
4
Manual No. 016-0171-362 Rev. F 13
CHAPTER 4
ISOBUS PRODUCT CONTROL
NODE CALIBRATION
Before the Raven ISOBUS product control node may be used to control product application, the node must be
properly calibrated for the type of application and the specific implement being used. The following calibration
values are required to accurately control product application:
Total width of implement
Number of sections and section widths
Control type
Meter cal or spreader constant and product density
Valve type and cal
Rate cal
NOTE: Refer to the VT display operation manual for other necessary setup or calibration required before
operating the Raven ISOBUS product control node.
TO ACCESS THE SETTINGS DISPLAYS:
1. Start-up the VT display. Allow the display to power up and initiate the ISOBUS system.
NOTE: If properly connected and powered, the Raven ISOBUS product control node will be automatically
detected by the VT display. If the product control node is not detected by your display terminal,
troubleshoot the node and restart the system. If the node is still not found, refer to Chapter 6,
Troubleshooting, and use the diagnostic LED’s on the node to diagnose the problem.

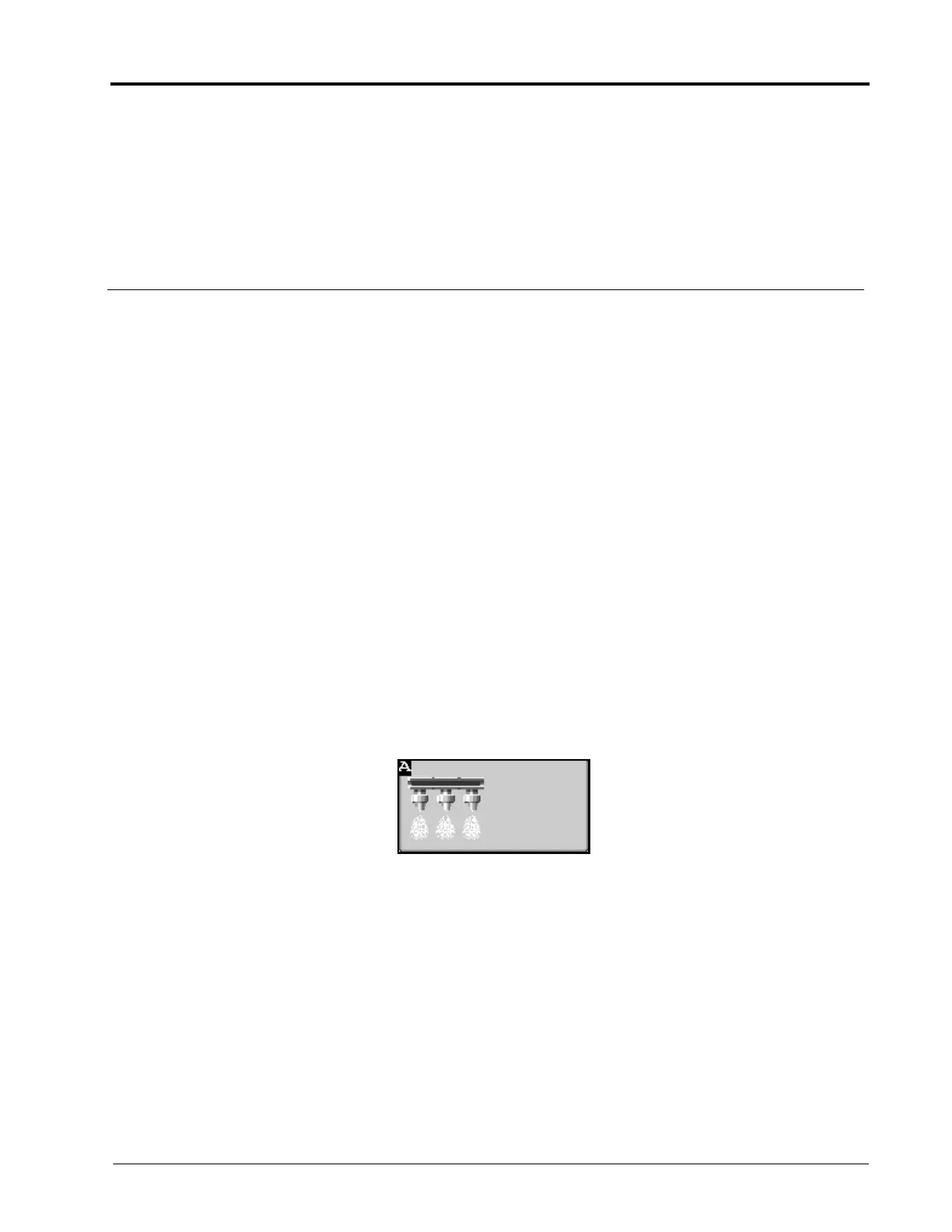

2. Once the product control node is detected, the product control icon will be displayed in the VT display menu.
Select the icon to access the main product application screen.
