CHAPTER 4
22 ISOBUS Product Control Installation & Operation Manual

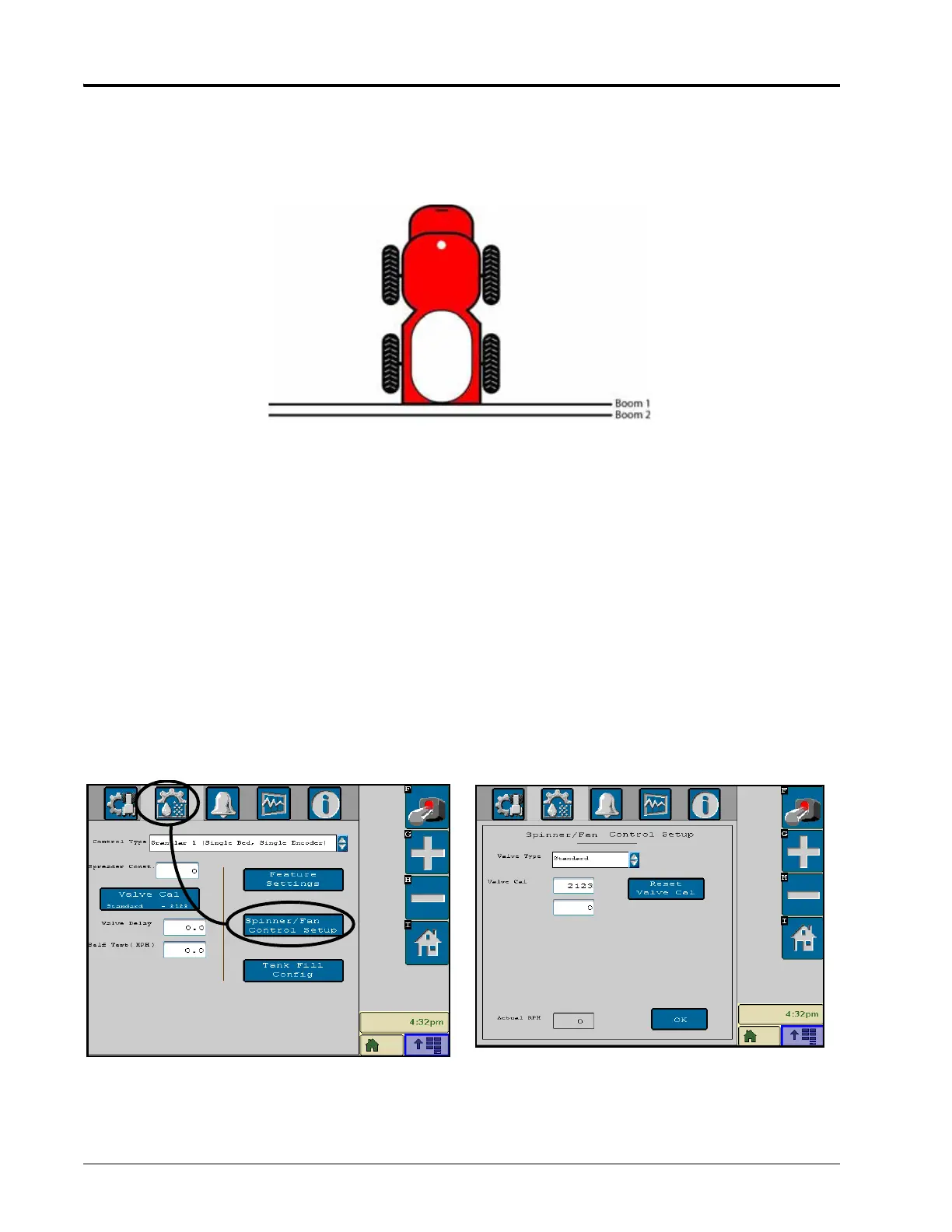

TIERED BOOM SETTINGS
A tiered boom configuration has two or more booms stacked - one directly in front of the other - and may or may
not have different sets of nozzles capable of applying different rates.
NOTE: Specialized plumbing, cabling, and a relay box are required to utilize a tiered boom configuration.
Generally, sprayers are not set up for this feature from the factory.
Refer to Tiered Boom Settings section on page 60 for more information on calculating the tiered boom settings.
SPINNER/FAN CONTROL SETUP
NOTE: A meter cal value is required for either spinner speed control or monitoring spinner speed during
field operations. Refer to the following procedure to enter a meter cal on the Spinner/Fan Control
Setup screen for either spinner control or monitoring operations.
In a granular control system, the RPM of a fan or spinner may be monitored or controlled via the ISOBUS product
control system. To access the Spinner/Fan Control Setup screen from the Raven ISOBUS main screen:
1. Select the Tools Menu icon from the quick access softkeys.
2. Select the Product Control Calibration icon at the top of the screen.
3. Select the ‘Spinner/Fan Control Setup’ button. The Spinner/Fan Control Setup screen will be displayed.
