ISOBUS PRODUCT CONTROL NODE CALIBRATION
IMPLEMENT CALIBRATION TAB
The following settings may be viewed or modified when the implement category is selected:
• Applicator type
• Total w idth
• Number of sections
• Section widths
• Switch mapping (optional)
APPLICATOR TYPE
Select the “Applicator Type” drop down menu to change the type of applicator being used with the ISOBUS
product control system. Select between the following configurations:
• Sprayer - For liquid application systems, select the sprayer option.
• Spreader - Spinner - Select the spinner option for granular applicators using a spinner.
• Spreader - Air - Select the air option for air driven application systems.
• NH3 Applicator - Select the NH3 applicator option for an anhydrous tool bar. When this is opened
check boxes for HP Boost or HP Plus will be available. Choose one of the control modes based on
the installed NH3 configuration.
NOTE: When operating with the Raven AccuFlow HP system, additional settings will be required to control
the boost pump. Refer to the HP Pressure or HP Plus Control Setup section on page 23 and refer to
the AccuFlow, AccuFlow HP, and AccuFlow HP Plus Installation and Operation Manual for details on
boost pump settings.

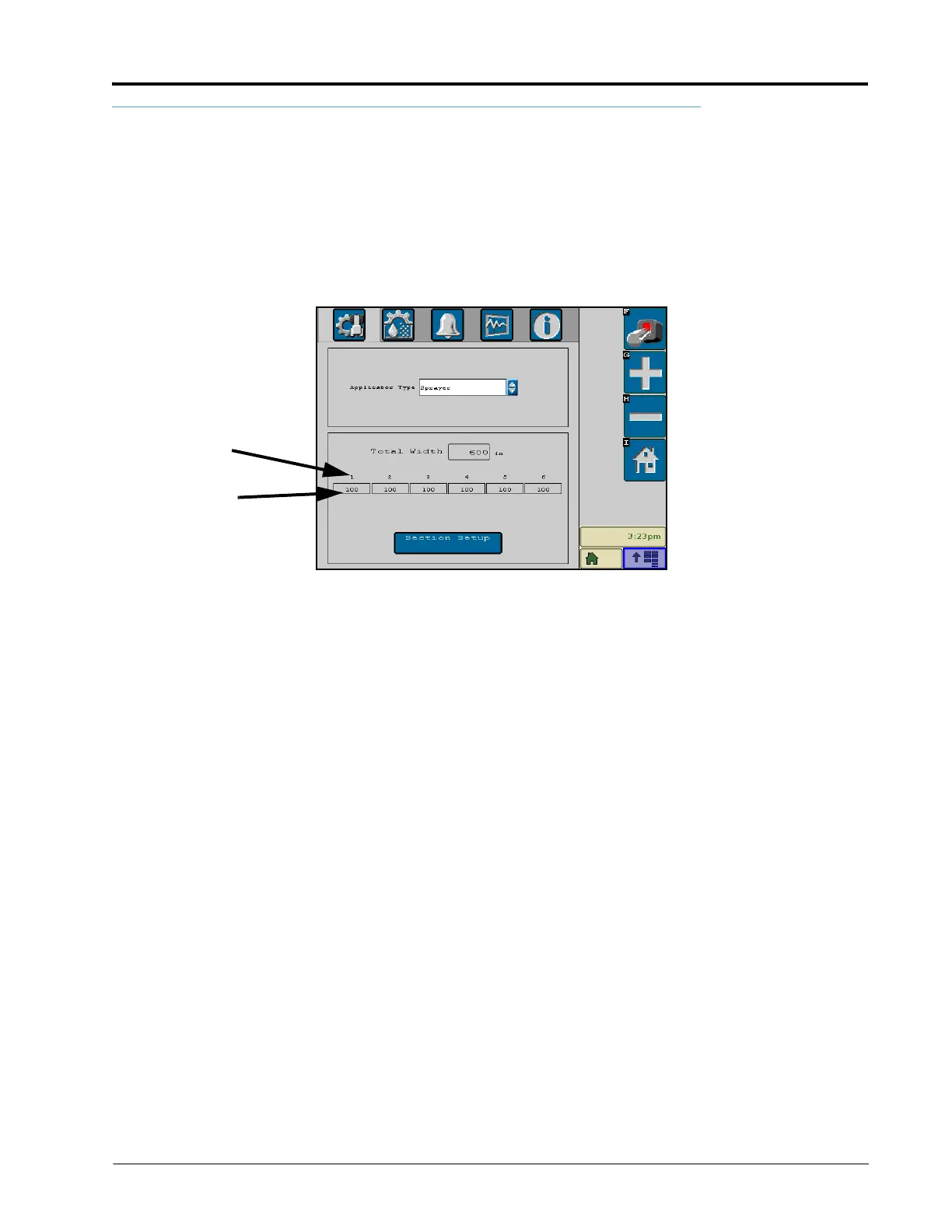

TOTAL WIDTH DISPLAY
The total width value displays the sum of the currently programmed section widths. Select the “Section Setup”
button to edit section widths and change the total width for a specific implement.
Section
Number
Section
Width
To Next Page
