Chapter 1: System Integration -15

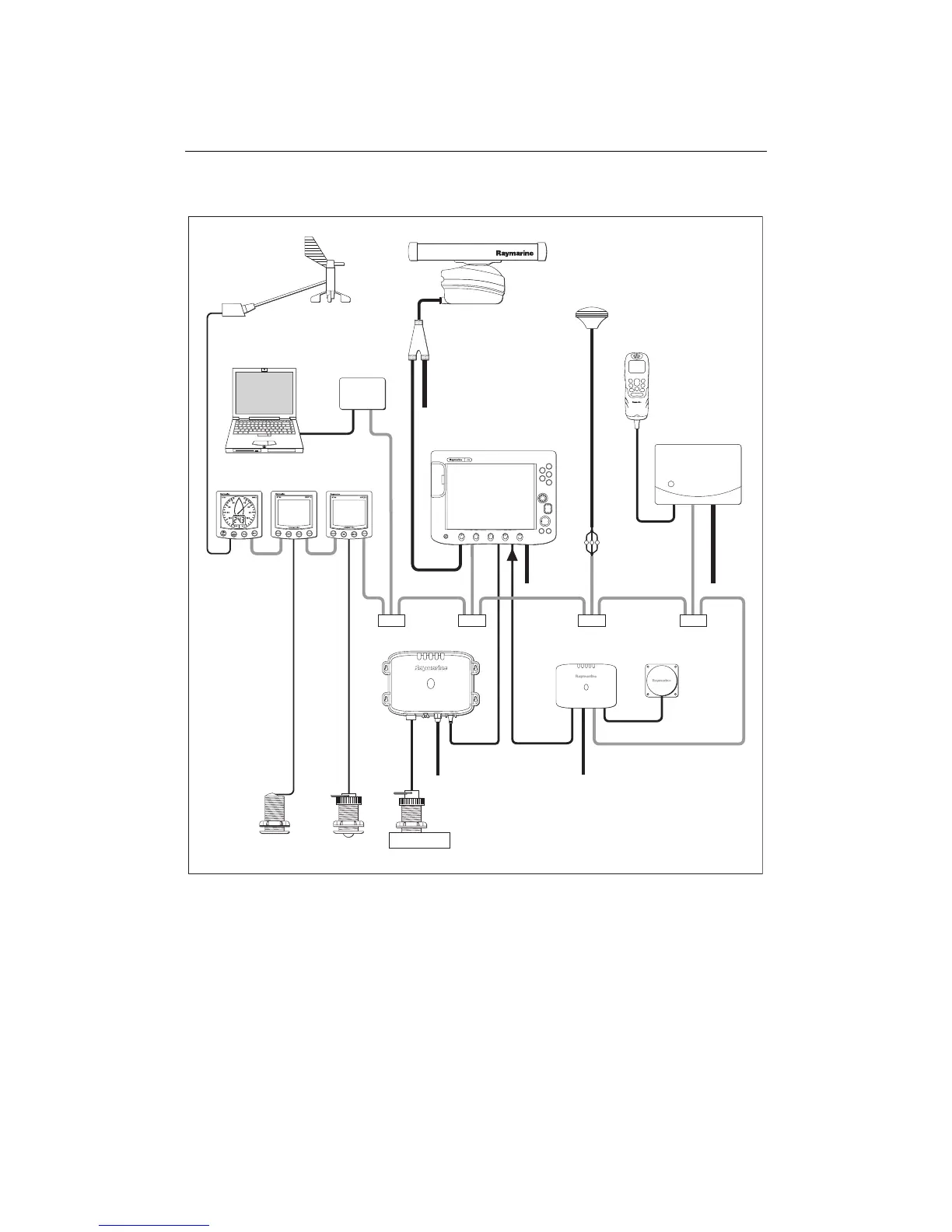

Integrated system 2
# #
In this system:
• PC displays instrument information - but does not share route and waypoint
information.
• Smart heading sensor provides fast heading data for MARPA and radar overlay.
• Autopilot provides power for SeaTalk.
RANGE
CANCELOK
PAGE
ACTIVE
WPTS/
MOB
MENU
DATA
IN
OUT
MENU
CH
OK
16/9
HI/LO
SCAN WATCH
SQ
RAY240
WX
Power
IN
Power
IN
Fast
Heading Sensor Compass
D6623-1
Wind Transducer
Open Array
Wind
display
Speed
display
Depth
display
DSM 250
C120
SeaTalk
SeaTalk
NMEA
RS232
Interface box
RS232
Depth
Transducer
Speed
Transducer
Transducer
Power
IN
Power
IN
Base
Transceiver Unit
Power
IN
GPS
VHF/DSC
Radio
