Adjusting the bearing alignment
To adjust the bearing alignment:
1. Press MENU. The Set Up menu is displayed.
2. Use the trackpad up /down to highlight RADAR SET UP.
3. Use trackpad right to display the RADAR SET UP menu.
4. Use the trackpad up/down to highlight BEARING ADJUSTMENT. The menu is
removed from the screen, the BEARING ADJUSTMENT softkey is displayed.
5. Press BEARING ADJUSTMENT softkey. Then either:
6. If the boat is moored, use the rotary control to place the selected target under the
EBL, or,
7. If the boat is under way, use the rotary control to place the selected target under the
SHM.
8. Press
OK. The picture will be shown with the bearing alignment adjusted.
Display timing
The display timing can be affected by the length of cable used to connect the scanner
to your C-Series Display. This will in turn affect the short range accuracy of the radar. a
symptom of incorrect timing is that bridges or piers shown on the picture appear to be
bowed.
To check the display timing:
1. Use the
RANGE button to select the 1/8 nm scale.

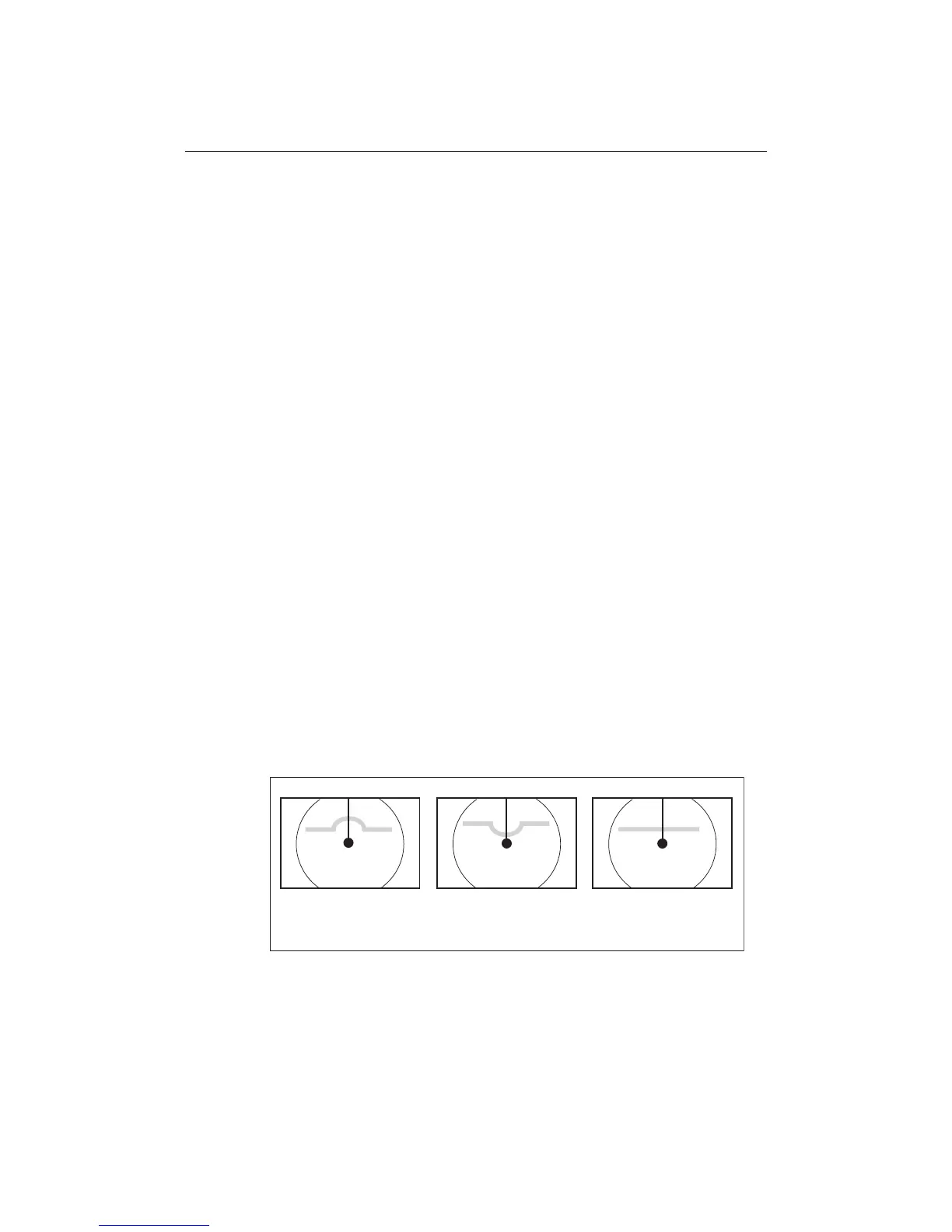

2. On the radar picture locate a straight dock, seawall, or bridge that is facing your
boat. If the image is bent or bowed as shown below, the the display timing will
need adjustment.
Own ship
Own ship
Timing early
Timing late
Normal
Own ship
D6625-1
