Chapter 2: Installation -37

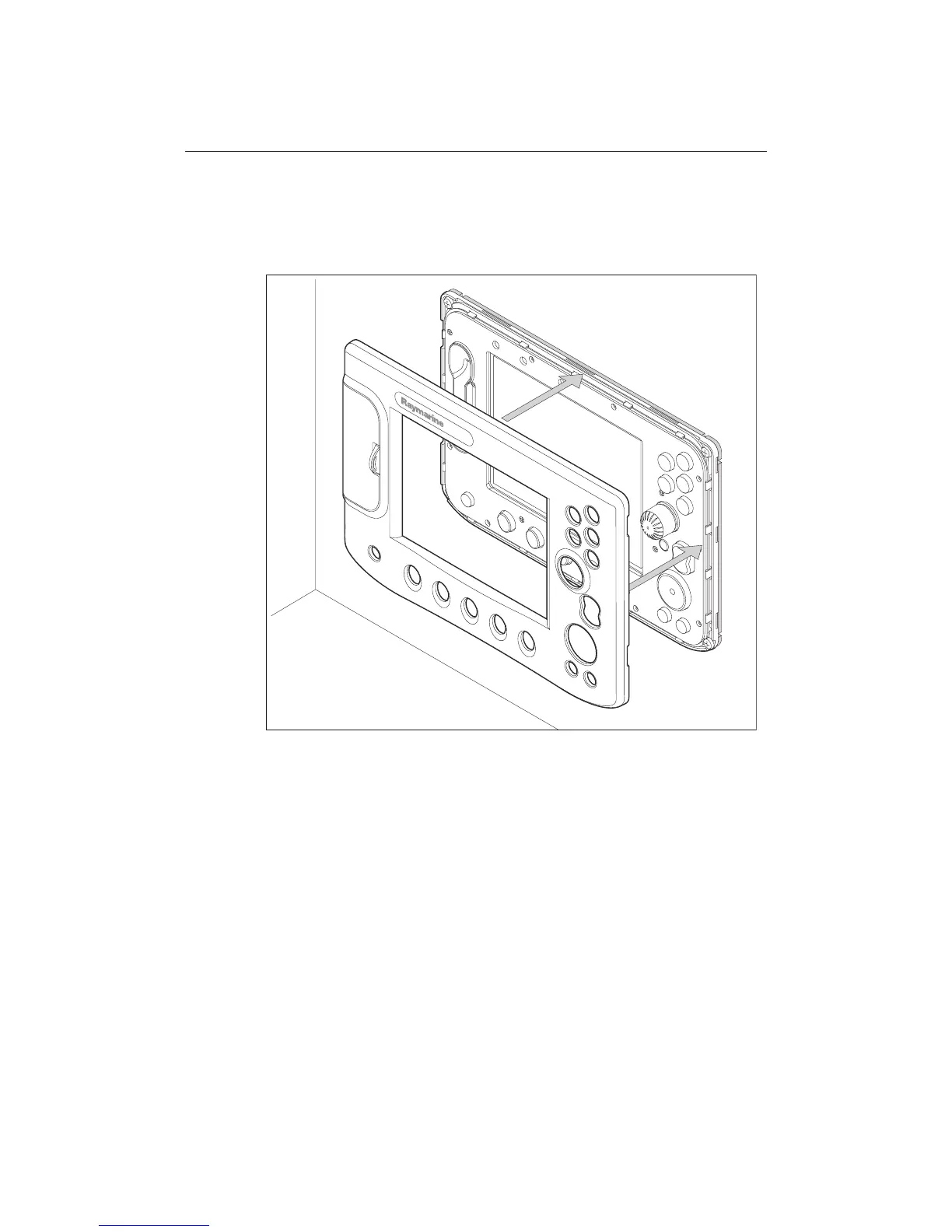

How is the front bezel attached to the display?
After you have installed the C-Series Display in the required position, you should
attach the front bezel as follows:
1. Carefully lift one edge of the screen protection film, so that it is accessible for
removing when unit installation is complete.
2. Place the bezel over the front of the C-Series Display, ensuring that locking lugs
located at the bottom edge of the bezel are latched into position.
3. Ensure that the control buttons pass through their respective openings.
4. Apply firm, but even pressure to the edges of the bezel, working from the sides
upwards and then along the top edge, to ensure that it clips securely into position.
5. Check that all control buttons are free to operate.
