-16 C-Series Displays Installation Manual

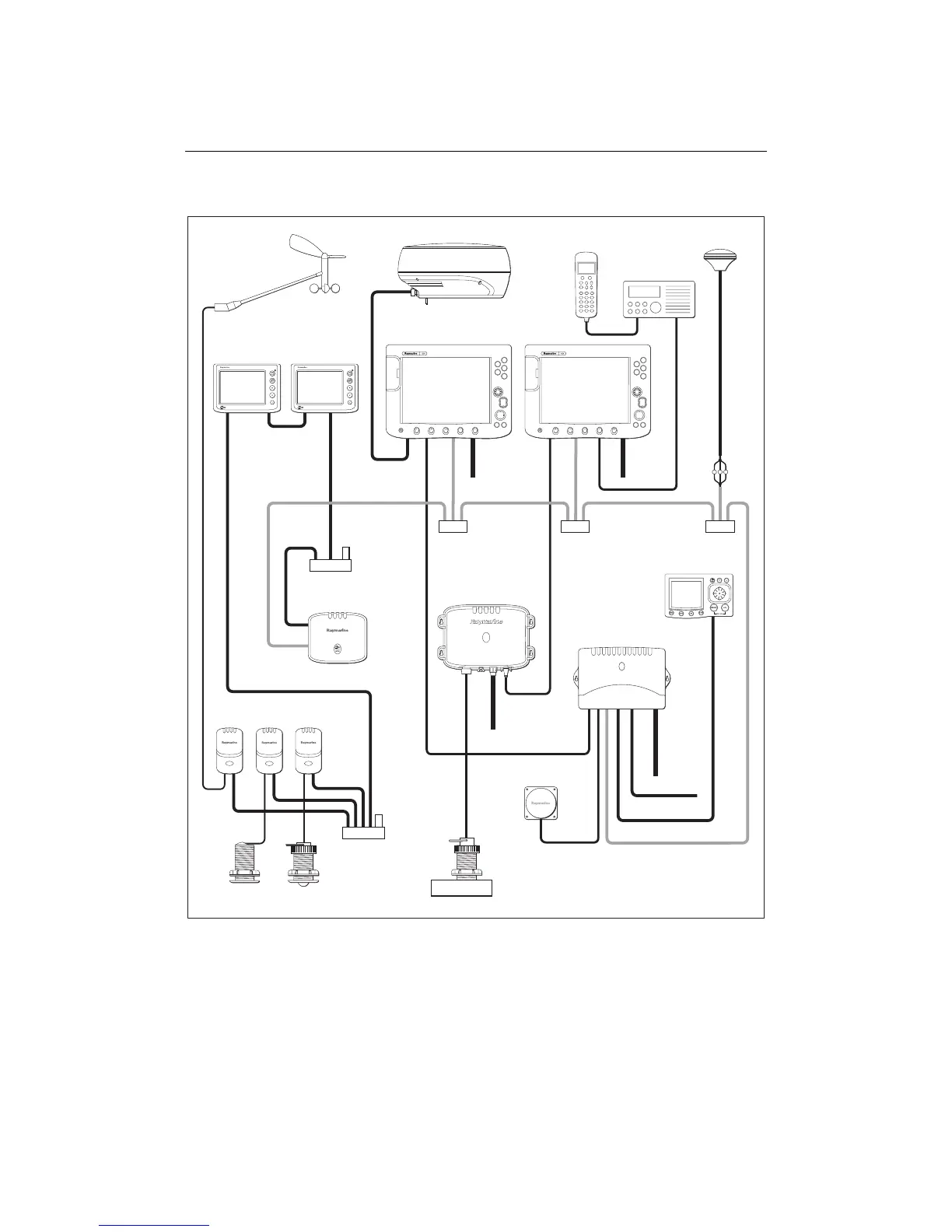

Integrated system 3
In this system:
• The C-Series display will not share chart, radar or fishfinder data.
• Course computer with rate gyro will provide fast heading for radar overlay and
MARPA.
RANGE
CANCELOK
PAGE
ACTIVE
WPTS/
MOB
MENU
DATA
IN
OUT
RANGE
CANCELOK
PAGE
ACTIVE
WPTS/
MOB
MENU
DATA
IN
OUT
Power
IN
Power
IN
NMEA 0183
NMEA 0183
NMEA 0183
Power
IN
Power
IN
To Drive Unit
D6624-1
Terminator
Wind Transducer
Radome
Digital display Digital display
DSM 250
Course Computer
ST8001
Data
Processing Unit
GPS
VHF/DSC
Radio
5-way connector
and terminator
5-way
connector
SeaTALK
2
SeaTALK
2
SeaTalk
SeaTalk
Depth
Transducer
Wind
Pod
Depth
Pod
Speed
Pod
Speed
Transducer
Transducer
Compass
