Chapter 2: Installation -25
2.3 What size is the display unit?

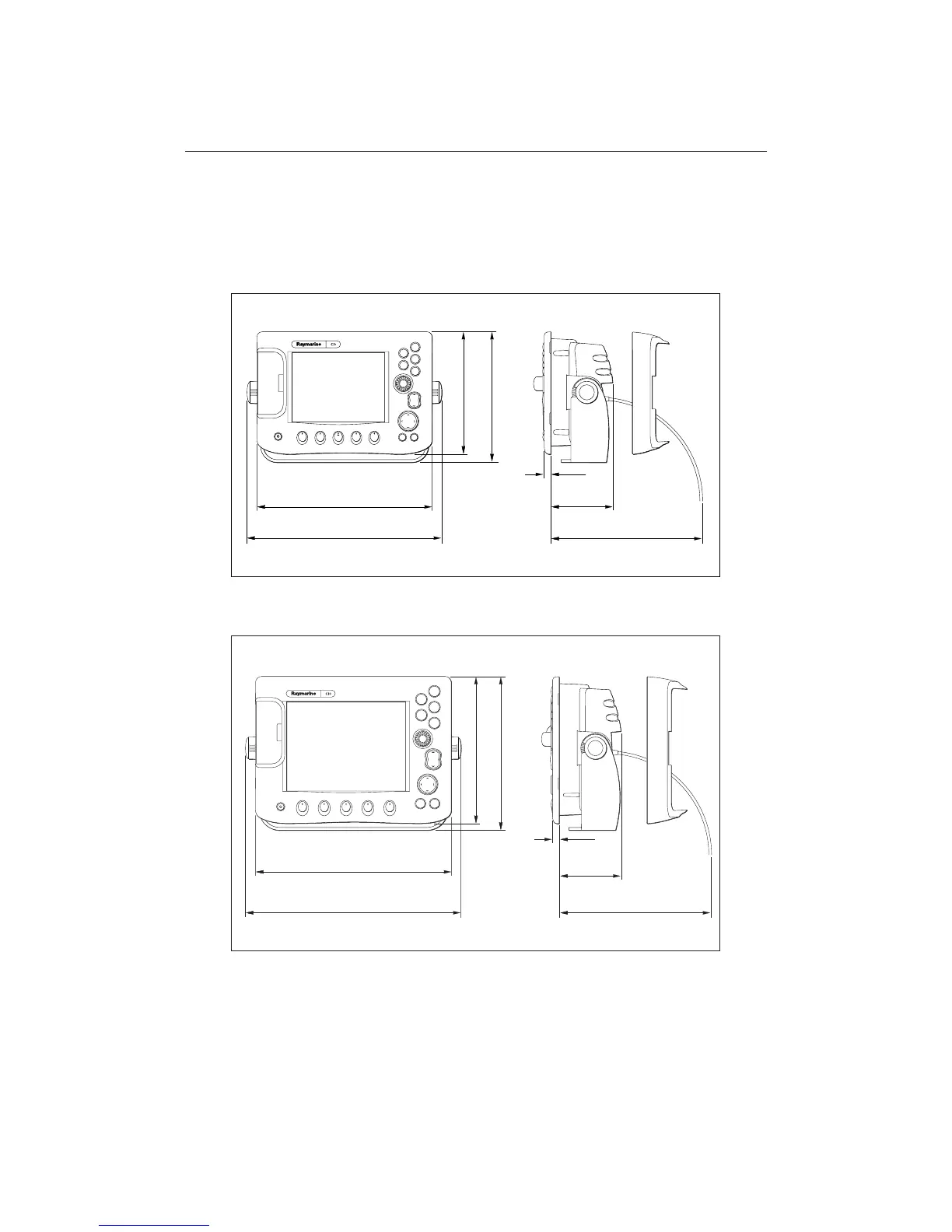

The dimensions for your C-Series display are:
C70 Display
C80 Display
PAGE
ACTIVE
WPTS
MOB
MENU
DATA
CANCEL
OK
RANGE
IN
OUT
253 mm (10 in)
282 mm (11.1 in)
9.5 mm
(0.375 in)
89.4 mm
(3.5 in)
220 mm (8.66 in)
plug clearance
177 mm (6.96 in) 189 mm (7.44 in)
D6612-1
RANGE
CANCELOK
IN
OUT
PAGE
ACTIVE
WPTS
MOB
MENU
DATA
283 mm (11.14 in)
312 mm (12.3 in)
9.5 mm
(0.375 in)
89.3 mm
(3.5 in)
220 mm (8.66 in)
plug clearance
212.5 mm (8.4 in)
222 mm (8.75 in)
D6613-1
