-28 C-Series Displays Installation Manual
Power supply
• The C-Series Display is intended for use on boats’ DC power systems rated at 12 V
or 24 V. However the operating voltage of the radar and display is limited by the
scanner which is being used as follows:
12 V and 24 V systems Radome scanner unit
12 V or 24 V systems 4 kW Open array scanner
24 V system only 10 kW Open array scanner
The power connection should be made at either the output of the
battery isolating switch, or at a DC power distribution panel.
Raymarine recommends that power is fed directly to the display and
scanner via its own dedicated cable system and MUST be protected by
a thermal circuit breaker or fuse, installed close to the power
connection.
SeaTalk cable
The SeaTalk cable is supplied with insulated tails. These should be connected to
your GPS using the Scotchlock connectors supplied.
How do I use the Scotchlock connectors?
The Scotchlock connectors are used to make the connections between the cables
easy and secure, without removing insulation from cable tails.

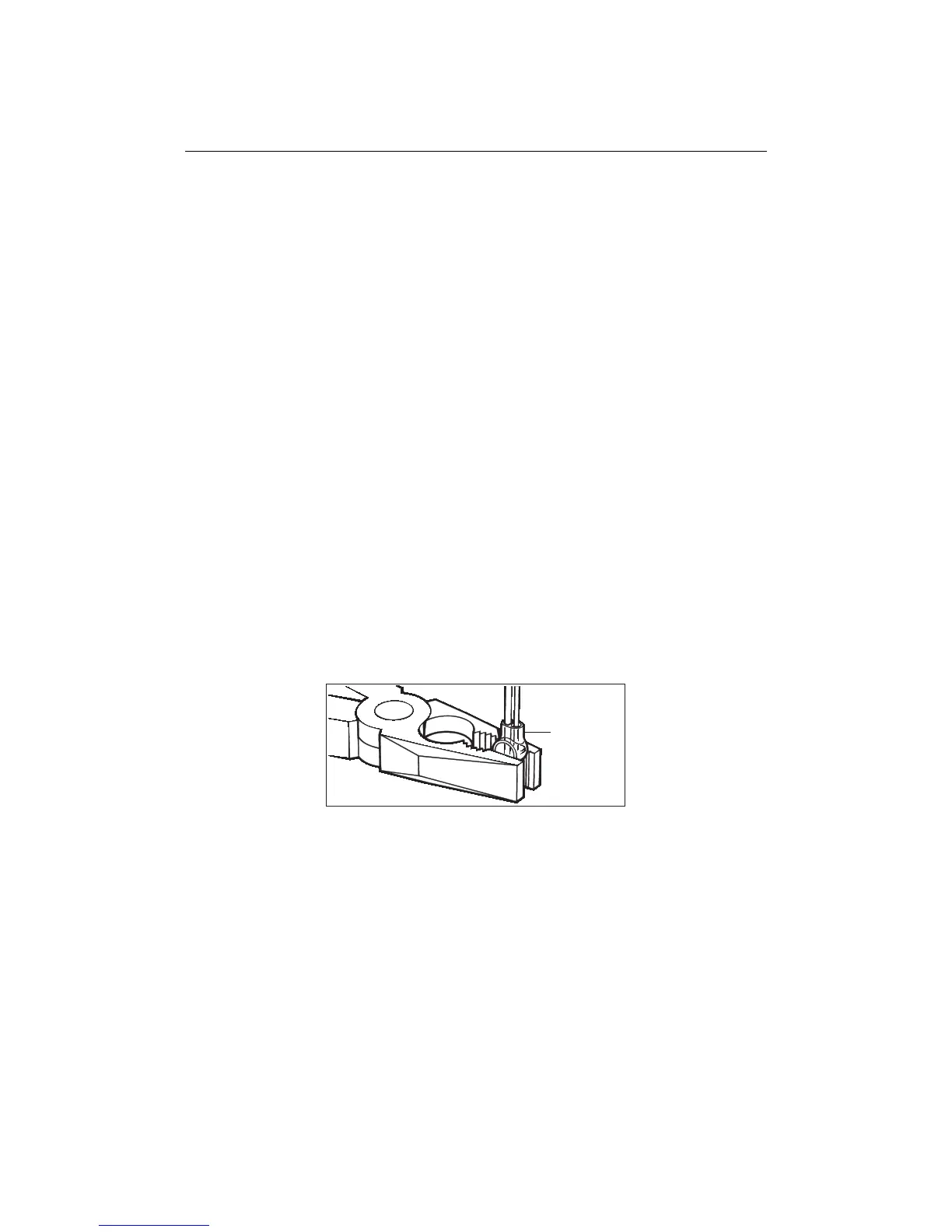

To use the Scotchlock connectors:
1. Place the wires to be joined into the connectors, ensuring correct polarity and that
the wires are pushed fully home.
2. Using a pair of pliers, crimp the connector bulb together.
3. Check that a secure connection has been made.
4. Ensure that the cables are secured in a suitable position to prevent the join being
placed under strain.
Scotchlock
connector
D6615_1
