Chapter 2: Installation -31

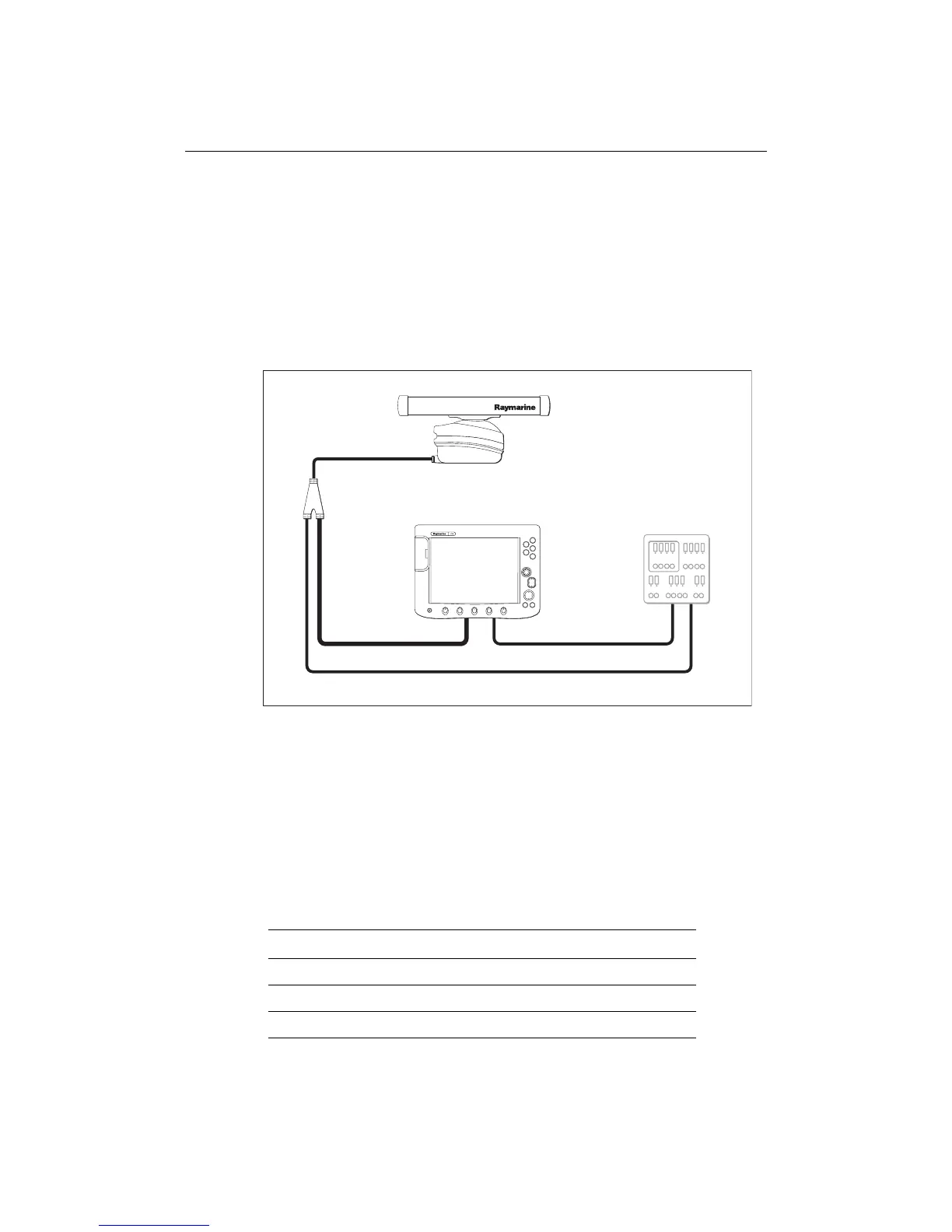

Open array
If you are using an open array, this cannot be powered through the display. You will
need to purchase a split pedestal cable or open array package and connect the
array and display as shown:
Note:
The power supply for both the display and the open array must be of the same
voltage and from a common supply source. e.g the same battery or power breaker.
The split pedestal cables are available from your local Raymarine dealer as follows:
Part No Description
E05017 25m Split pedestal cable
E05018 15m Split pedestal cable
E05019 Pedestal adaptor cable
RANGE
CANCELOK
PAGE
ACTIVE
WPTS/
MOB
MENU
DATA
IN
OUT
D6618-1
Open Array
Boats DC
Power Supply
C-Series Display
Power to display
Power to open array
Split pedestal cable
